Juniper

MX960BASE-AC

Sale
Regular price $21,919.00

Tax included.

MX960BASE-AC Overview

Multi-brands of Routers Meet Various Needs of Small to Large Business.

Choose top branded routers to accelerate your business, including Cisco, Huawei, D-Link, etc.

• Enterprise Integrated Branch Routers • Service Provider Edge Routers • Small Business Routers

Check Now >

MX960BASE-AC is a Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE. The SDN-enabled MX960 5G Universal Routing Platform has been proven in the world’s largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.

Quick Spec

Table 1 shows the quick spec.

SKU	MX960BASE-AC
Description	Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE
System capacity	Up to 12 Tbps
Switch fabric capacity per slot	Up to 1.5 Tbps
DPCs and/or MPCs per chassis	Up to 11
Chassis per rack	3
Dimensions (W x H x D)	17.37 x 27.75 x 28 in (total depth includes standard cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm)
Mounting	Front or center
Power options	AC: 200-240 V AC

Product Details

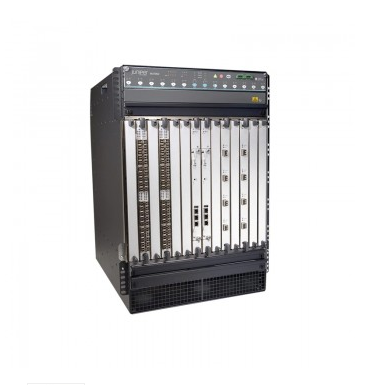

Figure 1 shows the front panel of MX960 chassis with installed modules. These modules should be ordered separately.

Note:

①	Craft Interface	⑦	Air Intake
②	SCB0	⑧	Lower Fan Tray
③	SCB1	⑨	Air Filter Tray
④	ESD Point	⑩	DPC Slots
⑤	DPC Slots	⑪	Upper Fan Tray
⑥	SCB2 or DPC6

Figure 2 shows the Rear View of a Fully Configured AC-Powered MX960 Router Chassis.

Juniper MX960 Rear View

Note:

①	Air Exhaust
②	AC Power Supplies
③	Power Supply Ejectors

Compare to Similar Items

Table 2 shows the comparison.

SKU	MX204	MX960BASE-AC
Description	Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos	Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE
System Capacity	400 Gbps	Up to 12 Tbps
Switch Fabric Capacity per Slot	N/A	Up to 1.5 Tbps
DPCs and/or MPCs per Chassis	Built-in	Up to 11
Chassis per Rack	42	3

Get More Information

Do you have any question about the MX960BASE-AC?

MX960BASE-AC Specification

MX960BASE-AC Specification
Description	Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE
System capacity	Up to 12 Tbps
Switch fabric capacity per slot	Up to 1.5 Tbps
DPCs and/or MPCs per chassis	Up to 11
Chassis per rack	3
Dimensions (W x H x D)	17.37 x 27.75 x 28 in (total depth includes standard cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm)
Mounting	Front or center
Power options	200 to 240 V AC
Operating temperature	0–104°F (0–40°C) at 6000 feet
Humidity	5 to 90 percent non-condensing
Altitude	No performance degradation to 13,000 ft/4,000 m
Default memory	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD
Number of cores	6 cores
Typical power draw (AC)	6520 W
