MX480BASE-AC Overview
MX480BASE-AC is a Juniper 8 slot MX480 AC base chassis, 1 fan tray, 3 AC power supplies, 1 SCB, 1 RE. The SDN-enabled MX480 5G Universal Routing Platform delivers high performance, reliability, and scalability for service provider and cloud applications, enabling the delivery of advanced business and residential applications and services. At just eight rack units (8 U), the MX480 offers up to 9 Tbps of system capacity in support of high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, and SONET/SDH, ATM, and PDH connectivity.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
MX480BASE-AC |
|
Description |
Juniper 8 slot MX480 AC base chassis, 1 fan tray, 3 AC power supplies, 1 SCB, 1 RE |
|
System capacity |
Up to 9 Tbps |
|
Switch fabric capacity per slot |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per chassis |
6 |
|
Chassis per rack |
6 |
|
Dimensions (W x H x D) |
17.45 x 14 x 27.75 in (total depth) includes standard cable manager measurements) (44.3 x 35.6 x 70.5 cm) |
|
Mounting |
Front or center |
|
Power options |
100-240 VAC |
Product Details

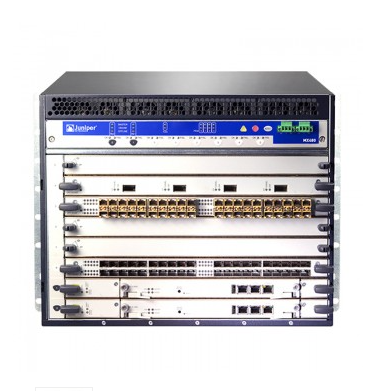

Figure 1 shows the front panel of MX480 chassis with installed modules. These modules should be ordered separately.
Note:
|
① |
Craft Interface Panel |
⑥ |
DPC1 |
|
② |
DPC5 |
⑦ |
DPC0 |
|
③ |
DPC4 |
⑧ |
SCB1 |
|
④ |
DPC3 |
⑨ |
SCB0 |
|
⑤ |
DPC2 |
|
|
Figure 2 shows the Rear View of a Fully Configured AC-Powered Router Chassis.
Note:
|
① |
AC Power Supplies |
|
② |
Protective Earthing |
|
③ |
Fan Tray |
|
④ |
Air Filter |
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
MX480BASE-AC |
|
|
Description |
Juniper MX10003 base 2-slot chassis; includes 1 RE, 4 fan trays, 4 power supplies, and 1 EMI door with air filter assembly |
Juniper 8 slot MX480 AC base chassis, 1 fan tray, 3 AC power supplies, 1 SCB, 1 RE |
|
System Capacity |
2.4 Tbps |
Up to 9 Tbps |
|
Switch Fabric Capacity per Slot |
N/A |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per Chassis |
2 (MPCs only) |
6 |
|
Chassis per Rack |
14 |
6 |
Get More Information
Do you have any question about the MX480BASE-AC?
Contact us now via Live Chat or info@falcon-atlantic.net
MX480BASE-AC Specification
MX480BASE-AC Specification |
|
|
Description |
Juniper 8 slot MX480 AC base chassis, 1 fan tray, 3 AC power supplies, 1 SCB, 1 RE |
|
System capacity |
Up to 9 Tbps |
|
Switch fabric capacity per slot |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per chassis |
6 |
|
Chassis per rack |
6 |
|
Default memory |
2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD |
|
Number of cores |
6 cores |
|
Dimensions (W x H x D) |
17.45 x 14 x 27.75 in (total depth) includes standard cable manager measurements) (44.3 x 35.6 x 70.5 cm) |
|
Mounting |
Front or center |
|
Power options |
AC/DC: -40 to -72 VDC |
|
Typical power draw (AC) |
3470 W |
|
Operating temperature |
0-104°F (0-40°C) at 6,000 feet |
|
Humidity |
5 to 90 percent noncondensing |
|
Altitude |
No performance degradation to 13,000 ft/4,000 m |
|
Air flow |
Side to side |
|
Operating temperature |
32° to 115° F (0° to 46° C) at sea level |
|
Operating humidity |
5% to 90% |
|
Operating altitude |
10,000 ft (3048 m) |
