MX204 Overview
MX204 is a Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos. The SDN-ready MX204 Universal Routing Platform is a cloud-grade routing platform that offers you ultra-high density and throughput in a space- and power-optimized package. The MX204 addresses the emerging edge and metro Ethernet networking needs of service providers, mobile, web-scale operators, and MSOs by delivering 400 Gbps of throughput in support of high-density 10GbE, 40GbE, and 100GbE interfaces—all in just one rack unit.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
MX204 |
|
Description |
Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos |
|
System Capacity |
400 Gbps |
|
Switch Fabric Capacity per Slot |
N/A |
|
DPCs and/or MPCs per Chassis |
Built-in |
|
Chassis per Rack |
42 |
|
Dimensions (W x H x D) |
17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
|
Mounting |
Four-post rack |
Product Details

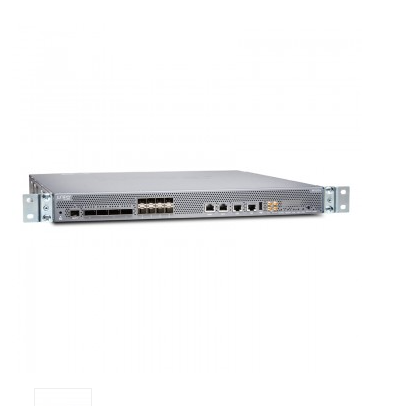

Figure 1 shows the front panel of MX204 chassis.
Figure 2 shows the rear panel of MX204 chassis with AC power supply.
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
MX204 |
||
|
Description |
Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos |
MX204 chassis with 3 fan trays and 2 power supplies, IR mode |
MX204 chassis with 3 fan trays and 2 power supplies, R mode |
|
System Capacity |
400 Gbps |
400 Gbps |
400 Gbps |
|
Switch Fabric Capacity per Slot |
N/A |
N/A |
N/A |
|
DPCs and/or MPCs per Chassis |
Built-in |
Built-in |
Built-in |
|
Chassis per Rack |
42 |
42 |
42 |
|
Dimensions (W x H x D) |
17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
|
Mounting |
Four-post rack |
Four-post rack |
Four-post rack |
Table 3 License Variants for MPCs
|
License |
How to Identify |
Description |
|
Base
|
No special suffix in the license name.
|
• All Layer 2, Layer 2.5, and Layer 3 features. • Up to 32 Layer 3 routing instances of the virtual routing and forwarding (VRF) instance. The VRF support includes Layer 3 VPN (L3VPN). • Up to 2 million routes in the forwarding information base (FIB), provided there is hardware support. (FIB is also known as forwarding table.) • Up to 6 million routes in the routing information base (RIB), also known as routing table. |
|
IR
|
-IR suffix in the license name.
|
• All Layer 2, Layer 2.5, and Layer 3 features. • Up to 32 Layer 3 routing instances of the virtual routing and forwarding (VRF) instance. The VRF support includes Layer 3 VPN (L3VPN). |
|
R |
-R suffix in the license name. |
• Full-scale Layer 2, Layer 2.5, and Layer 3 features. Scale is determined by the hardware capabilities. |
Get more information
Do you have any question about the MX204?
Contact us now via Live Chat or info@falcon-atlantic.net
MX204 Specification
MX204 Specification |
|
|
Description |
Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos |
|
Slots |
8 10GbE, 4 100GbE |
|
Maximum 1GbE |
24 |
|
Maximum 10GbE |
24 |
|
Maximum 40GbE |
4 |
|
Maximum 100GbE |
4 |
|
System Capacity |
400 Gbps |
|
Switch Fabric Capacity per Slot |
N/A |
|
DPCs and/or MPCs per Chassis |
Built-in |
|
Chassis per Rack |
42 |
|
Dimensions (W x H x D) |
17.6 x 1.75 x 18.7 in (44.7 x 4.45 x 47.5 cm) |
|
Maximum Weight |
23.15 lbs / 10.5 kg |
|
Mounting |
Four-post rack |
|
Power Options |
100 V to 240 V AC |
|
Operating Temperature |
32° to 131° F (0° to 55° C) |
|
Humidity |
5 % to 90% RH, operating, noncondensing |
|
Altitude |
6000 ft |
