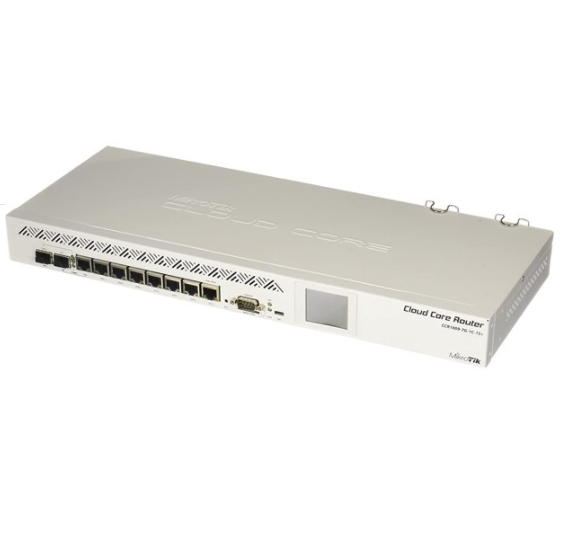

MikroTik Cloud Core Router CCR1009-7G-1C-1S+

MikroTik Cloud Core Router CCR1009-7G-1C-1S+

Brand : mikrotik

Manufacturer : Mikrotik

Replacement Model : CCR1009-7G-1C-1S+

- CCR1009-7G-1C-1S+ Supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules

- A SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you

- The unit is equipped with dual power supplies built in for redundancy (if one power line fails, the other one will take over automatically)

- Unit comes with the 1U rackmount case and supports a Smart card, to store your private key for use in all features that support Certificate based authentication

- Comes with 1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched. Important changes No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports. Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature. 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules. More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
