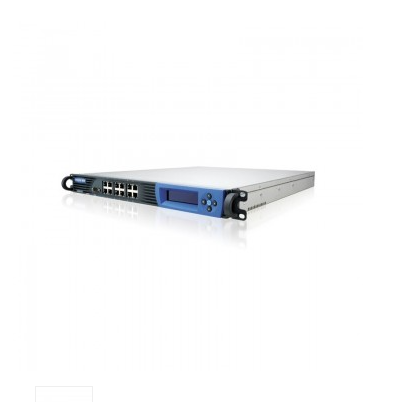

Inspur TS8650G2A Overview
Inspur TS8650G2A is an affordable and efficient four-layered load balancing product developed on the basis of Inspur’s profound understanding of network application. It features real-time, thorough inspection of the server’s health conditions and guarantees optimal services for customers through multiple service health inspection mechanisms. It has flexible flow distribution algorithm and mechanism to ensure the user can always access the server with the optimal user experience.
Quick Spec
Table 1 shows the quick spec.
|
Model |
TS8650G2A |
|
Interface |
12 10/100/1000M self-adaptive RJ45 interface |
|
Supported system platform |
Operating system: Windows, Linux, Unix, Solaris and other mainstream operating system |
|
System management |
Web-based graphical management interface OLED-based LCD management and monitoring |
|
Performance and functions |
OSI 2nd to 4th layer forwarding control; all TCP/UDP-based application protocols Process as many as 60,000 HTTP connection requests per second; 73,000 TCP connection requests; Number of continuous concurrent dialogs >=2 million Back panel bandwidth 32Gbit/s, linear blockless exchange; ； 8 flexible types of load balancing algorithms; Continuation of conversation based on source address conversation retention algorithm Real-time fault monitoring and support dual-machine redundancy Conversation smart recovery, 4 kinds of server monitoring and detection technologies: system detection, ports （TCP or UDP）detection, service detection and user-defined detection script. |
Product Details
Inspur TS8650G2A provides these features:
Single access point
TS8650 G2A is the system’s only access. The client accesses the system via one single IP address. From the perspective of the client, the system established on the basis of TS8650 G2A is a single system image (SSI) based on IP address or one independent host system with legal IP address.
High expandability
It is possible to establish an expandable and highly available server cluster easily with TS8650 G2A. Its high expandability enables the establishment of a cluster system with several to even several hundred units.
High performance
Professional hardware load balancing product with 12 ports; no need for external switch for small and medium-scale applications; it is possible to conveniently adjust the ratio of module loads in the application so that different processing modules with different processing ability optimize their performance and satisfy the complicated application needs of the system.
Safety
Two TS8650G2A can be utilized to realize the dual-machine hot standby of the dispatcher and guarantee the robustness of the operating system.
High flexibility
It supports 2 4-layered load balancing technology, 8 load balancing algorithms and can provide the perfect solution according to user demands.
Easy management
TS8650 G2A can monitor and manage on a real-time basis according to the operating state of the cluster nodes and provide a uniform, collective, visual and trans-platform management environment for the system administrator.
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
TS8650G2A |
|
|
Interface |
12 10/100/1000M self-adaptive RJ45 interface |
12 10/100/1000M self-adaptive RJ45 interface |
|
Supported system platform |
Operating system: Windows, Linux, Unix, Solaris and other mainstream operating system |
Operating system: Windows, Linux, Unix, Solaris and other mainstream operating system |
|
System management |
Web-based graphical management interface OLED-based LCD management and monitoring |
Web-based graphical management interface OLED-based LCD management and monitoring Dynamic installation/uninstallation based on protocol and strategy |
|
Performance and functions |
OSI 2nd to 4th layer forwarding control; all TCP/UDP-based application protocols Process as many as 60,000 HTTP connection requests per second; 73,000 TCP connection requests; Number of continuous concurrent dialogs >=2 million Back panel bandwidth 32Gbit/s, linear blockless exchange; ； 8 flexible types of load balancing algorithms; Continuation of conversation based on source address conversation retention algorithm Real-time fault monitoring and support dual-machine redundancy Conversation smart recovery, 4 kinds of server monitoring and detection technologies: system detection, ports （TCP or UDP）detection, service detection and user-defined detection script. |
Process as many as 75,000 HTTP connection requests per second; 90,000 TCP connection requests; Number of continuous concurrent dialogs >=4 million Back panel bandwidth 32Gbit/s, linear blockless exchange; IP routing table: no limit Number of virtual servers supported: no limit Support multiple TCP.UDP ports bundling and forwarding Support multiple health checkup mechanisms: ping, connect and server monitoring and checking; support user’s self-defining of detection scripts High availability: support load balancer dual-unit high availability; avoid single unit failure Safety: prevent DOS attack and SYNC attack Safety management: user-friendly WEB page, management via serial port, HTTP, SSH, etc. |
Get More Information
Do you have any question about the TS8650G2A?
Contact us now via Live Chat or info@falcon-atlantic.net
Inspur TS8650G2A Specification
TS8650G2A technical specifications |
|
|
Interface |
12 10/100/1000M self-adaptive RJ45 interface |
|
Supported system platform |
Operating system: Windows, Linux, Unix, Solaris and other mainstream operating system |
|
System management |
Web-based graphical management interface OLED-based LCD management and monitoring |
|
Performance and functions |
OSI 2nd to 4th layer forwarding control; all TCP/UDP-based application protocols Process as many as 60,000 HTTP connection requests per second; 73,000 TCP connection requests; Number of continuous concurrent dialogs >=2 million Back panel bandwidth 32Gbit/s, linear blockless exchange; ； 8 flexible types of load balancing algorithms; Continuation of conversation based on source address conversation retention algorithm Real-time fault monitoring and support dual-machine redundancy Conversation smart recovery, 4 kinds of server monitoring and detection technologies: system detection, ports （TCP or UDP）detection, service detection and user-defined detection script. |
|
Supported protocols |
All TCP-UDP-based application protocols |
|
Power supply |
250W power supply |
|
Power consumption |
120W(MAX) |
|
Physical size |
430(W) x 514(D) x 44(H) mm |
