Inspur SR Overview

Check Inspur All Servers

View the overview of Inspur rack servers, tower servers and more products, and select the best one for your business.

• Inspur Rack Servers • Inspur Tower Servers • All Servers

Learn Details

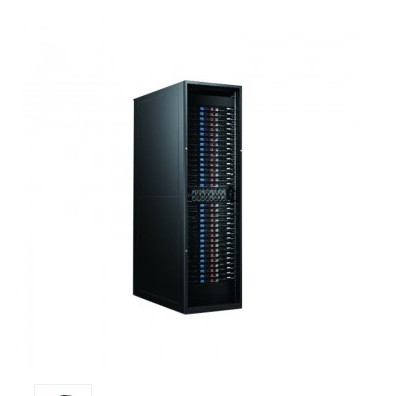

Inspur SR is used for mass data storage and processing, suitable for the distributed storage of cloud resource pools and the big data processing such as Hadoop cluster and other applications.

Quick Spec

Table 1 shows the quick spec.

Model	SR4200 Rack
Rack Dimension	Depth 1200mm, Width 600mm，Height 2100mm (42U)
Blade Quantity	Support 32 or any blade less than 32
Internet Switch Module	Support three 1U rack GB or 10GB switches
Power Module	Power module is located in the middle of the rack, 5+5 redundant power supply, each power 2500W is equipped with two 63A/220V or 32A/220V industrial connectors. The power supply supports 240V DC supply directly.
Thermal Module	The thermal module is located at the rear of the rack, fully equipped with 27 fans, divided into 9 groups. There is one fan frame for each group, corresponding to the thermal dissipation of front 4 blades. The dimensions of each fan are 140mm*38mm, fan and fan frame support hot swap free of tools. Front inlet, rear outlet
Management Module	The middle of the rack is integrated RMC concentrated management module Support the status monitoring of power supply, fan and blade, log record, fault alarm, asset management of blade.

Product Details

Inspur SR provides these features:

· More reliable and efficient for complete separation of function modules and support modules

- Thanks to centralized power supply through one redundant power supply, and the technology for dynamic adjustment of power supply load, Smart Rack achieves the power supply conversion efficiency as high as over 94%, the centralized cooling through fan walls on rack back, and the power consumption of more than 10% less than that of an ordinary rack-mounted server.

- N+N redundant power supply module and N+1 redundancy fan module significantly enhance system reliability and fully guarantee reliable system operating.

· Flexible architecture allows organic coexistence of network, computing and storage

- Flexibly supporting semi-width computing node, full-width storage node and others, and being compatible to standard rack-mounted network switch, it integrates the functions of network, computing and storage, meeting configuration demands of different users.

· Easy maintenance, no cumbersome disassembly and assembly

- Unique node maintenance design, tool-free hot-plugging design for modules, and optimized cable wiring design, significantly reduce system operation and maintenance difficulty.

· Easily realizing the centralized unified portal management and the automatic business deployment

- Realizing overall management of function modules and support modules of complete rack by the management center, it can dynamically adjust running parameters according to status information, guarantee more stable business operating, save energy, and achieve automatic batch deployment of applications through Inspur software.

- SR is a high-density rack-mounted server developed based on the In-Cloud strategy of Inspur. Based on the design principle of low power dissipation and easy management, and the innovative design concept of modular design, centralized cooling, centralized power supply, centralized management and others, the server boasts advantages of low power dissipation, high reliability, easy maintenance, and flexible expansion.

Get More Information

Do you have any question about the Inspur SR4200 Rack?

Inspur SR Specification

Inspur SR4200 Rack Specification
Rack Dimension	Depth 1200mm, Width 600mm，Height 2100mm (42U)
Blade Quantity	Support 32 or any blade less than 32
Internet Switch Module	Support three 1U rack GB or 10GB switches
Power Module	Power module is located in the middle of the rack, 5+5 redundant power supply, each power 2500W is equipped with two 63A/220V or 32A/220V industrial connectors. The power supply supports 240V DC supply directly.
Thermal Module	The thermal module is located at the rear of the rack, fully equipped with 27 fans, divided into 9 groups. There is one fan frame for each group, corresponding to the thermal dissipation of front 4 blades. The dimensions of each fan are 140mm*38mm, fan and fan frame support hot swap free of tools. Front inlet, rear outlet
Management Module	The middle of the rack is integrated RMC concentrated management module Support the status monitoring of power supply, fan and blade, log record, fault alarm, asset management of blade.
	High-performance Storage Blade SN5160M4
Type	1U1 Blade
CPU	2 E5-2600v3 Series CPUs
Memory	16DIMM DDR4 memory slot
Internet	Support by internet sub card, each blade supports 1 internet sub card. 3 kinds of sub cards are available, double 10GB fiber-optical interface, double 1GB electrical interface
Hard Disk Drive	Support at most 12 3.5″/2.5″ SATA/SAS/SSD hard disk drive. Hard disk drive supports hot swap.
Disk controller	Support external SAS card and 512M or 1G cache high performance Raid card by SAS/raid sub card. Each blade supports 1 SAS/raid sub card Support cut-through and cache Support raid0.1.10.5.50
Management module	Support management of IPMI2.0 independent management internet access
PCL-e	1 PCI-e 3.0×16 slot 1 internet sub card slot (only support self-developed internet card) 1 SAS/raid sub card slot (only support self-developed SAS/raid card)
Port	2 USBs, 1 VGA, 1 independent management internet access
	High Density of Compute Blade
Type	1U2 Blade
CPU	2 E5-2600v3 Series CPUs
Memory	16DIMM DDR4 memory slot
Internet	Support by internet sub card, each blade supports 1 internet sub card. 3 kinds of sub cards are available, double GB fiber-optical interface, double 10GB electrical interface.
Hard Disk Drive	Support at most 2 3.5″/2.5″ SATA/SAS/SSD hard disk drive. Hard disk drive supports hot swap.
Disk controller	Support external SAS card and 512M or 1G cache high performance Raid card by SAS/raid sub card. Each blade supports 1 SAS/raid sub card Support cut-through and cache Support raid0.1.10.5.50
Management module	Support management of IPMI2.0 independent management internet access
PCL-e	1 PCI-e 3.0×16 slot 1 internet sub card slot (only support self-developed internet sub card) 1 SAS/raid sub card slot (only support self-developed SAS/raid sub card)
Port	2 USBs, 1 VGA, 1 independent management internet access
