FS-224E Overview
FS-224E is the Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x GE SFP.
Quick Specs

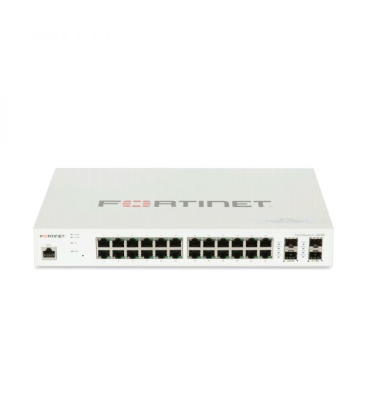

Figure 1 shows the appearance of FS-224E.
Table 1 shows the Quick Specs.
Product Code |
FS-224E |
Form Factor |
1 RU Rack Mount |
Switching Capacity (Duplex) |
56 Gbps |
Packets Per Second (Duplex) |
83 Mpps |
MAC Address Storage |
16 K |
Height x Depth x Width (inches) |
1.73 x 9 x 12.99 |
Height x Depth x Width (mm) |
44 x 230 x 330 |
Power Required |
100–240V AC, 50–60 Hz |
Power Consumption (Average / Maximum) |
17.2 W / 17.3 W |
Product Details
Figure 2 shows the front panel o FS-224E.
Figure 3 shows the back panel of FS-224E.
Feature:
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Security Fabric Integration
Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.
In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.
Simplify Network Deployment
The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.
Highlights
- Secure Access switches suitable for wiringcloset and desktop installations
- Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
- Devices are identified and users authenticated prior to being granted access to the network
- Centralized security and access management from FortiGate interface
- Up to 48 ports in a compact 1 RU form factor
- Stackable up to 300 switches per FortiGate depending on model
- Supports Wire-speed switching and Store and Forward forwarding mode
Compare to Similar Items
Table 2 shows the comparison of FS-224E.
Module |
FS-224E |
|
Total Network Interfaces |
24x GE RJ45 ports and 4x GE SFP ports |
48x GE RJ45 ports and 4x GE SFP ports |
Switching Capacity (Duplex) |
56 Gbps |
104 Gbps |
Packets Per Second (Duplex) |
83 Mpps |
155 Mpps |
MAC Address Storage |
16 K |
16 K |
Link Aggregation Group Size |
8 |
8 |
Power Consumption* (Average / Maximum) |
17.2 W / 17.3 W |
38.66 W / 39.19 W |
Get More Information
Do you have any question about the FS-224E?
Contact us now via Live Chat or info@falcon-atlantic.net
FS-224E Specification
FS-224E specification |
|
Hardware specification |
|
Total Network Interfaces |
24x GE RJ45 ports and 4x GE SFP ports |
Dedicated Management 10/100 Port |
1 |
RJ-45 Serial Console Port |
1 |
Form Factor |
1 RU Rack Mount |
Power over Ethernet (PoE) Ports |
NA |
PoE Power Budget |
NA |
Mean Time Between Failures |
> 10 years |
System specification |
|
Switching Capacity (Duplex) |
56 Gbps |
Packets Per Second (Duplex) |
83 Mpps |
MAC Address Storage |
16 K |
Network Latency |
< 1µs |
VLANs Supported |
4 K |
Link Aggregation Group Size |
8 |
Total Link Aggregation Groups |
Up to number of ports |
Packet Buffers |
1.5 MB |
DRAM |
512 MB |
FLASH |
128 MB |
Dimensions |
|
Height x Depth x Width (inches) |
1.73 x 9 x 12.99 |
Height x Depth x Width (mm) |
44 x 230 x 330 |
Environment |
|
Power Required |
100–240V AC, 50–60 Hz |
Power Supply |
AC Built in |
Redundant Power |
Redundant AC |
Power Consumption (Average / Maximum) |
17.2 W / 17.3 W |
Heat Dissipation |
59.095 BTU/h |
Operating Temperature |
32–122°F (0–50°C) |
Storage Temperature |
-4–158°F (-20–70°C) |
Humidity |
10–90% non-condensing |
