Fortinet

FG-90E

Sale
Regular price $0.00

Tax included.

FG-90E Overview

FG-90E is the Fortinet NGFW Entry-level Series FortiGate 90E firewall. The FortiGate 90E offers an excellent network security solution in a compact desktop form factor for enterprise branch offices and mid-sized businesses.

Quick Spec

Table 1 shows the quick spec.

SKU	FG-90E
Firewall	4 Gbps
IPS	470 Mbps
NGFW	375 Mbps
Threat Protection	270 Mbps
Interfaces	16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x switch ports)

Product Details

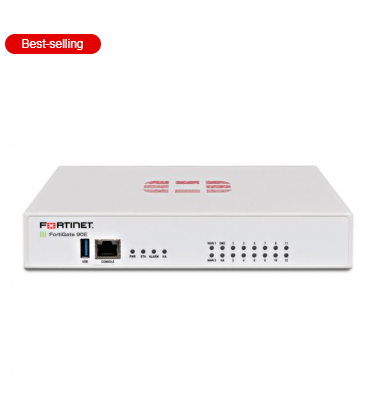

Figure 1 shows the front view of FG-90E.

Fortinet FG-90E Front View

Note:

①	USB Management Port
②	Console Port

Figure 2 shows the rear view of FG-90E.

Fortinet FG-90E Rear View

Note:

①	12x GE RJ45 Ports
②	GE RJ45 HA Ports
③	GE RJ45 WAN 2 Ports
④	GE RJ45 WAN 1 Ports
⑤	GE RJ45 DMZ Ports

Compare to Similar Item

Table 2 shows the comparison of FG-90E and FG-80E.

Sku	FG-90E	FG-80E
Firewall	4 Gbps	4 Gbps
IPS	470 Mbps	450 Mbps
NGFW	375 Mbps	360 Mbps
Threat Protection	270 Mbps	250 Mbps
Interfaces	16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x switch ports)	14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots)

Get More Information

Do you have any question about the FG-90E?

FG-90E Specification

FG-90E Specification
Type	FORTIGATE 90E
Hardware Specifications
GE RJ45 Ports	16
USB Ports	1
Console (RJ45)	1
Internal Storage	-
System Performance and Capacity
Firewall Throughput	4 Gbps
Firewall Latency (64 byte UDP Packets)	182 μs
Firewall Throughput (Packet per Second)	375 Kpps
Concurrent Sessions (TCP)	1.2 Million
New Sessions/Second (TCP)	27,500
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	245 Mbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2,500
SSL-VPN Throughput	95 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, HTTP)	300 Mbps
Application Control Throughput	510 Mbps
CAPWAP Throughput (HTTP 64K)	950 Mbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	32 / 16
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput	1 Gbps
System Performance
IPS Throughput	470 Mbps
NGFW Throughput	375 Mbps
Threat Protection Throughput	270 Mbps
Dimensions and Power
Height x Width x Length	1.7 x 8.5 x 7.0 inches 43.9 x 216 x 178.5 mm
Form Factor	Desktop
Power Required	100–240V AC, 60–50 Hz (External DC Power Adapter)
Power Consumption (Average / Maximum)	22.8 W / 27.36 W
Current (Maximum)	100V AC / 1.5A
Heat Dissipation	77.7936 BTU/h
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	40 dB
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN; USGv6/IPv6
