FG-900D Overview
FG-900D is the Fortinet NGFW Middle-range Series FortiGate 900D firewall. The FortiGate 900D delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.
Quick Spec
Table 1 shows the quick spec.
|
Sku |
FG-900D |
|
Firewall |
52 Gbps |
|
IPS |
4.2 Gbps |
|
NGFW |
4 Gbps |
|
Threat Protection |
3 Gbps |
|
Interfaces |
2 x 10GE SFP+ slots 16 x GE SFP slots 16 x GE RJ45 ports 2 x GE RJ45 management ports |
Product Details

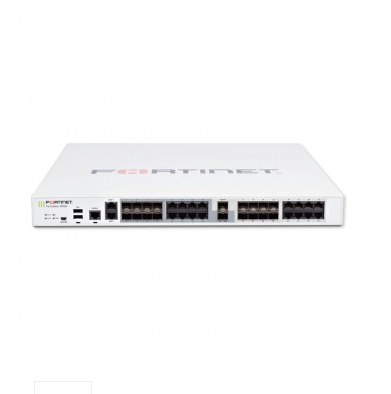

Figure 1 shows the front view of FG-900D.
Note:
|
① |
16x GE SFP Slots |
|
② |
USB Management Port |
|
③ |
USB Ports |
|
④ |
Console Port |
|
⑤ |
2x GE RJ45 Management Ports |
|
⑥ |
2x 10 GE SFP+ Slots |
|
⑦ |
16x GE RJ45 Ports |
Figure 2 shows the rear view of FG-900D.
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-900D.
|
Optional Accessories & Spares |
SKU |
Description |
|
1 GE SFP LX Transceiver Module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 Transceiver Module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
|
|
1 GE SFP SX Transceiver Module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Short Range |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Long Range |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
|
|
AC Power Supply |
Compare to Similar Item
Table 3 shows the comparison of FG-900D and FG-600D.
|
Sku |
FG-900D |
|
|
Firewall |
52 Gbps |
36 Gbps |
|
IPS |
4.2 Gbps |
4 Gbps |
|
NGFW |
4 Gbps |
3.8 Gbps |
|
Threat Protection |
3 Gbps |
3 Gbps |
|
Interfaces |
2 x 10GE SFP+ slots 16 x GE SFP slots 16 x GE RJ45 ports 2 x GE RJ45 management ports |
2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |
Get More Information
Do you have any question about the FG-900D?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-900D Specification
FG-900D Specification |
|
|
Type |
FORTIGATE 900D |
|
Interfaces and Modules |
|
|
Hardware Accelerated |
10 |
|
GE SFP+ Slots |
2 |
|
Hardware Accelerated GE SFP Slots |
16 |
|
Hardware Accelerated GE RJ45 Ports |
16 |
|
GE RJ45 Management / HA Ports |
2 |
|
USB Ports (Client / Server) |
1 / 2 |
|
Console Port |
1 |
|
Onboard Storage |
1x 256 GB SSD Included |
|
Transceivers |
0 |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
4.2 Gbps |
|
NGFW Throughput |
4 Gbps |
|
Threat Protection Throughput |
3 Gbps |
|
System Performance and Capacity |
|
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
52 / 52 / 33 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
52 / 52 / 33 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 μs |
|
Firewall Throughput (Packet per Second) |
49.5 Mpps |
|
Concurrent Sessions (TCP) |
11 Million |
|
New Sessions/Second (TCP) |
280,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
25 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
50,000 |
|
SSL-VPN Throughput |
3.6 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10,000 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
3.9 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
2,400 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
800,00 |
|
Application Control Throughput (HTTP 64K) |
10 Gbps |
|
CAPWAP Throughput (1444 byte, UDP) |
11 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
64 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
1024 / 512 |
|
Maximum Number of FortiTokens |
5,000 |
|
Maximum Number of Registered FortiClients |
2,000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.75 x 17.22 x 18.24 inches 44.45 x 437.5 x 463.2 mm |
|
Form Factor |
1 RU |
|
AC Power Supply |
100–240V AC, 60–50 Hz, 300 W Redundant |
|
Power Consumption (Average / Maximum) |
135 W / 187.2 W |
|
Current (Maximum) |
100V/5A, 240V/3A |
|
Heat Dissipation |
638.75 BTU/h |
|
Redundant Power Supplies |
Yes (Hot Swappable) |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
49.9 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
