FG-60E Overview
FG-60E is the Fortinet NGFW Entry-level Series FortiGate 60E firewall. The FortiGate 60E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
FG-60E |
|
Firewall |
3 Gbps |
|
IPS |
400 Mbps |
|
NGFW |
250 Mbps |
|
Threat Protection |
200 Mbps |
|
Interfaces |
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). |
Product Details

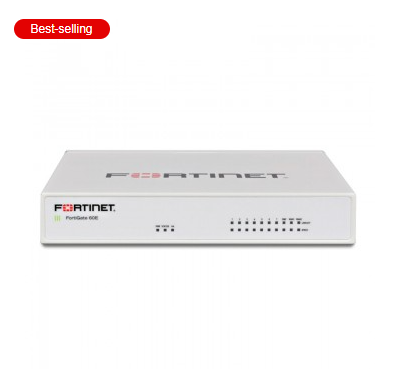

Figure 1 shows the front view of FG-60E.
Figure 2 shows the rear view of FG-60E.
Note:
|
① |
USB Port |
|
② |
Console Port |
|
③ |
GE RJ45 WAN Port |
|
④ |
GE RJ45 WAN Port |
|
⑤ |
1x GE RJ45 DMZ Ports |
|
⑥ |
7x GE RJ45 Internal Ports |
Related Products
Table 2 shows the bundle models and licenses of FG-60E.
| Types | Model | Description |
| Basic Firewall | FG-60E | 10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port). Max managed FortiAPs (Total / Tunnel) 30 / 10 |
| 1 year bundle | FG-60E-BDL-950-12 | FG-60E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-60E & FC-10-0060E-950-02-12) |
| 1 year License | FC-10-0060E-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-60E |
| 3 year bundle | FG-60E-BDL-950-36 | FG-60E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-60E & FC-10-0060E-950-02-36) |
| 3 year License | FC-10-0060E-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-60E |
| 5 year bundle | FG-60E-BDL-950-60 | FG-60E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-60E & FC-10-0060E-950-02-60) |
| 5 year License | FC-10-0060E-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-60E |
Compare to Similar Item
Table 3 shows the comparison of FG-60E and FG-61E.
|
Sku |
FG-60E |
|
|
Firewall |
3 Gbps |
3 Gbps |
|
IPS |
400 Mbps |
400 Mbps |
|
NGFW |
250 Mbps |
250 Mbps |
|
Threat Protection |
200 Mbps |
200 Mbps |
|
Interfaces |
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). |
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). |
|
Internal Storage |
N/A |
1x 128 GB SSD |
Get More Information
Do you have any question about the FG-60E?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-60E Specification
FG-60E Specification |
|
|
Type |
FORTIGATE 60E |
|
Hardware Specifications |
|
|
GE RJ45 WAN / DMZ Ports |
2 / 1 |
|
GE RJ45 Internal Ports |
7 |
|
GE RJ45 PoE/+ Ports |
- |
|
Wireless Interface |
- |
|
USB Ports |
1 |
|
Console (RJ45) |
1 |
|
Internal Storage |
- |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
3 / 3 / 3 Gbps |
|
Firewall Latency (64 byte UDP Packets) |
3 μs |
|
Firewall Throughput (Packet per Second) |
4.5 Mpps |
|
Concurrent Sessions (TCP) |
1.3 Million |
|
New Sessions/Second (TCP) |
30,000 |
|
Firewall Policies |
5,000 |
|
IPsec VPN Throughput (512 byte) |
2 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
|
Client-to-Gateway IPsec VPN Tunnels |
500 |
|
SSL-VPN Throughput |
150 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
135 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
135 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
75,000 |
|
Application Control Throughput (HTTP 64K) |
650 Mbps |
|
CAPWAP Throughput (HTTP 64K) |
890 Mbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
8 |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
30 / 10 |
|
Maximum Number of FortiTokens |
500 |
|
Maximum Number of Registered FortiClients |
200 |
|
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
|
System Performance |
|
|
IPS Throughput |
400 Mbps |
|
NGFW Throughput |
250 Mbps |
|
Threat Protection Throughput |
200 Mbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.5 x 8.5 x 6.3 inches 38 x 216 x 160 mm |
|
Form Factor |
Desktop |
|
Power Required |
100–240V AC, 50–60 Hz |
|
Maximum Current |
110V AC / 1.5 A, 220V AC / 0.75 A |
|
Total Available PoE Power Budget |
N/A |
|
Power Consumption (Average / Maximum) |
11.7 / 14 W |
|
Heat Dissipation |
40 BTU/h |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
Fanless 0 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
