FG-50E-BDL Overview
The FortiGate 50E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
FG-50E-BDL |
|
Firewall |
2.5 Gbps |
|
IPS |
350 Mbps |
|
NGFW |
220 Mbps |
|
Threat Protection |
160 Mbps |
|
Interfaces |
7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports) |
Product Details

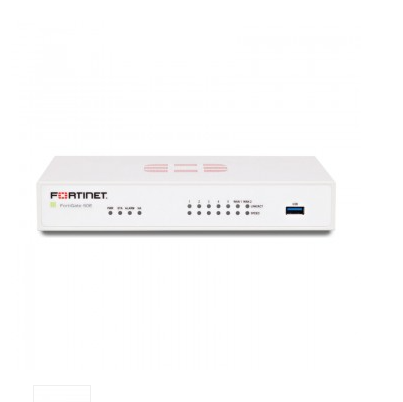

Figure 1 shows the front view of FG-50E.FG-50E-BDL is similar with it.
Note:
|
① |
USB Port |
Figure 2 shows the rear view of FG-50E.FG-50E-BDL is similar with it.
Note:
|
① |
Console RJ45 |
|
② |
2x GE RJ45 WAN Ports |
|
③ |
5x GE RJ45 Switch Ports |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
FG-50E-BDL |
|
|
Firewall |
2.5 Gbps |
3 Gbps |
|
IPS |
350 Mbps |
400 Mbps |
|
NGFW |
220 Mbps |
250 Mbps |
|
Threat Protection |
160 Mbps |
200 Mbps |
|
Interfaces |
7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports) |
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port). |
|
Internal Storage |
\ |
1x 128 GB SSD |
Get More Information
Do you have any question about the FG-50E-BDL?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-50E-BDL Specification
FG-50E-BDL Specification |
|
|
Interfaces and Modules |
|
|
GE RJ45 Switch Ports |
5 |
|
GE RJ45 WAN Ports |
2 |
|
USB Ports |
1 |
|
Console (RJ45) |
1 |
|
Wireless Interface |
\ |
|
Internal Storage |
\ |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
350 Mbps |
|
NGFW Throughput |
220 Mbps |
|
Threat Protection Throughput |
160 Mbps |
|
System Performance |
|
|
Firewall Throughput |
2.5 Gbps |
|
Firewall Latency (64 byte UDP Packets) |
180 μs |
|
Firewall Throughput (Packet per Second) |
375 Kpps |
|
Concurrent Sessions (TCP) |
1.8 Million |
|
New Sessions/Second (TCP) |
21,000 |
|
Firewall Policies |
5,000 |
|
IPsec VPN Throughput (512 byte) |
90 Mbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
|
Client-to-Gateway IPsec VPN Tunnels |
250 |
|
SSL-VPN Throughput |
100 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
150 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
140 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
75,000 |
|
Application Control Throughput (HTTP 64K) |
450 Mbps |
|
CAPWAP Throughput (HTTP 64K) |
1.2 Gbps |
|
Virtual Domains (Default / Maximum) |
5 / 5 |
|
Maximum Number of FortiSwitches Supported |
8 |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
10 / 5 |
|
Maximum Number of FortiTokens |
500 |
|
Maximum Number of Registered FortiClients |
200 |
|
High Availability Configurations |
Active/Active, Active/Passive, Clustering |
|
Dimensions and Environment |
|
|
Height x Width x Length |
1.44 x 8.52 x 5.5 inches 36.5 x 216 x 140 mm |
|
Form Factor |
Desktop |
|
Power Required |
100–240V AC, 60–50 Hz (External DC Power Adapter) |
|
Maximum Current |
100 V / 0.6 A, 240 V / 0.4 A |
|
Power Consumption (Average / Maximum) |
15 / 18 W |
|
Heat Dissipation |
62 BTU/h |
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
Fanless 0 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
