FG-400E Overview
The FortiGate 400E series provides an application-centric, scalable, and secure SD-WAN solution with Next Generation Firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Quick Spec
Table 1 shows the quick spec.
|
Product Code |
FG-400E |
|
Hardware Accelerated GE RJ45 Interfacess |
16 |
|
Hardware Accelerated GE SFP Slots |
16 |
|
GE RJ45 Management Ports |
2 |
|
USB Ports |
2 |
|
RJ45 Console Port |
1 |
|
Onboard Storage |
0 |
|
Included Transceivers |
2x SFP (SX 1 GE) |
|
IPS Throughput |
7.8 Gbps |
|
NGFW Throughput |
6 Gbps |
|
Threat Protection Throughput |
5 Gbps |
|
Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
|
Height x Width x Length (mm) |
44.45 x 432 x 380 |
|
Form Factor |
Rack Mount, 1 RU |
|
AC Power Consumption (Average / Maximum) |
109 W / 214 W |
|
AC Power Input |
100–240V AC, 50/60Hz |
Product Details

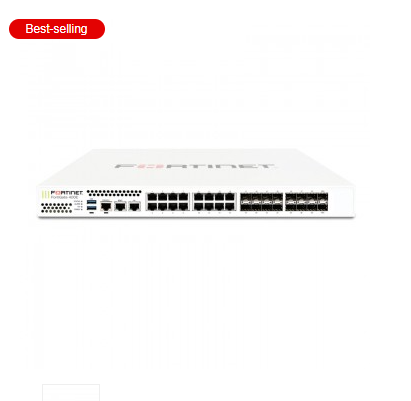

Figure 1 shows the front view of FG-400E.
Note:
|
① |
1x USB Port |
|
② |
1x Console Port |
|
③ |
2x GE RJ45 MGMT/HA Ports |
|
④ |
16x GE RJ45 Ports |
|
⑤ |
16x GE SFP Slots |
Related Products
Table 2 shows the bundle models and licenses of FG-400E.
| Types | Model | Description |
| Basic Firewall | FG-400E | FortiGate-400E, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated |
| 1 year bundle | FG-400E-BDL-950-12 | FG-400E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-400E & FC-10-0400E-950-02-12) |
| 1 year License | FC-10-0400E-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-400E |
| 3 year bundle | FG-400E-BDL-950-36 | FG-400EHardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-400E & FC-10-0400E-950-02-36) |
| 3 year License | FC-10-0400E-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-400E |
| 5 year bundle | FG-400E-BDL-950-60 | FG-400EHardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-400E & FC-10-0400E-950-02-60) |
| 5 year License | FC-10-0400E-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-400E |
Get More Information
Do you have any question about the FG-400E?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-400E Specification
FG-400E Specification |
|
|
Interfaces and Modules |
|
|
Hardware Accelerated GE RJ45 Interfacess |
16 |
|
Hardware Accelerated GE SFP Slots |
16 |
|
GE RJ45 Management Ports |
2 |
|
USB Ports |
2 |
|
RJ45 Console Port |
1 |
|
Onboard Storage |
0 |
|
Included Transceivers |
2x SFP (SX 1 GE) |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
7.8 Gbps |
|
NGFW Throughput 2, 4 |
6 Gbps |
|
Threat Protection Throughput 2, 5 |
5 Gbps |
|
System Performance and Capacity |
|
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
32 / 32 / 24 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
32 / 32 / 24 Gbps
|
|
Firewall Latency (64 byte, UDP) |
2.14 μs |
|
Firewall Throughput (Packet per Second) |
36Mpps |
|
Concurrent Sessions (TCP) |
4 Million |
|
New Sessions/Second (TCP) |
450,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) 1 000 |
20 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
50,000 |
|
SSL-VPN Throughput |
4.5 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
5,000 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
4.8 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
4,000 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
300,000 |
|
Application Control Throughput (HTTP 64K) 2 |
12 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
14.8 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
72 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
512 / 256 |
|
Maximum Number of FortiTokens |
5,000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
|
Dimensions and Power |
|
|
Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
|
Height x Width x Length (mm) |
44.45 x 432 x 380 |
|
Weight |
16.4 lbs (7.4 kg) |
|
Form Factor |
Rack Mount, 1 RU |
|
AC Power Consumption (Average / Maximum) |
109 W / 214 W |
|
AC Power Input |
100–240V AC, 50/60Hz |
|
AC Current (Maximum) |
6A |
|
Heat Dissipation |
730 BTU/h |
|
Redundant Power Supplies (Hot Swappable) |
Optional |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
48 dBA |
|
Airflow |
Side and Front to Back |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
|
Note: All performance values are “up to” and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 4. NGFW performance is measured with Firewall, IPS and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. |
|
