Fortinet

FG-300E-BDL-950-36

Sale
Regular price $12,631.00

Tax included.

FG-300E-BDL-950-36 Overview

The FortiGate 300E series delivers next generation firewall capabilities for mid-sized to large enterprises,with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	FG-300E-BDL-950-36
Firewall	32 Gbps
IPS	5 Gbps
NGFW	3.5 Gbps
Threat Protection	3 Gbps
Interfaces	16 x GE SFP slots 16 x GE RJ45 ports 2x GE RJ45 MGMT/HA Ports

Product Details

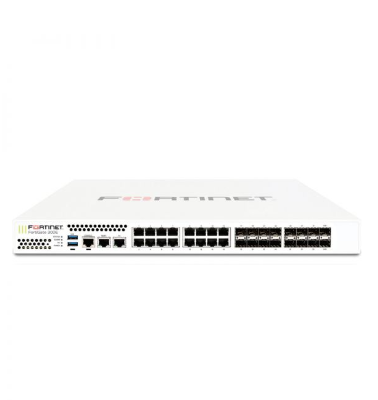

Figure 1 shows the front view of FG-300E. FG-300E-BDL-950-36 is similar with it.

Note:

①	2 USB Ports
②	1 Console Port
③	RJ45 MGMT Ports
④	RJ45 HA Ports
⑤	16x GE RJ45 Ports
⑥	16x GE SFP Slots

Figure 2 shows the rear view of FG-300E. FG-300E-BDL-950-36 is similar with it.

The Optional Accessories & Spares

Table 2 shows the optional accessories or spares of FG-301E-BDL-950-36.

Optional Accessories & Spares	SKU	Description
1 GE SFP LX Transceiver Module	FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 Transceiver Module	FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX Transceiver Module	FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
Optional Power Supply	SP-FG300E-PS	AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F

Compare to Similar Items

Table 3 shows the comparison.

Product Code	FG-100E-BDL-950-12	FG-200E-BDL-950-36	FG-300E-BDL-950-36
Firewall	7.4 Gbps	20 Gbps	32 Gbps
IPS	500 Mbps	2.2 Gbps	5 Gbps
NGFW	360 Mbps	1.8 Gbps	3.5 Gbps
Threat Protection	250 Mbps	1.2 Gbps	3 Gbps
Interfaces	2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 14x GE RJ45 Ports 2x GE RJ45/SFP Shared Media Pairs	2x GE RJ45 Management/HA Ports 2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots	16 x GE SFP slots 16 x GE RJ45 ports 2x GE RJ45 MGMT/HA Ports

Related Products

Table 4 shows the related products of FG-300E.

Types	Model	Description
Basic Firewall	FG-300E	18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated
1 year bundle	FG-300E-BDL-950-12	FG-300E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-12)
1 year License	FC-10-00306-950-02-12	1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E
3 year bundle	FG-300E-BDL-950-36	FG-300EHardware plus 3 Year 247 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-36)*
3 year License	FC-10-00306-950-02-36	3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E
5 year bundle	FG-300E-BDL-950-60	FG-300EHardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-60)
5 year License	FC-10-00306-950-02-60	5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E
Power supply	SP-FG300E-PS	AC power supply for FG-300/301E and FG-500/501E.

Get More Information

Do you have any question about the FG-300E-BDL-950-36?

FG-300E-BDL-950-36 Specification

FG-300E-BDL-950-36 Specification
Interfaces and Modules
GE SFP Slots	16
GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
USB Ports	2
RJ45 Console Port	1
Local Storage	NIL
Included Transceivers	2x SFP (SX 1 GE)
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	32 / 32 / 20 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	32 / 32 / 20 Gbps
Firewall Latency (64 byte, UDP)	3 μs
Firewall Throughput (Packet per Second)	30 Mpps
Concurrent Sessions (TCP)	4 Million
New Sessions/Second (TCP)	300,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	2.5Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	5,000
SSL Inspection Throughput (IPS, avg. HTTPS)	3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	2,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	340,000
Application Control Throughput (HTTP 64K)	7 Gbps
CAPWAP Throughput (1444 byte, UDP)	5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	48
Maximum Number of FortiAPs (Total / Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active-Active, Active-Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
Dimensions and Power
Height x Width x Length	1.75 x 17.0 x 15.0 inches 44.45 x 432 x 380 mm
Form Factor	1 RU
AC Power Supply	100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum)	95 W / 180 W
Current (Maximum)	6A
Heat Dissipation	570 BTU/h
Redundant Power Supplies	optional
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	48 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
