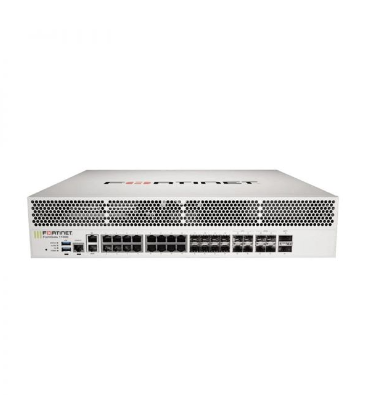

FG-1100E

FG-1100E Specification

Interfaces and Modules

Hardware Accelerated 40 GE QSFP+ Slots

2

Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots

4

Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots

4

Hardware Accelerated GE SFP Slots

8

Hardware Accelerated GE RJ45 Ports

16

GE RJ45 Management / HA Ports

2

USB Ports (Client / Server)

1 / 2

Console Port

1

Onboard Storage

0

Included Transceivers

2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix

IPS Throughput ²

12.5 Gbps

NGFW Throughput ^{2, 4}

9.8 Gbps

Threat Protection Throughput ^{2, 5}

7.11 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

80 / 80 / 45 Gbps

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

80 / 80 / 45 Gbps

Firewall Latency (64 byte, UDP)

2.76 μs

Firewall Throughput (Packet per Second)

67.5 Mpps

Concurrent Sessions (TCP)

8 Million

New Sessions/Second (TCP)

500,000

Firewall Policies

100,000

IPsec VPN Throughput (512 byte) ¹

48 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

20,000

Client-to-Gateway IPsec VPN Tunnels

100,000

SSL-VPN Throughput

8.4 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

10,000

SSL Inspection Throughput (IPS, avg. HTTPS) ³

10 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

6,500

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

780,000

Application Control Throughput (HTTP 64K) ²

26 Gbps

CAPWAP Throughput (HTTP 64K)

43 Gbps

Virtual Domains (Default / Maximum)

10 / 250

Maximum Number of FortiSwitches Supported

196

Maximum Number of FortiAPs (Total / Tunnel)

4,096 / 2,048

Maximum Number of FortiTokens

20,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

3.5 x 17.44 x 17.62

Height x Width x Length (mm)

88.9 x 443 x 447.4

Weight

24.9 lbs (11.3kg)

Form Factor (supports EIA/ non-EIA standards

Rack Mount, 2 RU

AC Power Input

100–240V AC, 50/60 Hz

Power Consumption (Average / Maximum)

217 W / 336 W

AC Current (Maximum)

6A@120V, 3A@240V

Heat Dissipation

1,147 BTU/h

DC Power Input (FG-1100E-DC)

-48V DC

DC Current (Maximum)

11.5A

Redundant Power Supplies

Yes, Hot swappable

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

66.7 dBA

Forced Airflow

Front to Back

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
