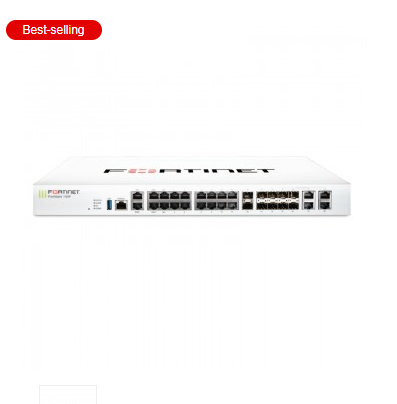

FG-100F

FG-100F Specification

Interfaces and Modules

Hardware Accelerated GE RJ45 Ports

12

Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports

1 / 2 / 1

Hardware Accelerated GE SFP Slots

4

Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)

2

GE RJ45 WAN Ports

2

GE RJ45or SFP Shared Ports *

4

USB Port

1

Console Port

1

Onboard Storage

0

Included Transceivers

0

System Performance — Enterprise Traffic Mix

IPS Throughput ²

2.6 Gbps

NGFW Throughput ^{2, 4}

1.6 Gbps

Threat Protection Throughput ^{2, 5}

1 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

20 / 18 / 10 Gbps

Firewall Latency (64 byte, UDP)

4.97 μs

Firewall Throughput (Packet per Second)

15 Mpps

Concurrent Sessions (TCP)

1.5 Million

New Sessions/Second (TCP)

56,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte) ¹

11.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,500

Client-to-Gateway IPsec VPN Tunnels

16,000

SSL-VPN Throughput

1 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

500

SSL Inspection Throughput (IPS, avg. HTTPS) ³

1 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

1,800

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

135,000

Application Control Throughput (HTTP 64K) ²

2.2 Gbps

CAPWAP Throughput (HTTP 64K)

15 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

32

Maximum Number of FortiAPs (Total / Tunnel)

128 / 64

Maximum Number of FortiTokens

5,000

High Availability Configurations

Active / Active, Active / Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.73 x 17 x 10

Height x Width x Length (mm)

44 x 432 x 254

Weight

7.25 lbs (3.29 kg)

Form Factor (supports EIA/non-EIA standards)

Rack Mount, 1 RU

AC Power Supply

100–240V AC, 50/60 Hz

Power Consumption (Average / Maximum)

35.1 W / 38.7 W

Current (Maximum)

100V / 1A, 240V / 0.5A

Heat Dissipation

119.77 BTU/h

Redundant Power Supplies

Yes

Redundant Power Supplies Yes

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

40.4 dBA

Forced Airflow

Side to Back

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
