EX4600-40F-AFO Overview
EX4600-40F-AFO is a Juniper EX4600 switch with 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 AC power supplies, 2 power cords, 4-post rack mount kit, and front to back airflow. The Juniper Networks EX4600 Ethernet switch is a highly versatile, second generation solution for campus environments. The EX4600 can be deployed in these environments: Campus distribution, Small campus core, Top-of-rack in small, low -density data centers and Data center distribution in small, low -density data centers.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
EX4600-40F-AFO |
|
Description |
Juniper EX4600 switch with 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 AC power supplies, 2 power cords, 4-post rack mount kit, and front to back airflow |
|
Switching capacity |
1.44 Tbps/1.07 Bpps |
|
Backplane speed |
960 Gbps |
|
Dimensions (H x W x D) |
1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
Product Details

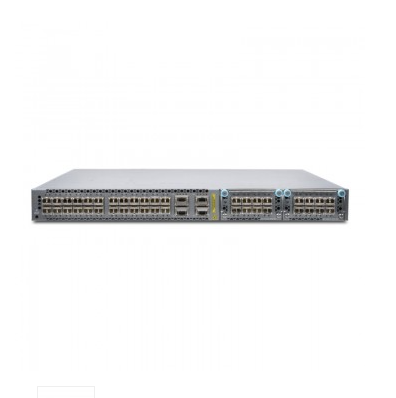

Figure 1 shows the front panel of EX4600.
Note:
|
① |
Electrostatic Discharge (ESD) terminal |
③ |
40 GbE ports (4) |
|
② |
10 G ports (24) |
④ |
Expansion module bays (modules sold separately) |
Figure 2 shows the rear panel of EX4600.
Note:
|
① |
Status LEDs |
⑤ |
Fan modules (sold separately) |
|
② |
em1–SFP management Ethernet port (C1) Cage (socket for either 1 GbE copper SFP or fiber SFP) |
⑥ |
Power supply units |
|
③ |
Reset button |
⑦ |
RJ-45 console port (CON) and em0–RJ-45 (1000 Base-T) management Ethernet port (C0) |
|
④ |
USB port |
|
|
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
EX4600-40F-AFO |
|
|
Backplane speed |
960 Gbps |
80 Gbps |
|
Data rate |
1.44 Tbps |
128 Gbps |
|
Throughput |
1.07 Bpps |
95 Mpps (wire speed) |
|
Ports |
24 SFP+/SFP ports, 4 QSFP+ ports |
24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Get More Information
Do you have any question about the EX4600-40F-AFO?
Contact us now via Live Chat or info@falcon-atlantic.net
EX4600-40F-AFO Specification
EX4600-40F-AFO Specification |
|
|
Description |
24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 AC power supplies, 2 power cords, 4-post rack mount kit, and front to back airflow |
|
Form factor |
Fixed platform |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 20.5 in (44.2 x 4.3 x 52.1 cm) |
|
Backplane speed |
960 Gbps |
|
Data rate |
1.44 Tbps |
|
Throughput |
1.07 Bpps |
|
10/100/1000BASE-T port densities |
20 (200 in a Virtual Chassis configuration) |
|
10GBASE-X port densities |
40 (400 in a Virtual Chassis configuration) |
|
40GBASE QSFP + port densities |
12 (120 in a Virtual Chassis configuration) |
|
100GBASE CFP port densities |
N/A |
|
Resiliency |
Redundant internal load-sharing power supplies; redundant variable-speed fans |
|
Operating system |
Junos OS |
|
Traffic monitoring |
sFlow |
|
QoS queues/port |
8 |
|
MAC addresses |
288,000 |
|
Jumbo frames |
9216 bytes |
|
IPv4 unicast/multicast routes |
128,000/104,000 |
|
IPv6 unicast/multicast routes |
64,000/52,000 |
|
Number of VLANs |
4096 |
|
ARP entries |
48,000 |
