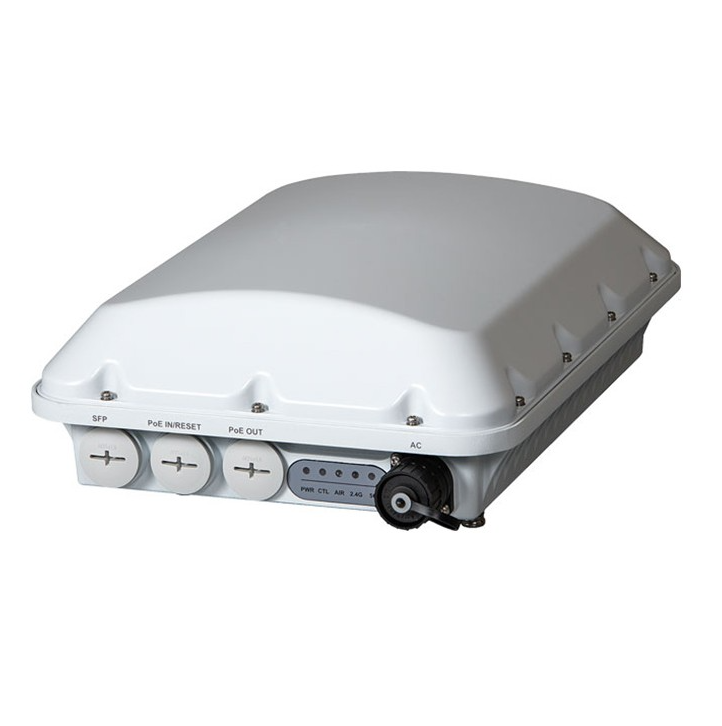

901-T710-WW01 Overview
he RUCKUS T710 combines Ruckus patented technologies and best-in-class industrial grade design with next generation of 80211ac features to deliver industry-leading Wi-Fi performance, reliability and coverage for challenging high density outdoor deployments.
Quick Specs
Table1 shows the Quick Specs.
|
SKU |
901-T710-WW01 |
|
Concurrent Users |
512 |
|
Ethernet Ports |
2 x 1GbE |
|
Fiber Interface |
Yes |
|
PHY Rate at 24 GHz, maximum |
600 Mb/s |
|
PHY Rate at 5 GHz, maximum |
1733 Mb/s |
|
Radio Chains and Streams |
4x4:4 |
|
Rx Sensitivity at 24 GHz |
-104 dBm |
|
Rx Sensitivity at 5 GHz |
-104 dBm |
Product Details
RUCKUS -901-T710-WW01 has these key features:
①4x4:4 streams.
②Omni-directional Beamflex+ coverage.
③dual 10/100/1000 Ethernet ports.
④90-264 Vac.
⑤POE in and POE out.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
901-T710-WW01 |
|
|
PHY Rate at 24 GHz, maximum |
600 Mb/s |
600 Mb/s |
|
PHY Rate at 5 GHz, maximum |
1733 Mb/s |
1733 Mb/s |
|
Radio Chains and Streams |
4x4:4 |
4x4:4 |
|
Rx Sensitivity at 24 GHz |
-104 dBm |
-104 dBm |
|
USB(IoT Ready) |
No |
Yes |
|
Fiber Interface |
Yes |
No |
|
GPS |
Yes |
No |
Get More Information
Do you have any question about the 901-T710-WW01?
Contact us now via Live Chat or info@falcon-atlantic.net
901-T710-WW01 Specification
RUCKUS T710 Specification |
|
|
WI-FI |
|
|
Wi-Fi Standards |
IEEE 80211a/b/g/n/ac Wave 2 |
|
Supported Rates |
80211ac: 65 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80) 80211n: 65Mbps to 600Mbps (MCS0 to MCS 31) 80211a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 80211b: 11, 55, 2 and 1 Mbps |
|
Supported Channels |
24GHz: 1-13 5GHz: 36-64, 100-144, 149-165 |
|
MIMO |
4x4 SU-MIMO 4x4 MU-MIMO |
|
Spatial Streams |
4 SU-MIMO 3 MU MIMO |
|
Radio Chains and Streams |
4x4:4 |
|
Channelization |
20, 40, 80MHz |
|
Security |
WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 80211i, Dynamic PSK WIPS/WIDS |
|
Other Wi-Fi Features |
WMM, Power Save, Tx Beamforming, LDPC, STBC, 80211r/k/v Hotspot Hotspot 20 Captive Portal WISPr |
|
RF |
|
|
Antenna Type |
BeamFlex+ adaptive antennas with polarization diversity Adaptive antenna that provides over 4,000 unique antenna patterns per band |
|
Antenna Gain (max) |
Omni -Up to 3dBi Sector -Up to 8dBi |
|
Peak Transmit Power (aggregate across MIMO chains) |
24GHz: 28dBm 5GHz: 28dBm |
|
Minimum Receive Sensitivity |
-104dBm |
|
Frequency Bands |
ISM (24-2484GHz) U-NII-1 (515-525GHz) U-NII-2A (525-535GHz) U-NII-2C (547-5725GHz) U-NII-3 (5725-585GHz) |
|
Other Radio Technologies |
|
|
GPS |
Types GLONASetc |
|
Physical Interfaces |
|
|
Ethernet |
2 x 10/100/1000 Mbps ports, RJ-45 LACP |
|
Fiber |
SFP, 1Gbps, NBASE-x |
|
Physical Characteristics |
|
|
Physical Size |
317(L) x 241(W) x 95(H) cm 125(L) x 949(W) x 37(H) in |
|
Ingress Protection |
IP-67 |
|
Mounting |
Pole Mount Wall Mount Flat Surface Bracket included in the box |
|
Operating Temperature |
-40°C (-40°F) to 65°C (145°F) |
|
Operating Humidity |
Up to 95%, non-condensing |
|
Wind Survivabiity |
Up to 266km/h (165mph) |
|
Ruckus Radio Management |
|
|
Antenna Optimization |
BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
|
Wi-Fi Channel Management |
ChannelFly Background Scan Based |
|
Client Density Management |
Adaptive Band Balancing Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization |
|
SmartCast Quality of Service |
QoS-based scheduling Directed Multicast L2/L3/L4 ACLs |
|
Mobility |
SmartRoam |
|
Diagnostic Tools |
Spectrum Analysis SpeedFlex |
|
Networking |
|
|
Controller Platform Support |
SmartZone ZoneDirector Unleashed2 Cloud Standalone |
|
Mesh |
SmartMesh™ wireless meshing technology Self-healing Mesh |
|
IP |
IPv4, IPv6 |
|
VLAN |
8021Q (1 per BSSID or dynamic per use based on RADIUS VLAN Pooling Port-based |
|
8021x |
Authenticator & Supplicant |
|
Tunnel |
L2TP, GRE, Soft-GRE |
|
Policy Management Tools |
Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting |
|
Performance And Capacity |
|
|
Peak PHY Rates |
24GHz: 600Mbps 5GHz: 1733Mbps |
|
Client Capacity |
Up to 512 clients per AP |
|
SSID |
Up to 31 per AP |
