901-R750-WW00 Overview

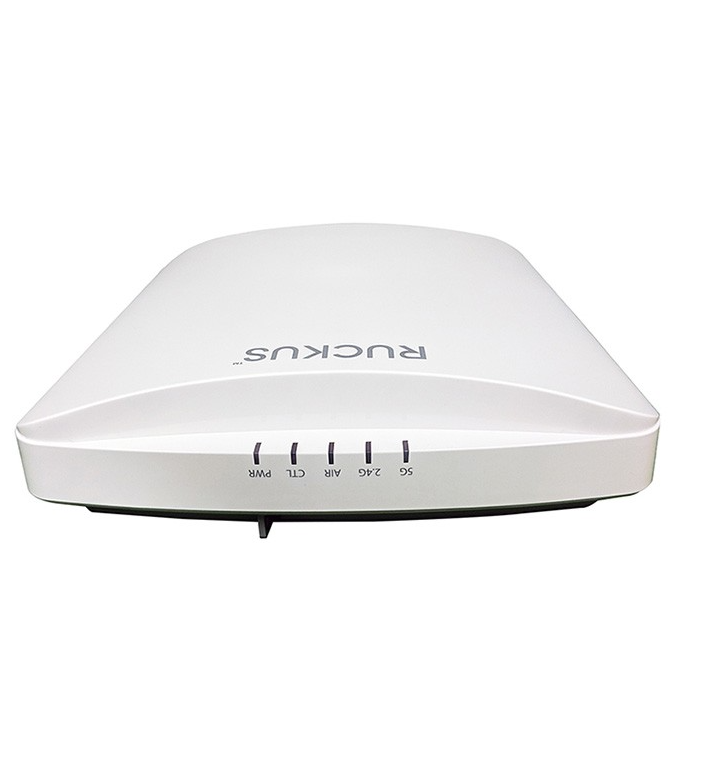

Ruckus 901-R750-WW00 is a ZoneFlex R750 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R750-WW00 |
|
Feature/Description |
High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
|
Maximum PHY rate |
2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
|
Concurrent users |
1024 |
|
Radio chains: streams |
4x4:4 |
|
Antenna patterns (per band) |
4,000+ |
Product Details
Ruckus ZoneFlex R750 AP provides these features:
Connect More Devices Simultaneously
Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
High Density Performance
Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms with the Ruckus Ultra-High-Density Technology Suite.
Converged Access Point
Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies through the USB port.
Multigigabit Access Speeds
Optimized multi-gigabit Wi-Fi performance delivered using the built-in 2.5GbE port to connect to multigigabit switches.
Multiple Management Options
Manage the R750 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
Enhanced Security
The latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.
More Than Wi-Fi
Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R750-WW00 |
|||
|
Feature/Description |
High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
|
Maximum PHY rate |
2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
4800 Mbps (5GHz) 1148 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ax (2.4 GHz, 5GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
1024 |
1024 |
512 |
512 |
|
Radio chains: streams |
4x4:4 |
8x8:8 |
4x4:4 |
4x4:4 SU-MIMO 4x4:3 MU-MIMO |
|
Antenna patterns (per band) |
4,000+ |
4,000+ |
4,000+ |
4,000+ |
Get More Information
Do you have any question about the 901-R750-WW00?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R750-WW00 Specification
901-R750-WW00 Specification |
|
|
Feature/Description |
High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
|
Maximum PHY rate |
2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
|
Concurrent users |
1024 |
|
Radio chains: streams |
4x4:4 |
|
Antenna patterns (per band) |
4,000+ |
|
Antenna gain |
Up to 3dBi |
|
PD-MRC |
Yes |
|
Rx sensitivity (2.4/5GHz) |
-102dBm |
|
ChannelFly |
Yes |
|
SmartMesh |
Yes |
|
USB (IoT Ready) |
Yes |
|
Ethernet ports |
1x1GbE 1x2.5GbE |
|
Integrated BLE/ZigBee |
Yes |
|
WLAN Control and Management |
· ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
