Ruckus

901-R550-WW00

  • Sale
  • Regular price $420.00
Tax included.


901-R550-WW00 Overview

Wireless
Connect the Internet More Convenient with Wireless Products.
Choose various wireless products to build a WiFi network, including access points, controllers, etc.

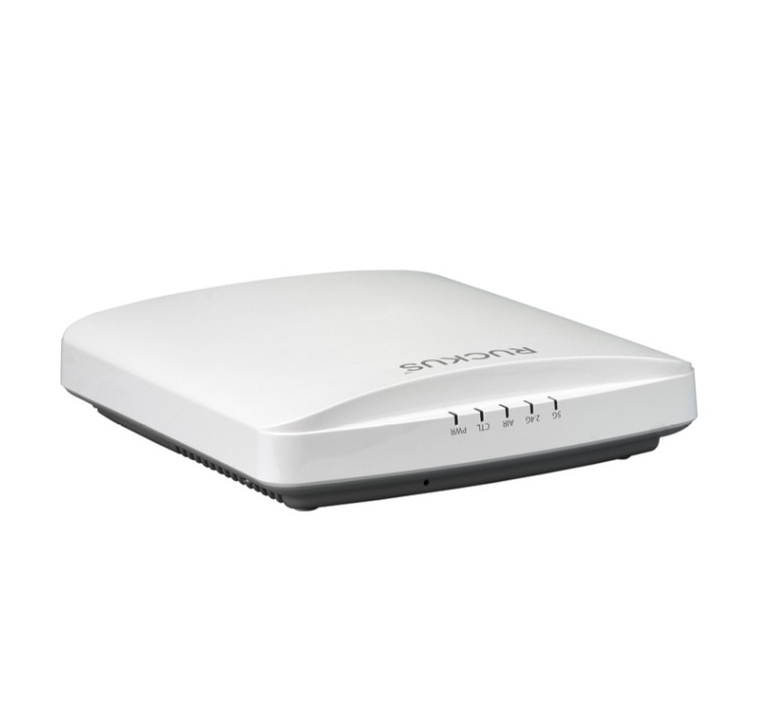

Ruckus 901-R550-WW00 is a ZoneFlex R550 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 2x2:2 + 2x2:2 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Not plenum rated. Includes adjustable acoustic drop ceiling bracket. Does not include power adaptor.

Quick Spec

Table 1 shows the quick spec.

Model

901-R550-WW00

Antenna Gain

Up to 3 dBi

Antenna Patterns, per band

64

BeamFlex

Yes

ChannelFly

Yes

Concurrent Users

512

Controller Support

Cloud | SmartZone | Standalone | ZoneDirector

Product Details

Ruckus ZoneFlex R550 AP provides these features:

Stunning Wi-Fi Performance

Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns.

Serve more devices

Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.

Converged access point

Allow customers to eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using built-in BLE and Zigbee, and also expand to any future wireless technologies.

Automate Optimal Throughput

ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

Better Mesh Networking

Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.

More than Wi-Fi

Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics.

Compare to Similar Items

Table 2 shows the comparison.

Model

901-R650-WW00

901-R510-WW00

901-R550-WW00

Maximum PHY rate

2400 Mbps (5GHz)

574 (2.4GHz)

867 Mbps (5GHz)

300 Mbps (2.4GHz)

1200 Mb/s (5GHz)

574 Mb/s (2.4GHz)

Concurrent users

512

512

512

Radio chains: streams

5GHz: 4x4:4 MU-MIMO

2.4GHz: 2x2:2 MU-MIMO

2x2:2

2x2:2 (5 GHz/2.4 GHz)

Antenna patterns (per band)

128

64

64

Antenna gain

Up to 3dBi

Up to 3dBi

Up to 3 dBi

Ethernet ports

1 x 1 GbE

1 x 2.5 GbE

2 x 1GbE

2 x 1GbE

Get More Information

Do you have any question about the 901-R550-WW00?

Contact us now via Live Chat or info@falcon-atlantic.net


901-R550-WW00 Specification

901-R550-WW00 Specification

Antenna Gain

Up to 3 dBi

Antenna Patterns, per band

64

BeamFlex

Yes

ChannelFly

Yes

Concurrent Users

512

Controller Support

Cloud | SmartZone | Standalone | ZoneDirector

Ethernet Ports

2 x 1GbE

IoT Ready

Yes

PD-MRC

Yes

PHY Rate at 2.4 GHz, maximum

574 Mb/s

PHY Rate at 5 GHz, maximum

1200 Mb/s

Radio Chains: Streams

2x2:2 (5 GHz/2.4 GHz)

Rx Sensitivity at 2.4 GHz

-97 dBm

Rx Sensitivity at 5 GHz

-97 dBm

SmartMesh

Yes

USB

USB 2.0

Venue Type

Education | Hospitality | Offices | Retail

Venue Sub-Type

Classroom | Hallway | Office Space

Wi-Fi Interface Standard

IEEE 802.11a/b/g/n/ac/ax

Wi-Fi Interface Standard at 2.4 GHz

802.11ax

Wi-Fi Interface Standard at 5 GHz

802.11ax

Operating Temperature

0 °C to +50 °C (+32 °F to +122 °F)
