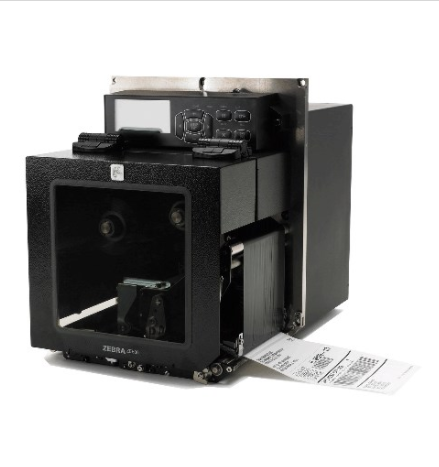

Zebra ZE500 Print Engine

The ZE500 series takes an innovative approach to OEM print engines.  Leveraging customer research, the design focuses on ease of use, integration and servicing.

Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

• Available in right and left hand configurations

• ZebraNet 10/100 Print Server (Internal)

• Embedded ZebraLink WebViewand Alert features

• Real Time Clock

• Applicator interface - provides status and control signals for applicators

• Communications via serial RS-232, IEEE 1284 bidirectional parallel interface with auto detect, and USB 2.0 port

• Full function graphic front panel and large multilingual back-lit LCD display with user programmable password protection

• Thin film print head with E3 Element Energy Equalizer

• Dual media sensors, transmissive and reflective, selectable through software or front panel

• ZPL or ZPL II programming language, selectable through software or front panel

• XML-Enabled Printing allows XML communications from todays enterprise systems for barcode label printing

• 32 bit 133 MHz RISC processor

• Zebra printer driver for Windows 7, XP, Vista, 2008, and 2003 operating systems

• Advanced media counters


• Resolution: 203 dpi (8 dots per mm); 300 dpi (12 dots per mm)

• Rotatable front panel display (0,180)

• 16MB SDRAM memory, 64MB Flash Memory
