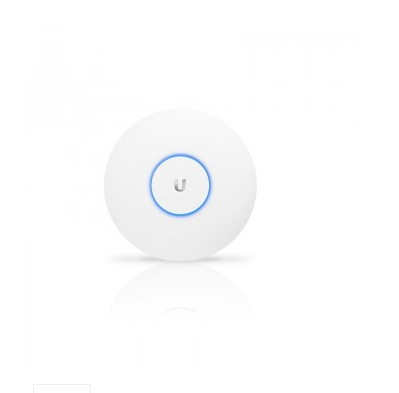

UAP-nanoHD Overview
The UniFi nanoHD is a compact 4x4 MU-MIMO 802.11ac Wave 2 dual-band access point with an aggregate radio rate of over 2 Gbps and supports over 200 concurrent users. Engineered to take advantage of 802.11ac Wave 2,the UniFi nanoHD provides powerful multi-user support in an elegant, nano-sized design.
Quick Specs
Table 1 shows the Quick Specs.
|
SKU |
UAP-nanoHD |
|
Dimensions |
160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29") |
|
Networking Interface |
(1) RJ45 GbE |
|
Buttons |
(1) Reset to Defaults |
|
Power Method |
802.3af |
|
Power Supply |
UniFi Switch (PoE) |
|
Max. Power Consumption |
10.5W |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac/ac-wave2 |
Product Details
UAP-nanoHD provides these features:
①Four-Stream 802.11ac Wave 2 Technology
②Simultaneous Dual-Band Radios
③Supports 200+ Concurrent Users
④5 GHz Band 4x4 Multi-User MIMO with Radio Rate of 1.733 Gbps
⑤2.4 GHz Band 2x2 MIMO with Radio Rate of 300 Mbps
⑥Powered by Gigabit 802.3af PoE+
Table 2 shows the supported switches.
|
Product Name |
Details |
|
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
|
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Name |
UAP-nanoHD |
||
|
Dimensions |
160 x 32.65 mm |
160 x 31.45 mm |
139.7 x 86.7 mm |
|
Environment |
Indoor |
Indoor |
Indoor |
|
2.4 GHz Radio Rate |
300Mbps |
300 Mbps |
300 Mbps |
|
5 GHz Radio Rate |
1733Mbps |
867 Mbps |
867 Mbps |
|
PoE Mode |
802.3af |
802.3af/A PoE & 24V PoE |
802.3at PoE+ |
|
Ports |
(1)10/100/1000 Ethernet |
(1)10/100/1000 Ethernet |
(3)10/100/1000 Ethernet |
Get More Information
Do you have any question about the UAP-nanoHD?
Contact us now via Live Chat or info@falcon-atlantic.net
UAP-nanoHD Specification
UAP-nanoHD Specification |
|
|
Dimensions |
160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29") |
|
Networking Interface |
(1) RJ45 GbE |
|
Buttons |
(1) Reset to Defaults |
|
Power Method |
802.3af |
|
Power Supply |
UniFi Switch (PoE) |
|
Max. Power Consumption |
10.5W |
|
Operating Frequency |
2.4 GHz |
|
Max. TX Power |
23 dBm |
|
Antenna Gain |
2.8 dBi |
|
MIMO |
2x2 |
|
Throughput |
300 Mbps |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac/ac-wave2 |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
BSSID |
8 per Radio |
|
Mounting |
Wall/Ceiling (Kits Included) |
|
Operating Temperature |
-10 to 70° C (14 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
