UBNT

UAP-FlexHD

Sale
Regular price $249.00

Tax included.

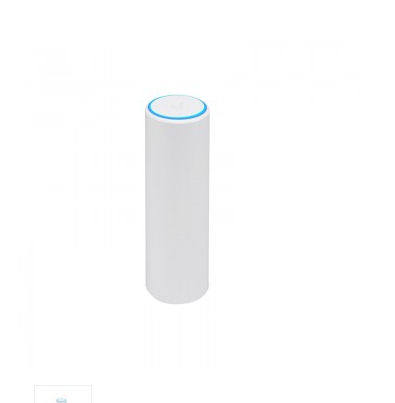

UAP-FlexHD Overview

Small and sleek, yet powerful, the 802.11ac 4x4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.

Quick Specs

Table 1 shows the Quick Specs.

SKU	UAP-FlexHD
Dimensions	Ø 48.50 x 159.49 mm (1.90 x 6.28")
Networking Interface	(1) 10/100/1000 Ethernet Port
Button	Reset
LED	System / Status
Power Method	802.3af
Power Supply	802.3af 48V, 0.32A Gigabit PoE Adapter
Max Power Consumption	10.5W
Voltage Range	44 - 57VDC

Product Details

UAP-FlexHD provides these features:

①802.11ac Wave 2 Technology

②5 GHz Radio: 802.11ac Wave 2, 4x4 MU-MIMO with Radio Rate of 1.733 Gbps

③2.4 GHz Radio 802.11n: 2x2 MIMO with Radio Rate of 300 Mbps

④Indoor and Outdoor Use

⑤Tabletop, Wall, and Pole Mounting Brackets Included

⑥Seamless Integration and Management with UniFi Network Solution

Table 2 shows the supported devices.

Supported Devices
US-8	UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch
US-8-60W	UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise
US-8-150W	UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch
US-16-150W	UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch
US-24	UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise
US-24-250W	UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch
USG-Pro-4	UBNT UniFi USG-PRO-4 Security Gateway USG Enterprise Wired Router, 1 Gigabit Ethernet, Dual-Core, 1G
UCK-G2-Plus	UBNT Wireless AP, AC Gen2 Controller, UCK-G2-Plus, Remote Management
UAP-FlexHD Ceiling Mount	UBNT UniFi UAP-FlexHD Ceiling Mount, Installation Accessories

Compare to Similar Items

Table 3 shows the comparison.

Product Name	UAP-FlexHD	UAP-AC-LR	UAP-AC-LITE
Dimensions	48.50 x 159.49 mm	175.7 x 43.2 mm	160 x 31.45 mm
Environment	Indoor and Outdoor	Indoor	Indoor
2.4 GHz Radio Rate	300 Mbps	450 Mbps	300 Mbps
5 GHz Radio Rate	1733 Mbps	867 Mbps	867 Mbps
PoE Mode	802.3af & 48V POE	802.3af/A PoE & 24V PoE	802.3af/A PoE & 24V PoE
Networking Interface	(1)10/100/1000 Ethernet Port	(1)10/100/1000 Ethernet	(1)10/100/1000 Ethernet

Get More Information

Do you have any question about the UAP-FlexHD?

UAP-FlexHD Specification

UAP-FlexHD Specification
Dimensions	48.50 x 159.49 mm (1.90 x 6.28")
Networking Interface	(1) 10/100/1000 Ethernet Port
Button	Reset
LED	System / Status
Power Method	802.3af
Power Supply	802.3af 48V, 0.32A Gigabit PoE Adapter
Max Power Consumption	10.5W
Voltage Range	44 - 57VDC
Operating Frequency	2.4 GHz 5 GHz
Max TX Power EIRP	2.4 GHz: 23 dBm 5 GHz: 26 dBm
Throughput	2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps
Antenna Gain	2.4 GHz: 1.6 dBi 5 GHz: 4 dBi
Wi-Fi Standards	802.11 a/b/g/n/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Mounting	Ceiling / Pole / Tabletop / Wall
Operating Temperature	-30 to 70° C (-22 to 158° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
