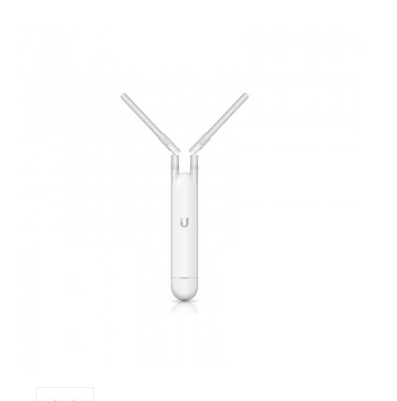

UAP-AC-M Overview
High-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point. Expand your Wi-Fi network outdoors with the UniFi AC Mesh Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
Quick Specs
Table 1 shows the Quick Specs.
|
SKU |
UAP-AC-M |
|
Dimensions |
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
|
Networking Interface |
2x2 WiFi dual band / Ethernet Gigabit |
|
Ports |
(1) 10/100/1000 Ethernet |
|
Buttons |
Reset |
|
Antennas |
2 Dualband antennas |
|
Wi-Fi Standards |
802.11a/b/g/n/ac |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter* |
|
Maximum Power Consumption |
8.5W |
Product Details
UAP-AC-M provides these features:
① Save Money and Save Time
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.
② Powerful Hardware
The UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
③ Expandable Unlimited scalability
Build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.
Table 2 shows the supported switches.
|
Product Name |
Details |
|
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
|
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Name |
UAP-AC-M |
|
|
Dimensions |
353 x 46 x 34.4 mm |
343.2 x 181.2 x 60.2 mm |
|
Buttons |
Reset |
Reset |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
(2)10/100/1000 Ethernet Port |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter |
PoE Injector 48VDC -0.5A Gigabit |
|
Maximum Power Consumption |
8.5W |
9W |
|
Wireless Communication Standard |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
Get More Information
Do you have any question about theUAP-AC-M?
Contact us now via Live Chat or info@falcon-atlantic.net
UAP-AC-M Specification
UAP-AC-M Specification |
|
|
Dimensions |
353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
|
Networking Interface |
2x2 WiFi dual band / Ethernet Gigabit |
|
Ports |
(1) 10/100/1000 Ethernet |
|
Buttons |
Reset |
|
Antennas |
2 Dualband antennas |
|
Wi-Fi Standards |
802.11a/b/g/n/ac |
|
Power Method |
24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter* |
|
Maximum Power Consumption |
8.5W |
|
Max TX Power |
20 dBm |
|
BSSID |
Up to Four per Radio |
|
Power Save |
Supported |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
Certifications |
CE, FCC, IC |
|
Mounting |
Wall/Pole/Fast-Mount (Kits Included) |
|
Operating Temperature |
-30 to 70° C (-22 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ADVANCED TRAFFIC MANAGEMENT |
|
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-User Rate Limiting |
|
Guest Traffic Isolation |
Supported |
|
WMM |
Voice, Video, Best Effort, and Background |
|
Concurrent Clients |
100+ |
|
SUPPORTED DATA RATES (MBPS) |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
802.11ac |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
