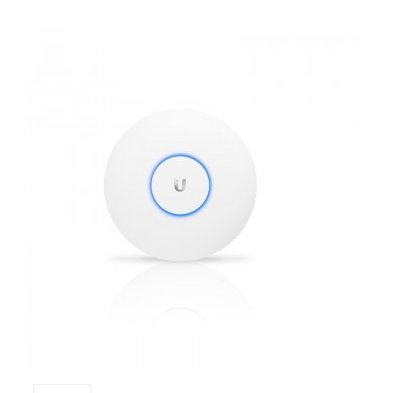

UAP-AC-LR Overview
Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients. It is available in single- and five‑packs2.
Quick Specs
Table 1 shows the Quick Specs.
|
SKU |
UAP-AC-LR |
|
Dimensions |
175.7 X 175.7 X 43.2 MM (6.92 X 6.92 X 1.70") |
|
Networking interface |
(1) 10/100/1000 ETHERNET PORT |
|
Ports |
NO |
|
Buttons |
RESET |
|
Wi-fi standards |
802.11 A/B/G/N/AC |
|
Power method |
PASSIVE POWER OVER ETHERNET (24V), (PAIRS 4, 5+; 7, 8 RETURN) |
|
Power supply |
24V, 0.5A GIGABIT POE ADAPTER |
|
Maximum power consumption |
6.5W |
|
Max tx power |
24 DBM |
Product Details
UAP-AC-LR shows the following features:
①Simultaneous Dual-Band Operation
②5 GHz Band with Speeds of up to 867 Mbps
③2.4 GHz Band with Speeds of up to 450 Mbps
④Range up to 183 meters (600 feet)
Table 2 shows the supported switches.
|
Product Name |
Details |
|
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
|
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
|
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
|
UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Name |
UAP-AC-LR |
||
|
Dimensions |
175.7 x 43.2 mm |
160 x 31.45 mm |
139.7 x 86.7 mm |
|
Environment |
Indoor |
Indoor |
Indoor |
|
2.4 GHz Radio Rate |
450 Mbps |
300 Mbps |
300 Mbps |
|
5 GHz Radio Rate |
867 Mbps |
867 Mbps |
867 Mbps |
|
PoE Mode |
802.3af/A PoE & 24V PoE |
802.3af/A PoE & 24V PoE |
802.3at PoE+ |
|
Ports |
(1)10/100/1000 Ethernet |
(1)10/100/1000 Ethernet |
(3)10/100/1000 Ethernet |
Get More Information
Do you have any question about the UAP-AC-LR?
Contact us now via Live Chat or info@falcon-atlantic.net
UAP-AC-LR Specification
|
UAP-AC-LR Specification |
|
|
Dimensions |
175.7 X 175.7 X 43.2 MM (6.92 X 6.92 X 1.70") |
|
Networking interface |
(1) 10/100/1000 ETHERNET PORT |
|
Ports |
NO |
|
Buttons |
RESET |
|
Antennas |
(1) DUAL-BAND ANTENNA, TRI-POLARITY, 2.4 GHZ: 3 DBI, 5 GHZ: 3 DBI |
|
Wi-fi standards |
802.11 A/B/G/N/AC |
|
Power method |
PASSIVE POWER OVER ETHERNET (24V), (PAIRS 4, 5+; 7, 8 RETURN) |
|
Power supply |
24V, 0.5A GIGABIT POE ADAPTER |
|
Maximum power consumption |
6.5W |
|
Max tx power |
24 DBM |
|
Bssid |
UP TO FOUR PER RADIO |
|
Power save |
SUPPORTED |
|
Wireless security |
WEP, WPA-PSK, WPA-ENTERPRISE (WPA/WPA2, TKIP/AES) |
|
Certifications |
CE, FCC, IC |
|
Mounting |
WALL/CEILING (KITS INCLUDED) |
|
Operating temperature |
-10 TO 70° C (14 TO 158° F) |
|
Operating humidity |
5 TO 95% NONCONDENSING |
|
ADVANCED TRAFFIC MANAGEMENT |
|
|
Vlan |
802.1Q |
|
Advanced qos |
PER-USER RATE LIMITING |
|
Guest traffic isolation |
SUPPORTED |
|
Wmm |
VOICE, VIDEO, BEST EFFORT, AND BACKGROUND |
|
Concurrent clients |
200+ |
|
SUPPORTED DATA RATES (MBPS) |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 MBPS |
|
802.11n |
6.5 MBPS TO 450 MBPS (MCS0 - MCS23, HT 20/40) |
|
802.11ac |
6.5 MBPS TO 867 MBPS (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
802.11b |
1, 2, 5.5, 11 MBPS |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 MBPS |
