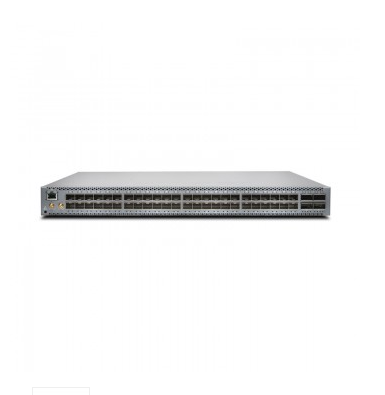

QFX5110-48S-AFO Overview
QFX5110 access and aggregation switches deliver low latency, rich Layer 2 and Layer 3 features, VXLAN overlay deployments, and 100GbE uplinks, making it the industry’s most nimble line of switches.
Featuring L3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5110 is designed for extremely agile data centers that demand support for overlay/underlay network architectures. The high-density 10GbE, 40GbE, and 100GbE ports also make the QFX5110 ideally suited for use in spine and leaf topologies.
Quick Spec
Table 1 shows the quick spec.
|
Product Code |
QFX5110-48S-AFO |
|
Dimensions (W x H x D) |
1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
|
Rack units |
1 U |
|
Weight |
23 lb (10.43 kg) |
|
Operating system |
Junos OS |
|
CPU |
1.8 GHz quad-core Intel CPU |
|
Power |
* AFO/AFI: Max load: 300 W, Typical load: 195 W, Idle load: 150 W * Dual redundant (1+1) and hot-pluggable power supplies * 110-240 V single phase AC power * -36 to -72 V DC power |
|
Cooling |
* Redundant (N+1) and hot-pluggable fan modules for front-to- back and back-to-front airflow * Redundant variable-speed fans to reduce power draw |
|
Total packet buffer |
16 MB |
|
Warranty |
Juniper standard one-year warranty |
|
System Throughput |
Up to 1.76 Tbps (bidirectional) |
|
Forwarding Capacity |
1.32 Bpps |
Product Details
The QFX5110-48S-AFO provides these features and benefits:
* Automation—The QFX5110 switches support a number of features for network automation and plug-and-play operations. Features include zero touch provisioning, operations and event scripts, automatic rollback, and Python scripting. The switch also supports integration with VMware NSX Layer 2 Gateway Services, and OpenStack.
* Flexible Forwarding Table—The QFX5110 includes a Unified Forwarding Table (UFT), which allows the hardware table to be carved into configurable partitions of Layer 2 media access control (MAC), Layer 3 host, and longest prefix match (LPM) tables. In a pure L2 environment, the QFX5110 supports 288,000 MAC addresses. In Layer 3 mode, the table can support 208,000 host entries. In LPM mode, it can support 128,000 prefixes. Junos OS provides configurable options through a CLI so that each QFX5110 can be optimized for different deployment scenarios.
* Intelligent Buffer Management—The QFX5110 switches have a total of 16 MB shared buffers. While 25% of the total buffer space is dedicated, the rest is shared among all ports and is user configurable. The intelligent buffer mechanism in the QFX5110 effectively absorbs traffic bursts while providing deterministic performance, significantly increasing performance over static allocation.
* MPLS—QFX5110 switches support a broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE), RSVP traffic engineering, and LDP to allow standards-based network segmentation and virtualization. This enables the QFX5110 to be deployed as a low-latency MPLS label-switching router (LSR).
* VXLAN Overlays—The QFX5110 switch is capable of supporting Layer 2 and Layer 3 gateway services. Customers can deploy overlay networks to provide Layer 2 adjacencies for applications over Layer 3 fabrics. The overlay networks utilize VXLAN in the data plane and EVPN or OVSDB to program the overlays. The overlays can operate without a controller, or they can be orchestrated with an SDN controller.
Get more information
Do you have any question about the QFX5110-48S-AFO?
Contact us now via Live Chat or info@falcon-atlantic.net
QFX5110-48S-AFO Specification
QFX5110-48S-AFO Specification |
|
|
Dimensions (W x H x D) |
1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
|
Rack units |
1 U |
|
Weight |
23 lb (10.43 kg) |
|
Operating system |
Junos OS |
|
CPU |
1.8 GHz quad-core Intel CPU |
|
Power |
* AFO/AFI: Max load: 300 W, Typical load: 195 W, Idle load: 150 W * Dual redundant (1+1) and hot-pluggable power supplies * 110-240 V single phase AC power * -36 to -72 V DC power |
|
Cooling |
* Redundant (N+1) and hot-pluggable fan modules for front-to- back and back-to-front airflow * Redundant variable-speed fans to reduce power draw |
|
Total packet buffer |
16 MB |
|
Warranty |
Juniper standard one-year warranty |
|
System Throughput |
Up to 1.76 Tbps (bidirectional) |
|
Forwarding Capacity |
1.32 Bpps |
|
Interface Options
|
* 1GbE SFP: 48 (24 copper 1GbE) * 10GbE SFP+: 48/64 (with breakout cable) * 40GbE QSFP+: 4 * 100GbE QSFP28: 4 |
|
Other Interface Notes
|
* Each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port * Each QSFP28 port can be configured as a 4 x 10GbE interface a 40 Gbps port or as a 100 Gbps port * 1 USB 2.0 port * 1 RS-232 console port * 2 management ports: 2x SFP fiber ports or 1x RJ-45 and 1x copper SFP ports * Supported transceiver and direct attach cable * SFP+ 10GbE optical modules * SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m active twinax copper * SFP GbE optical and copper module * QSFP+ DAC cables: 1/3/5 m twinax copper and 7/10 m active twinax copper * QSFP+ AOC cables: 1/3/5/7/10/15/20/30 m cable * QSFP+ Optics: SR4, LX4, ESR4, IR, LR4 * QSFP+ to SFP+ 10GbE direct attach breakout copper (1/3/10 m twinax copper and 5/7 m active twinax copper cable) * QSFP28 Optics: SR4, CWDM4, LR4 * QSFP28 AOC: 10 m cable |
|
MAC addresses per system |
288,000 |
|
VLAN IDs |
4,093 |
|
Number of link aggregation groups (LAGs) |
104 |
|
Number of ports per LAG |
32 |
|
Firewall filters (ingress / egress) |
6,142 / 1,022 |
|
IPv4 unicast routes |
128,000 prefixes; 208,000 host routes; 64 ECMP paths |
|
IPv4 multicast routes |
104,000 |
|
IPv6 unicast routes |
84,000 |
|
IPv6 multicast routes |
52,000 |
|
ARP entries |
48,000 |
|
Jumbo frame |
9,216 bytes |
|
Spanning Tree Protocol (STP) |
* Multiple Spanning Tree Protocol (MSTP) Instances: 64 * VLAN Spanning Tree Protocol (VSTP) Instances: 253 |
|
Traffic mirroring |
* Mirroring destination ports per switch: 4 * Maximum number of mirroring sessions: 4 * Mirroring destination VLANs per switch: 4 |
|
Operating temperature |
32° to 104° F (0° to 40° C) |
|
Storage temperature |
-40° to 158° F (-40° to 70° C) |
|
Operating altitude |
Up to 2,000 ft (610 m) |
|
Relative humidity operating |
Operating: 5% to 90% (noncondensing) |
|
Relative humidity non-operating |
Non-operating: 0% to 95% (noncondensing) |
