Opticon F-31

2D CMOS Imager 2D Barcode Scanning Module

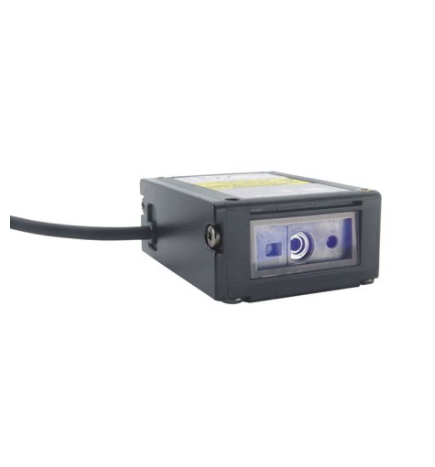

The F31, a fixed mount 2D CMOS imager from Opticon, featuring auto-focus, liquid lens technology. With auto-focus technology, the F31 quickly and efficiently scans 1D and 2D images; the real-time adapting liquid lens self-adjusts for distance and angle. It easily scans mobile phone screens!

The F31 is designed for aggressive reading of barcodes from varying distances, creating sharp contrast images from 5 cm up to 1.5 meter. Even barcodes on difficult to reach angles can easily be scanned.

The imager consists of a real-time adapting lens, a fast shutter speed and auto-contrast control. These technologies increase the resistance to hand movement and creates sharp contrast images for great performances. The auto-focus function improves the motion tolerance in such a way that labels can easily be scanned nearby, at far distances and difficult to reach angles.

• 2D CMOS imager with auto-focus technology scans to 80 frames per second

• Easily reads 1D and 2D barcodes even on mobile phone screens

• Picture-capture capability: view scanned images

• Compact size and weight 1.81W x 0.98L x 2.28D and 1.8 ounces

• Survives drop of 2.5 feet onto concrete

• Rugged IP42 rating sealed against dust and moisture

• Trigged modes: manual, multiple read, auto-trigger

• Communication interface: USB
