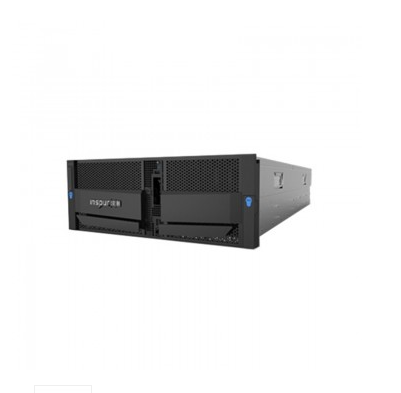

Inspur Yingxin NF5486M5 Overview
Inspur Yingxin NF5486M5 is ideal for Video storage and archive storage.
Quick Spec
Table 1 shows the quick spec.
|
Model |
NF5486M5 |
|
Processor |
2 Intel ®Xeon ® scalable processor and maximum TDP 105W |
|
Memory |
16 memory slots and maximum DDR4-2666 memory |
|
Storage controller |
Support 12Gb SAS controller |
|
Storage |
Support maximum 100* 3.5-inch hot plug SATA/SAS HDD and embedded 1 SATA M.2 |
|
I/O scaling |
Supports 1 PCIe x16 half-height card, 1 OCP （A/B/C）Mezz card and 1 PCIe x16 MEZZ card |
|
Network controller |
Provide 1 OCP Mezz card (A/B/C) and support 25Gb/40Gb/100Gb |
|
Power |
Support 2000W efficient redundant hot plug power supplies |
Product Details
Inspur NF5486M5 provides these features:
· Ultra-high density: The standard 4U space supports one hundred 3.5-inch hard drive to effectively improve space utilization rate of the machine room.
· Green energy saving: Supports on-demand power scheme and supports to control single hard drive power on/off via the system for reduced system power consumption.
· Stability and reliability: Adopt reinforced structural design and shock isolation design to enhance product reliability and reduce hard drive fault rate.
Get More Information
Do you have any question about the NF5486M5?
Contact us now via Live Chat or info@falcon-atlantic.net
Inspur Yingxin NF5486M5 Specification
NF5486M5 Specification |
|
|
Processor |
2 Intel ®Xeon ® scalable processor and maximum TDP 105W |
|
Memory |
16 memory slots and maximum DDR4-2666 memory |
|
Storage controller |
Support 12Gb SAS controller |
|
Storage |
Support maximum 100* 3.5-inch hot plug SATA/SAS HDD and embedded 1 SATA M.2 |
|
I/O scaling |
Supports 1 PCIe x16 half-height card, 1 OCP （A/B/C）Mezz card and 1 PCIe x16 MEZZ card |
|
Network controller |
Provide 1 OCP Mezz card (A/B/C) and support 25Gb/40Gb/100Gb |
|
Power |
Support 2000W efficient redundant hot plug power supplies |
