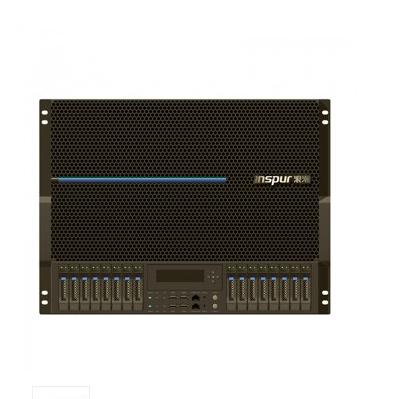

Inspur TianSuo TS860G3 System Overview

Check Inspur All Servers

View the overview of Inspur rack servers, tower servers and more products, and select the best one for your business.

• Inspur Rack Servers • Inspur Tower Servers • All Servers

Learn Details

Inspur TS860G3 is a new generation high-end eight-way server developed by Inspur independently, which adopts new computing platform to design, and it has five key features reaching the highest specification of the industry, with more than 60 RAS features, while its reliability could reach 99.999%. Inspur TS860G3 is strong in performance, stable and reliable, which is important equipment for information strategy and an idea l platform for cloud computing service, and it is engaged in core applications of key industries such as finance, telecommunication, government, energy and transportation etc.

Quick Spec

Table 1 shows the quick spec.

Model	Inspur TS860G3
Profile/height	Rack/8U
Processor	Support 8 Intel®Xeon® E7-4800 v3/v4, E7-8800 v3/v4 Processors
Cache	20MB-60MB, variable with different models of processor
Bus speed	6.4GT/s-9.6GT/s, variable with different models of processor
Memory	Support 192 DIMM memory sticks and expansion to 24TB memory at the maximum
Hard disk controller	Support 8-channel high-performance SAS Raid card; optional protected battery
RAID	Support Raid 1/0/10/5/50/6/60
Quantity of hard disks	Support 16 2.5” hot-plug SAS/SATA/SSD hard disks
IO expansion slot	26 standard PCI-E3.0 slots

Product Details

Inspur TS860G3 provides these features:

· Brand-new design and leading performances

· Ultrahigh expansion and extensive application

· Reliable and stable design

· Proprietary safety and energy efficiency design

· Simple and convenient monitoring and management

· Certificated for SAP HANA

Get More Information

Do you have any question about the Inspur TS860G3?

Inspur TianSuo TS860G3 System Specification

Inspur TS860G3 Specification
Profile/height	Rack/8U
Processor	Support 8 Intel®Xeon® E7-4800 v3/v4, E7-8800 v3/v4 Processors
Cache	20MB-60MB, variable with different models of processor
Bus speed	6.4GT/s-9.6GT/s, variable with different models of processor
Memory	Support 192 DIMM memory sticks and expansion to 24TB memory at the maximum
Hard disk controller	Support 8-channel high-performance SAS Raid card; optional protected battery
RAID	Support Raid 1/0/10/5/50/6/60
Quantity of hard disks	Support 16 2.5” hot-plug SAS/SATA/SSD hard disks
IO expansion slot	26 standard PCI-E3.0 slots
Integrated IO port	Front installation: 2 USB interfaces and 1 serial port Back installation: four 1G RJ45 network interfaces, two USB interfaces, one 1G management network interface and one VGA
Network controller	Integrated with 4 high-performance 1G network interfaces; support I/O AT2 advanced network acceleration; support VMDQ network virtualization technology; support network awakening, network redundancy, load balancing and other advanced features; integrated with one 1G management network interface
Power supply	8 super-platinum power source and can realize N+M/N+N redundancy
Display controller	Motherboard integrated with a display controller
Floppy disk drive	Virtual floppy disk drive with an USB interface as a standard configuration
Management features	Support remote control, IPMI2.0，KVM over IP，SOL，SNMP, etc Provide Ethernet management interface Support Inspur Ruijie management set Support virtual media Support management system redundancy Provided with optical passage status display for management and monitoring; optional HD smart management system
Operating system supported	Windows server 2008 R2 (dat acente version) Windows server 2012 R2 64bit Redhat enterprise linux server 6.x/7.x CentOS 6.x/7.x SUSE linux ent erprise server 12 VMware ESXi server 6.0 Incloud sphere V4
Working environment temperature	5°C-40°C
Power input	100VAC-240VAC, 240VDC
Case	830mm (L), 444mm (W), 352mm (H)
