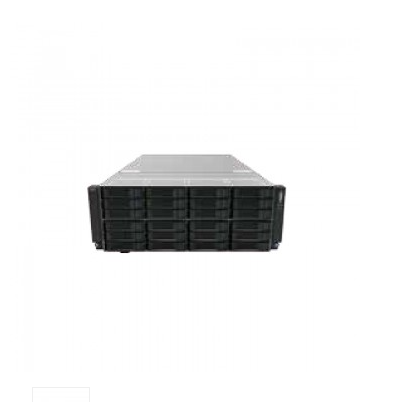

Inspur NF5466M5 Server Overview
Inspur NF5466M5 Server is a 4U dual-sockets storage-optimized rack-mounted server based on Intel® Xeon® Scalable processors. NF5466 is aimed to satisfy the needs of customers in the radio and television, communication, Internet, transportation, public security, medical care, education, finance and other industries.
Quick Spec
Table 1 shows the quick spec.
|
Model |
NF5466M5 |
|
Specifications |
4U rack-mounted server |
|
Processor |
Supporting 1-2 Intel ® Xeon® Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W |
|
GPU |
Supporting up to 2 full-width GPUs or 6 single-width GPUs |
|
Chipset |
Intel C622 |
|
Memory |
Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots). |
|
Supports ECC, memory mirroring and memory leveled protection.. |
|
|
Max memory capacity |
RDIMM: Two processors support at most 24* 64GB memories with capacity up to 1.5TB LRDIMM: Two processors support at most 24* 128GB memories with capacity up to 3TB |
Product Details
Inspur NF5466M5 server provides these features:
Massive storage
• Supporting up to 44* 3.5” hard drives + 4* 2.5” hard drives.
• Supporting up to 4* NVMe, meeting the demand of massive data fast access and low system power consumption in cloud computing, Internet and other industries.
Flexible storage
• Possibility of using one raid card to manage all hard drives to reduce costs.
• Supporting multiple kinds of storage media, an ideal infrastructure for distributed storage.
Powerful performance
• Adopts the cutting-edge Intel® Xeon® Scalable processors, which provide up to 28-core high-frequency CPUs.
• Supporting up to 2 full-width or 6 single-width GPUs to satisfy the needs in IVA scenario.
Smart management
• Compatible with the New-generation Inspur BMC, for management tasks automation, ensuring a stable server operation
• Supporting ISPIM which is Inspur self-developed infrastructure management platform that provides real-time status collections and alarms system.
• The Bluetooth-enabled smart management APP provides an easy and efficient O&M management.
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
NF5466M5 |
|
|
Specifications |
4U rack-mounted server |
2U |
|
Processor |
Supporting 1-2 Intel ® Xeon® Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W |
2 Intel Xeon Scalable processors, TDP up to 165W Maximum 28-core per processor 3.6 GHz preocessor speed, maximum depending on processor 38.5 MB L3 cache |
|
GPU |
Supporting up to 2 full-width GPUs or 6 single-width GPUs |
8 SXM2 GPU with NVLink 8 x SXM2 GPU on NVLink cube mesh with 2 x 96lane PCIe Switch，4 x PCIe x16 HHHL Rear slot 8 PCIe GPU with PCIe Switch 8 x PCIe3.0 x16 double width GPGPU |
|
Chipset |
Intel C622 |
Intel® C624 chipset |
|
Memory |
Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots). Supports ECC, memory mirroring and memory leveled protection.. |
16 DIMM slots, RDIMMs, LDIMMs and Apache Pass |
Get More Information
Do you have any question about the NF5466M5?
Contact us now via Live Chat or info@falcon-atlantic.net
Inspur NF5466M5 Server Specification
Inspur NF5466M5 Server Specification |
|
|
Specifications |
4U rack-mounted server |
|
Processor |
Supporting 1-2 Intel ® Xeon® Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W |
|
GPU |
Supporting up to 2 full-width GPUs or 6 single-width GPUs |
|
Chipset |
Intel C622 |
|
Memory |
Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots). |
|
Supports ECC, memory mirroring and memory leveled protection.. |
|
|
Max memory capacity |
RDIMM: Two processors support at most 24* 64GB memories with capacity up to 1.5TB LRDIMM: Two processors support at most 24* 128GB memories with capacity up to 3TB |
|
Storage |
Front panel: |
|
24* 3.5” SATA/SAS/SSD hot-pluggable Rear panel: |
|
|
16* 3.5” SATA/SAS/SSD hot-pluggable, or 12* 3.5” SATA/SAS/SSD + 4* 2.5” SATA/SAS/SSD/NVMe |
|
|
Internal storage: |
|
|
4* 3.5” SATA/SAS hot-pluggable |
|
|
M.2 & SD |
Two PCIe M.2 or two SATA M.2 Two TF cards |
|
Storage controller |
Integrated SATA controller, and supports PCIe external RAID controller |
|
Network interface |
Supporting OCP network card or PHY cards, and PCIe external card |
|
Supporting eight standard PCIe at most, one OCP network card (connector A) slot and one PHY card (connector C) slot |
|
|
I/O expansion slots |
Riser module 1: 3 PCIe 3.0 x8 interfaces |
|
Riser module 2: 3 PCIe3 .0 x8 interfaces |
|
|
Riser module 3: 2 PCIe 3.0 x8 interfaces |
|
|
Interfaces |
Front (chassis handle): |
|
1 VGA + 1 USB3.0 + 1 USB2.0 (supporting LCD) |
|
|
Rear: |
|
|
1 RJ45 + 1 VGA + 2 USB.3.0 + 1 COM |
|
|
Fan |
Supporting 4* 8056 N + 1 redundant fans |
|
Power supply |
1 + 1 redundancy power supply of 800W/1300W and higher |
|
System management |
One integrated independent 1000 Mbps network interface for remote management |
|
Operating system |
Microsoft Windows Server 2012/2016; SUSE Linux Enterprise Server 12; Red Hat Enterprise 7; CenterOS 7; Kylin 7.4 |
|
Mainframe dimensions |
446 (W) x 174.4 (H) x 818.7 (D) (mm) |
