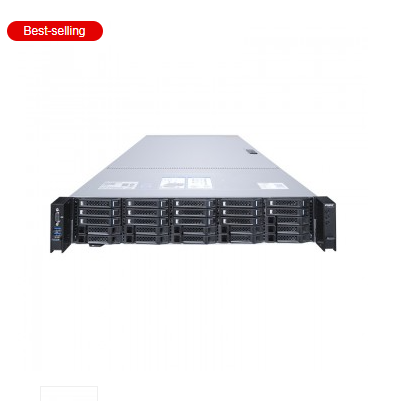

Inspur NF5270M5 Server 4*3.5/4210R/16G/2TB SATA/2*GE 550W Rail

Inspur Yingxin Server NF5270M5 has the performance of the whole machine while reducing the power consumption of the whole machine, and provides powerful flexible expansion capability. It is a mid-range that can flexibly cope with small-scale virtualization and provide caching and logging. Servers are the ideal platform for handling workloads such as big data and cloud.

Quick Spec

Table 1 shows the quick spec.

Product Details

Inspur NF5270M5 Server provides these features:

High cost performance

- Supports a new generation of Intel Xeon scalable processors with up to 26 cores per single CPU and up to TDP150W support.

- Up to 16 DDR4-2666 memory, up to 1TB of memory capacity, support for RDIMM, LRDIMM, NVDIMM, support for ECC, memory mirroring, hot standby.

- Supports 4 hot-swappable NVMe SSD configurations, providing 10 times more IOPs than high-end enterprise SATA SSDs, achieving a quantum leap in storage performance.

Flexible expansion capability

- The front supports 12 3.5" hard disks or 25 2.5" hard disks, and the rear 2 M.2 hard disks or 2 2.5" SATA hard disks, the storage capacity is significantly improved, and mass storage is realized.

- Support for two M.2 SSDs for faster and more secure OS booting.

- Supports six PCI-E 3.0 slots to meet the needs of high-end customers for system functionality and performance.

Safe and reliable, easy to use

- Based on the humanized design concept, most of the whole system can achieve tool-free maintenance. Through partial structural parts enhancement and optimization, quick disassembly and assembly is realized, and operation and maintenance time is greatly shortened.

- Through Inspur's intelligent control technology, internal heat dissipation optimization enables the server to operate stably at the 45-degree temperature.

- Applying BMC's latest technology, technicians can direct the device through the web management interface, fault diagnosis LED, etc., and can quickly find the component that has failed (or is failing) by marking the faulty machine with the UID indicator on the front panel. , which simplifies maintenance, speeds up problem resolution, and increases system availability.

- All plug-in components use a foolproof design for easier maintenance.

Compare to Similar Item

Table 2 shows the comparison.
