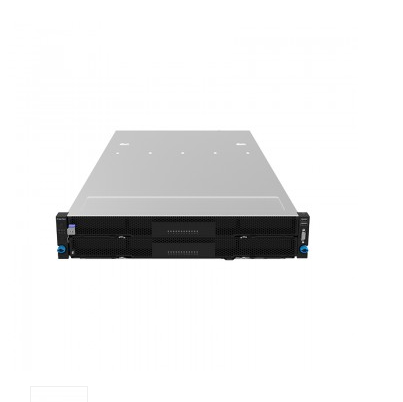

Inspur NF5266M5 Server

Tax included.

Inspur NF5266M5 Server Overview

Check Inspur All Servers

View the overview of Inspur rack servers, tower servers and more products, and select the best one for your business.

Inspur NF5266M5 Server is a high density 2U storage server.

Table 1 shows the quick spec.

Model	NF5266M5
Form Factor	2U Rackmount Server
Processor	Up to 2x Intel® Xeon® Processor Scalable Family Maximum TDP: 165W Interconnection: 2x UPI interconnection links, up to 10.4GT/s per link
Chipset	Intel LBG-2 (C622)
Memory	Slots: Up to 12x DDR4 DIMM slots Type: Support RDIMM /LRDIMM, speed up to 2933MT/s Maximum Capacity: Up to 768GB (64G*12 RDIMM/LRDIMM)
Storage	Front Storage: 24x 3.5”/2.5’’ hot-swap SATA/SAS drive Rear Storage: 4x 2.5” hot-swap SATA/SAS/NVMe drive

Inspur NF5266M5 Server provides these features:

- Extreme Computing Performance with the latest generation Intel® Xeon® Scalable Processor Family

- Supports high storage capacity with 24x SATA/SAS LFF; up to 336TB with 14TB LFF drives in a 2U system

- Optimized for hybrid storage workloads with 4x NVMe SSD for data caching

- Supports 2x PCIe/SATA M.2 for boot OS

Table 2 shows the comparison.

Model	NF5466M5	NF5266M5
Specifications	4U rack-mounted server	2U Rackmount Server
Processor	Supporting 1-2 Intel ® Xeon® Scalable processors (3100, 4100, 5100, 6100, 8100 series) : with up to 28 cores (2.5GHz), maximum frequency 3.6GHz (4 cores); Two UPI interconnecting links, of 10.4GT/s maximum ; Maximum L3 level cache 1.375MB per core; Maximum thermal design power 205W	Up to 2x Intel® Xeon® Processor Scalable Family Maximum TDP: 165W Interconnection: 2x UPI interconnection links, up to 10.4GT/s per link
Chipset	Intel C622	Intel LBG-2 (C622)
Memory	Supporting up to 24* 2666MT/s RDIMM/LRDIMM/DIMMs (each processor supporting 6 memory channels and each channel supporting 2 memory slots). Supports ECC, memory mirroring and memory leveled protection..	Slots: Up to 12x DDR4 DIMM slots Type: Support RDIMM /LRDIMM, speed up to 2933MT/s Maximum Capacity: Up to 768GB (64G*12 RDIMM/LRDIMM)

Do you have any question about the NF5266M5?

Inspur NF5266M5 Server Specification
Form Factor	2U Rackmount Server
Processor	Up to 2x Intel® Xeon® Processor Scalable Family Maximum TDP: 165W Interconnection: 2x UPI interconnection links, up to 10.4GT/s per link
Chipset	Intel LBG-2 (C622)
Memory	Slots: Up to 12x DDR4 DIMM slots Type: Support RDIMM /LRDIMM, speed up to 2933MT/s Maximum Capacity: Up to 768GB (64G*12 RDIMM/LRDIMM)
Storage	Front Storage: 24x 3.5”/2.5’’ hot-swap SATA/SAS drive Rear Storage: 4x 2.5” hot-swap SATA/SAS/NVMe drive
M.2	2x 2280mm SATA/PCLe M.2
I/O expansion slot	1x PCIe Gen3 x8 OCP 2.0 mezzanine slot or PHY card (CPU0) 2x PCIe Gen3 x8 LP MD-2 (CPU0) 2x PCIe Gen3 x16 LP MD-2 (CPU1)
I/O Port	2x front USB 3.0 ports, 2x rear USB 3.0 ports 1x front VGA port, 1x rear VGA port 1x rear RJ45 IPMI port
Fan	5x hot-swappable N+1 redundant 6038 fans
Power Supply	Support 1+1 redundant power supply 1300W (Input voltage: 100V-240V AC or 192V-300V DC) Support CRPS, PMBUS, Node Manager 4.0 functions
System Management	Integrate 1x dedicated 1000Mbps network interface for IPMI2.0 remote management
Operating Environment	Operating Temperature: 10℃ -35℃ Storage & Transportation Temperature: -40℃ -60℃ Operating Humidity: 20％ -80％ relative humidity Storage & Transportation Humidity: 20％ -93％ (40℃) relative humidity
Safety Certifications	FCC, UL, CE, CB, CCC
Dimensions	System: 87.5mm (H) x 446mm (W) x 850mm (D) Package: 279mm (H) x 721mm (W) x 1168mm (D)
