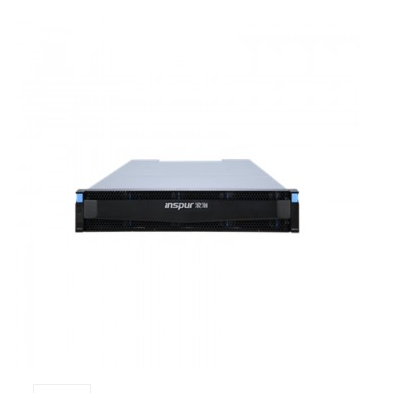

Inspur HF5500 Overview
Inspur HF5500 flash memory array uses an innovative "sequential data writing architecture", which organizes and aggregates data blocks of different sizes on the front-end application, and writes them to the back-end storage medium in a stripe order.
Quick Spec
Table 1 shows the quick spec.
|
Model |
HF5500 |
|
Controller module |
2-16 |
|
Control enclosure specifications |
2U25 |
|
System cache |
Support up to 2TB |
|
Supported storage protocols |
FC, FCoE, iSCSI, NFS, CIFS, HTTP, FTP |
|
Front-end port types |
16Gb FC, 8Gb FC, 10Gb FCoE, 1/10Gb Ethernet |
|
Number of hard drives/dual control |
1075 |
|
Expansion drawer specifications |
2U25 |
|
RAID level |
0，1，3，5，6，10，50，60 |
Product Details
Inspur HF5500 storage provides these features:
Optimization of the underlying architecture of the flash system
Inspur's HF5500 flash memory array uses an innovative "sequential data writing architecture". It organizes and aggregates data blocks of different sizes on the front-end application, and writes them to the back-end storage medium in a stripe order.
Using large-capacity SSD disks for data storage, while increasing capacity density, using hashed RAID to provide non-destructive performance and rapid reconstruction of capacity.
Unified storage
Unification of SAN + NAS: Block and File services can be provided in the same storage system, simplifying the data center architecture, reducing operation and maintenance costs, and flexibly responding to different business needs.
Unification of multiple protocols: Supports multiple protocols such as iSCSI, FC, NFS, CIFS, HTTP, FTP, etc., to meet the storage requirements of databases, file sharing, cloud computing and other applications.
Advanced architecture
Architecture: Inspur HF5500 flash memory array uses the industry-leading Active-Active storage architecture to achieve load balancing among controllers, eliminate controller performance bottlenecks, improve system high availability, and ensure business continuity.
Scale-Out architecture: Inspur HF5500 flash memory array supports online horizontal expansion, supports up to 16 controllers, and terabytes of cache, allowing users 'storage resources to grow linearly to meet the changing needs of customers' businesses.
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
HF5500 |
|
|
Controller module |
2-16 |
2-16 |
|
Control enclosure specifications |
2U25 |
2U25 |
|
System cache |
Support up to 2TB |
Support up to 1TB |
|
Supported storage protocols |
FC, FCoE, iSCSI, NFS, CIFS, HTTP, FTP |
FC、FCoE、iSCSI、NFS、CIFS、HTTP、NDMP、FTP |
|
Front-end port types |
16Gb FC, 8Gb FC, 10Gb FCoE, 1/10Gb Ethernet |
16Gb FC、8Gb FC、10Gb FCoE、1/10Gb iSCSI、56Gbps IB |
|
Number of hard drives/dual control |
1075 |
775 |
|
Expansion drawer specifications |
2U25 |
2U25 |
|
RAID level |
0，1，3，5，6，10，50，60 |
0，1，3，5，6，10，50，60 |
Get More Information
Do you have any question about the Inspur HF5500 Storage?
Contact us now via Live Chat or info@falcon-atlantic.net
Inspur HF5500 Specification
Inspur HF5500 Storage Specification |
|
|
Controller module |
2-16 |
|
Control enclosure specifications |
2U25 |
|
System cache |
Support up to 2TB |
|
Supported storage protocols |
FC, FCoE, iSCSI, NFS, CIFS, HTTP, FTP |
|
Front-end port types |
16Gb FC, 8Gb FC, 10Gb FCoE, 1/10Gb Ethernet |
|
Number of hard drives/dual control |
1075 |
|
Expansion drawer specifications |
2U25 |
|
RAID level |
0，1，3，5，6，10，50，60 |
|
High software level features |
Snapshot, mirroring, cloning, volume backup, thinning, Qos, NAS, HyperMetro, real-time compression, automatic tiering, remote replication, cloud backup, data migration, storage virtualization |
