FS-224E-POE Overview

Establish Fast and Easy-to-use Network by Powerful Switches.

Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.

• Access Switches • SMB Switches • Data Center Switches • Switch Selector

Check Now >

FS-224E-POE deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.

Quick Specs

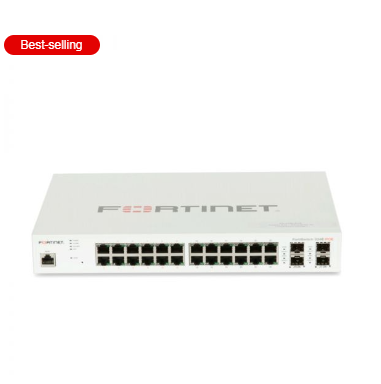

Figure 1 shows the appearance of FS-224E-POE.

Table 1 shows the Quick Specs.

Product Code	FS-224E-POE
Total Network Interfaces	24x GE RJ45 ports and 4x GE SFP ports
Power over Ethernet (PoE) Ports	12 (802.3af/802.3at)
PoE Power Budget	180 W
Height x Depth x Width (mm)	44 x 230 x 330
Power Required	100–240V AC, 50–60 Hz
Operating Temperature	32–122°F (0–50°C)

Product Details

Figure 2 shows the front panel of FS-224E-POE.

Figure 3 shows the back panel of FS-224E-POE.

FS-224E-POE provides these features:

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

Secure Access switches suitable for wiringcloset and desktop installations
Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
Devices are identified and users authenticated prior to being granted access to the network
Centralized security and access management from FortiGate interface
Up to 48 ports in a compact 1 RU form factor
Stackable up to 300 switches per FortiGate depending on model
Supports Wire-speed switching and Store and Forward forwarding mode

Compare to Similar Items

Table 2 shows the comparison of FS-224E-POE.

Module	FS-224E	FS-224E-POE
Total Network Interfaces	24x GE RJ45 ports and 4x GE SFP ports	24x GE RJ45 ports and 4x GE SFP ports
Switching Capacity (Duplex)	56 Gbps	56 Gbps
Packets Per Second (Duplex)	83 Mpps	83 Mpps
Power Consumption (Average / Maximum)	17.2 W / 17.3 W	220.18 W / 223.57 W
Redundant Power	Redundant AC	Optional FRPS-740
Heat Dissipation	59.095 BTU/h	74.29554 BTU/h
Power Required	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz

Get More Information

Do you have any question about the FS-224E-POE?

FS-224E-POE Specification

FS-224E-POE specification
Hardware Specifications
Total Network Interfaces	24x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100 Port	1
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	12 (802.3af/802.3at)
PoE Power Budget	180 W
Mean Time Between Failures	> 10 years
System Specifications
Switching Capacity (Duplex)	56 Gbps
Packets Per Second (Duplex)	83 Mpps
MAC Address Storage	16 K
Network Latency	< 1µs
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	Up to number of ports
Packet Buffers	1.5 MB
DRAM	512 MB
FLASH	128 MB
Dimensions
Height x Depth x Width (inches)	1.73 x 9 x 12.99
Height x Depth x Width (mm)	44 x 230 x 330
Power
Power Required	100–240V AC, 50–60 Hz
Power Supply	AC Built in
Redundant Power	Optional FRPS-740
Power Consumption (Average / Maximum)	220.18 W / 223.57 W
Heat Dissipation	74.29554 BTU/h
Environment
Operating Temperature	32–122°F (0–50°C)
Storage Temperature	-4–158°F (-20–70°C)
Humidity	10–90% non-condensing
