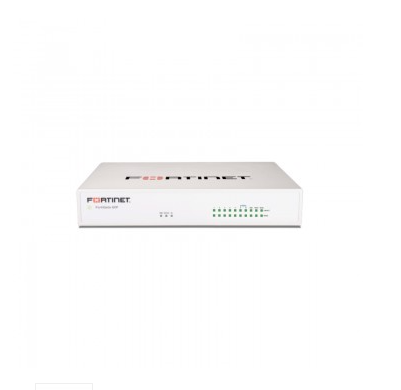

FG-60F

FG-60F Specification

Hardware Specifications

GE RJ45 WAN / DMZ Ports

2 / 1

GE RJ45 Internal Ports

5

GE RJ45 FortiLink Ports (Default)

2

Wireless Interface

-

USB Ports

1

Console (RJ45)

1

Internal Storage

-

System Performance — Enterprise Traffic Mix

IPS Throughput ²

1.4 Gbps

NGFW Throughput ^{2, 4}

1 Gbps

Threat Protection Throughput ^{2, 5}

700 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

10/10/6 Gbps

Firewall Latency (64 byte UDP packets)

3.3 μs

Firewall Throughput (Packets Per Second)

9 Mpps

Concurrent Sessions (TCP)

700,000

New Sessions/Second (TCP)

35,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte) ¹

6.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

500

SSL-VPN Throughput

900 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput (IPS, avg. HTTPS) ³

630 Mbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

400

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

55,000

Application Control Throughput (HTTP 64K) ²

1.8 Gbps

CAPWAP Throughput (HTTP 64K)

8 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

16

Maximum Number of FortiAPs (Total / Tunnel Mode)

64 / 32

Maximum Number of FortiTokens

500

High Availability Configurations

Active / Active, Active / Passive, Clustering

Dimensions

Height x Width x Length (inches)

1.5 x 8.5 x 6.3

Height x Width x Length (mm)

38.5 x 216 x 160 mm

Weight

2.23 lbs (1.01 kg)

Form Factor

Desktop

Radio Specifications

Multiple User (MU) MIMO

-

Maximum Wi-Fi Speeds

-

Maximum Tx Power

-

Antenna Gain

-

Operating Environment and Certifications

Power Rating

12Vdc, 3A

Power Required

Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz

Maximum Current

100Vac/1.0A, 240Vac/0.6A

Power Consumption (Average / Maximum)

17.0 W / 18.5 W

Heat Dissipation

63.1 BTU/hr

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity Humidity

10–90% non-condensing

Noise Level

Fanless 0 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
