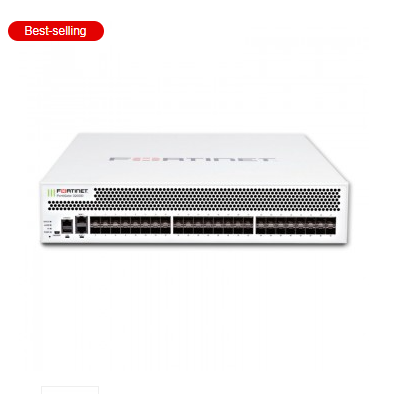

FG-3200D-DC Overview

The FortiGate 3200D series delivers high performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, superior security efficacy and high throughput of the 3200D series keeps your network connected and secure.
Quick Spec
Table 1 shows the quick spec of FG-3200D-DC.
Model |
FG-3200D-DC |
Firewall |
80 Gbps |
IPS |
26 Gbps |
NGFW |
24 Gbps |
Threat Protection |
15 Gbps |
Product Details
Figure 1 shows the ports of FG-3200D for reference. FG-3200D-DC is similar with it.
Note:
① |
Console Port |
④ |
GE RJ45 Management Port |
② |
USB Management Port |
⑤ |
GE RJ45 Management Port |
③ |
USB Port |
⑥ |
48x 10 GE SFP+ / GE SFP Slots |
FG-3200D provides these features:
Security
· Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
· Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
· Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services
Performance
· Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
· Provides industry-leading performance and protection for SSL encrypted traffic
Certification
· Independently tested and validated best security effectiveness and performance
· Received unparalleled third-party certifications from NSS Labs
Networking
· Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
· Delivers high-density, flexible combination of various highspeed interfaces to enable best TCO for customers for data center and WAN deployments
Management
· Includes management console that is effective, simple to use, and provides comprehensive network automation & visibility.
· Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
· Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture
Security Fabric
· Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
Compare to Similar Item
Table 2 shows the comparison.
Model |
FG-3200-DC |
|
Firewall |
80 Gbps |
80 Gbps |
NGFW |
24 Gbps |
24 Gbps |
Threat Protection |
15 Gbps |
15 Gbps |
Interfaces |
Multiple GE RJ45 and 10 GE SFP+ / GE SFP slots Dual DC power supplies. |
Multiple GE RJ45 and 10 GE SFP+ / GE SFP slots |
Get More Information
Do you have any question about the FG-3200D-DC?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-3200D-DC Specification
FG-3200D-DC Specification |
|
Interfaces and Modules |
|
10 GE SFP+ / GE SFP Slots |
48 |
GE RJ45 Management Ports |
2 |
USB Ports (Client / Server) |
1 / 1 |
Console Port |
1 |
Internal Storage |
2x 480 GB SSD |
Included Transceivers |
2x SFP+ (SR 10GE) |
System Performance — Enterprise Traffic Mix |
|
IPS Throughput 2 |
26 Gbps |
NGFW Throughput 2, 4 |
24 Gbps |
Threat Protection Throughput 2, 5 |
15 Gbps |
System Performance and Capacity |
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
80/ 80 / 50 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
80/ 80 / 50 Gbps |
Firewall Latency (64 byte, UDP) |
3 µs |
Firewall Throughput (Packet per Second) |
75 Mpps |
Concurrent Sessions (TCP) |
50 Million |
New Sessions/Second (TCP) |
400,000 |
Firewall Policies |
200,000 |
IPsec VPN Throughput (512 byte) 1 |
50 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels |
40,000 |
Client-to-Gateway IPsec VPN Tunnels |
200,000 |
SSL-VPN Throughput |
8 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
30,000 |
SSL Inspection Throughput (IPS, avg. HTTPS) |
17 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) |
11,000 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
3.5 Million |
Application Control Throughput (HTTP 64K) |
50 Gbps |
CAPWAP Throughput (1444 byte, UDP) |
22 Gbps |
Virtual Domains (Default / Maximum) |
10 / 500 |
Maximum Number of FortiSwitches Supported |
256 |
Maximum Number of FortiAPs (Total / Tunnel Mode) |
4,096 / 1,024 |
Maximum Number of FortiTokens |
20,000 |
Maximum Number of Registered FortiClients |
50,000 |
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
Dimensions and Power |
|
Height x Width x Length (inches) |
3.5 x 17.4 x 21.9 |
Height x Width x Length (mm) |
88 x 442 x 555 |
Form Factor |
2 RU |
DC Power Supply |
40.5–57V DC |
Power Consumption (Average / Maximum) |
350 W / 598 W |
Heat Dissipation |
2041 BTU/h |
Redundant Power Supplies |
Yes, Hot Swappable |
Operating Environment and Certifications |
|
Operating Temperature |
32–104°F (0–40°C) |
Storage Temperature |
-31–158°F (-35–70°C) |
Humidity |
10–90% non-condensing |
Noise Level |
50 dBA |
Operating Altitude |
Up to 7,400 ft (2,250 m) |
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
