FG-201E-BDL Overview
The FortiGate 200E series delivers next generation firewall capabilities for mid-sized to large enterprises,with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
FG-201E-BDL |
|
Firewall |
20 Gbps |
|
IPS |
2.2 Gbps |
|
NGFW |
1.8 Gbps |
|
Threat Protection |
1.2 Gbps |
|
Interfaces |
2x GE RJ45 Management/HA Ports 2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots |
Product Details

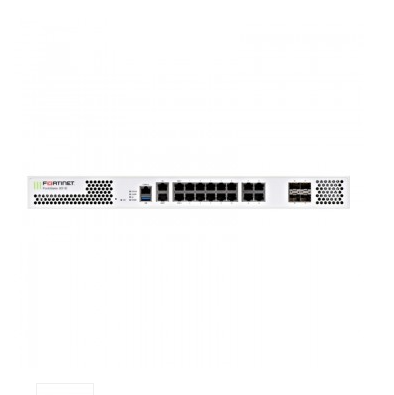

Figure 1 shows the front view of FG-200E. FG-201E-BDL is similar with it.
Note:
|
① |
Console Port |
|
② |
USB Port |
|
③ |
2x GE RJ45 Management/HA Ports |
|
④ |
2x GE RJ45 WAN Ports |
|
⑤ |
10x GE RJ45 Ports |
|
⑥ |
4x GE RJ45 Ports |
|
⑦ |
4x GE SFP Slots |
Figure 2 shows the rear view of FG-200E. FG-201E-BDL is similar with it.
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-201E-BDL.
|
Optional Accessories & Spares |
SKU |
Description |
|
1 GE SFP LX Transceiver Module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 Transceiver Module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
|
|
1 GE SFP SX Transceiver Module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
External redundant AC power supply |
External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B. |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Code |
FG-201E-BDL |
|
|
Firewall |
20 Gbps |
32 Gbps |
|
IPS |
2.2 Gbps |
5 Gbps |
|
NGFW |
1.8 Gbps |
3.5 Gbps |
|
Threat Protection |
1.2 Gbps |
3 Gbps |
|
Interfaces |
2x GE RJ45 Management/HA Ports 2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots |
Multiple GE RJ45 and GE SFP Slots |
|
Local Storage |
1x 480 GB SSD |
2x 240 GB SSD |
Get More Information
Do you have any question about the FG-201E-BDL?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-201E-BDL Specification
FG-201E-BDL Specification |
|
|
Interfaces and Modules |
|
|
GE SFP Slots |
4 |
|
GE RJ45 Interfaces |
14 |
|
GE RJ45 WAN Interfaces |
2 |
|
GE RJ45 Management/HA Ports |
2 |
|
USB Ports |
2 |
|
RJ45 Console Port |
1 |
|
Local Storage |
1x 480 GB SSD |
|
Included Transceivers |
0 |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
20 / 20 / 9 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 μs |
|
Firewall Throughput (Packet per Second) |
13.5 Mpps |
|
Concurrent Sessions (TCP) |
2 Million |
|
New Sessions/Second (TCP) |
135,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
7.2 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
10,000 |
|
SSL-VPN Throughput |
900 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
5,00 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
820 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
1,000 |
|
Application Control Throughput (HTTP 64K) |
3.5 Gbps |
|
CAPWAP Throughput (1444 byte, UDP) |
1.5 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
24 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
128 / 64 |
|
Maximum Number of FortiTokens |
5,000 |
|
Maximum Number of Registered FortiClients |
600 |
|
High Availability Configurations |
Active/Active, Active/Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
2.2 Gbps |
|
NGFW Throughput |
1.8 Gbps |
|
Threat Protection Throughput |
1.2 Gbps |
|
Dimensions and Environment |
|
|
Height x Width x Length |
1.75 x 17.0 x 11.9 inches 44.45 x 432 x 301 mm |
|
Form Factor |
Rack Mount, 1 RU |
|
Power |
100–240V AC, 50–60 Hz |
|
Maximum Current |
110 V / 3 A, 220 V / 0.42 A |
|
Power Consumption (Average / Maximum) |
70.98 / 109.9 W |
|
Heat Dissipation |
374.9 BTU/h |
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
31.1 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;IPv6 |
