FG-1500D Overview
FG-1500D is the Fortinet NGFW High-end Series FortiGate 1500D firewall. The FortiGate 1500D series delivers high performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/cloud edge, in the data center core or internal segments.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
FG-1500D |
|
Firewall |
80 Gbps |
|
IPS |
13 Gbps |
|
NGFW |
7 Gbps |
|
Threat Protection |
5 Gbps |
|
Interfaces |
8x 10 GE SFP+ slots 16x GE SFP slots 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) |
Product Details

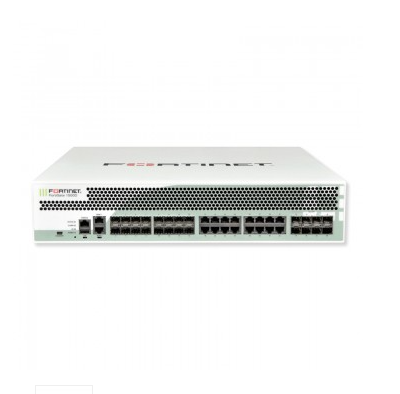

Figure 1 shows the front view of FG-1500D.
Note:
|
① |
Console Port |
|
② |
USB Management Port |
|
③ |
USB Port |
|
④ |
2x GE RJ45 Management Ports |
|
⑤ |
16x GE SFP Slots |
|
⑥ |
16x GE RJ45 Ports |
|
⑦ |
8x 10 GE SFP+ / GE SFP |
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-1500D.
|
Optional Accessories & Spares |
SKU |
Description |
|
1 GE SFP LX Transceiver Module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 Transceiver Module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
|
|
1 GE SFP SX Transceiver Module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Short Range |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Long Range |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE Copper SFP+ transceiver module, up to 30m |
10 GE copper SFP+ RJ45 transceiver. For FortiSwitch only, up to 30m |
|
|
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
|
|
Rack Mount Sliding Rails |
Rack mount sliding rails for FG-1000C/-DC, FG-1200D, FG-1500D/DC, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/-DC, FG-3100D/-DC, FG-3200D/-DC, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC |
|
|
AC Power Supply |
AC power supply for FG-1200D, FG-1240B, FG-1500D, FG-1500DT, FG-3040B and FG-3140B |
Related Products
Table 3 shows the bundle models and licenses of FG-1500D.
| Types | Model | Description |
| Basic Firewall | FG-1500D | Fortinet FG-1500D 8 x 10GE SFP+ slots, 16 x GE SFP slots, 18 x GE RJ45 ports (including 16 x ports, 2 x management/HA ports), SPU NP6 and CP8 hardware accelerated, 480GB SSD onboard storage |
| 1 year bundle | FG-1500D-BDL-950-12 | FG-1500D Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-1500D & FC-10-01500-950-02-12) |
| 1 year License | FC-10-01500-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-1500D |
| 3 year bundle | FG-1500D-BDL-950-36 | FG-1500D Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-1500D & FC-10-01500-950-02-36) |
| 3 year License | FC-10-01500-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-1500D |
| 5 year bundle | FG-1500D-BDL-950-60 | FG-1500D Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-1500D & FC-10-01500-950-02-60) |
| 5 year License | FC-10-01500-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-1500D |
Compare to Similar Item
Table 4 shows the comparison of FG-1500D and FG-1500D-DC.
|
Sku |
FG-1500D |
|
|
Firewall |
80 Gbps |
80 Gbps |
|
IPS |
13 Gbps |
13 Gbps |
|
NGFW |
7 Gbps |
7 Gbps |
|
Threat Protection |
5 Gbps |
5 Gbps |
|
Interfaces |
8x 10 GE SFP+ slots 16x GE SFP slots 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) |
8x 10 GE SFP+ slots 16x GE SFP slots 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) |
|
Power Supply |
AC Power Supply |
DC Power Supply |
Get More Information
Do you have any question about the FG-1500D?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-1500D Specification
FG-1500D Specification |
|
|
Type |
FORTIGATE 1500D |
|
Interfaces and Modules |
|
|
Hardware Accelerated 10 GE SFP+ / GE SFP Slots |
8 |
|
Hardware Accelerated GE SFP Slots |
16 |
|
Hardware Accelerated 10 GE RJ45 Ports |
— |
|
Hardware Accelerated GE RJ45 Ports |
16 |
|
GE RJ45 Management / HA Ports |
2 |
|
USB Ports (Client/Server) |
1 / 1 |
|
Console Port |
1 |
|
Onboard Storage |
2x 240 GB SSD |
|
Included Transceivers |
2x SFP+ (SR 10GE) |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
80 / 80 / 55 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
80 / 80 / 55 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 μs |
|
Firewall Throughput (Packet per Second) |
82.5 Mpps |
|
Concurrent Sessions (TCP) |
12 Million |
|
New Sessions/Second (TCP) |
300,000 |
|
Firewall Policies |
100,000 |
|
IPsec VPN Throughput (512 byte) |
50 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
20,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
100,000 |
|
SSL-VPN Throughput |
4 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10,000 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
5.7 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
3,100 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
800,000 |
|
Application Control Throughput (HTTP 64K) |
16 Gbps |
|
CAPWAP Throughput (1444 byte, UDP) |
20 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 250 |
|
Maximum Number of FortiSwitches Supported |
128 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
4,096 / 1,024 |
|
Maximum Number of FortiTokens |
20,000 |
|
Maximum Number of Registered FortiClients |
20,000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
13 Gbps |
|
NGFW Throughput |
7 Gbps |
|
Threat Protection Throughput |
5 Gbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
3.5 x 17.24 x 21.81 inches 89 x 438 x 554 mm |
|
Form Factor |
Rack Mount, 2 RU |
|
AC Power Supply |
100–240V AC, 50–60 Hz |
|
Power Consumption (Average / Maximum) |
336 / 403.2 W |
|
Heat Dissipation |
1,375 BTU/h |
|
Redundant Power Supplies |
Yes, Hot swappable |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
59 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
