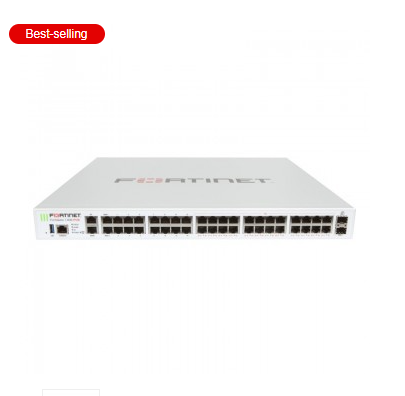

FG-140E-POE Overview
FG-140E-POE is the Fortinet NGFW Middle-range Series FortiGate 140E POE firewall, providing 24 x RJ45 GE POE/POE+ ports, 14 x switch ports, 1 x MGMT port, 1x HA port, 2 x WAN ports, 2 x GE SFP DMZ slots.
Quick Spec
Table 1 shows the quick spec.
|
Sku |
FG-140E-POE |
|
Firewall |
7.4 Gbps |
|
IPS |
500 Mbps |
|
NGFW |
360 Mbps |
|
Threat Protection |
250 Mbps |
|
Interfaces |
42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 24x RJ45 GE PoE/PoE+ ports, 14x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-140E-POE.
|
Optional Accessories & Spares |
SKU |
Description |
|
1 GE SFP LX Transceiver Module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 Transceiver Module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
|
|
1 GE SFP SX Transceiver Module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
External redundant AC power supply |
External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B. |
Compare to Similar Item
Table 3 shows the comparison of FG-140E-POE and FG-101E.
|
Sku |
FG-140E-POE |
|
|
Firewall |
7.4 Gbps |
7.4 Gbps |
|
IPS |
500 Mbps |
500 Mbps |
|
NGFW |
360 Mbps |
360 Mbps |
|
Threat Protection |
250 Mbps |
250 Mbps |
|
Interfaces |
42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 24x RJ45 GE PoE/PoE+ ports, 14x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
20 x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 14x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots) 480 GB onboard storage. Maximum managed FortiAPs (Total / Tunnel) 64 / 32 |
Get More Information
Do you have any question about the FG-140E-POE?
Contact us now via Live Chat or info@falcon-atlantic.net
FG-140E-POE Specification
FG-140E-POE Specification |
|
|
Type |
FORTIGATE 140E POE |
|
Interfaces and Modules |
|
|
GE RJ45 Ports |
14 |
|
GE RJ45 Management/HA/DMZ Ports |
1 / 1 / — |
|
GE SFP Slots |
2 |
|
GE RJ45 PoE/+ Ports |
24 |
|
GE RJ45 WAN Ports |
2 |
|
GE RJ45 or SFP Shared Ports |
— |
|
USB Port |
1 |
|
Console Port |
1 |
|
Internal Storage |
— |
|
Included Transceivers |
0 |
|
System Performance and Capacity |
|
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
7.4 / 7.4 / 4.4 Gbps |
|
Firewall Latency (64 byte, UDP) |
3 μs |
|
Firewall Throughput (Packet per Second) |
6.6 Mpps |
|
Concurrent Sessions (TCP) |
2 Million |
|
New Sessions/Second (TCP) |
30,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
4 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
10,000 |
|
SSL-VPN Throughput |
250 Mbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
130 Mbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
130 |
|
Application Control Throughput (HTTP 64K) |
1 Gbps |
|
CAPWAP Throughput (1444 byte, UDP) |
1.5 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
24 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
64 / 32 |
|
Maximum Number of FortiTokens |
5,000 |
|
Maximum Number of Registered FortiClients |
600 |
|
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
500 Mbps |
|
NGFW Throughput |
360 Mbps |
|
Threat Protection Throughput |
250 Mbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.75 x 17 x 15.5 inches 44.45 x 432 x 394 mm |
|
Form Factor |
Rack Mount, 1 RU |
|
AC Power Supply |
100–240V AC, 60–50 Hz |
|
Power Consumption (Average / Maximum) |
477.1 W / 500.0 W |
|
Heat Dissipation |
1706.07 BTU/h |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
57 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
