Fortinet

FG-100E-BDL-950-12

Sale
Regular price $2,715.00

Tax included.

FG-100E-BDL-950-12 Overview

The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises,with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	FG-100E-BDL-950-12
Firewall	7.4 Gbps
IPS	500 Mbps
NGFW	360 Mbps
Threat Protection	250 Mbps
Interfaces	2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 14x GE RJ45 Ports 2x GE RJ45/SFP Shared Media Pairs

Product Details

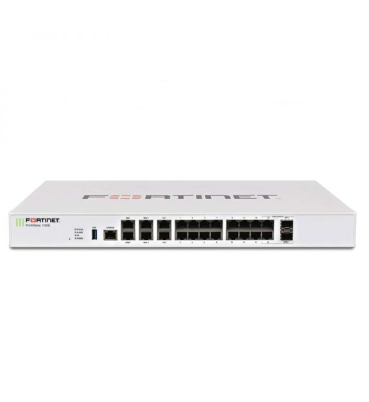

Figure 1 shows the front view of FG-100E. FG-100E-BDL-950-12 is similar with it.

Note:

①	USB Port
②	Console Port
③	2x GE RJ45 MGMT/DMZ Ports
④	2x GE RJ45 WAN Ports
⑤	2x GE RJ45 HA Ports
⑥	14x GE RJ45 Ports
⑦	2x GE RJ45/SFP Shared Media Pairs

The Optional Accessories & Spares

Table 2 shows the optional accessories or spares of FG-100E-BDL-950-12.

Optional Accessories &Spares	SKU	Description
1 GE SFP LX Transceiver Module	FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 Transceiver Module	FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX Transceiver Module	FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
External redundant AC power supply	FRPS-100	External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B.

Compare to Similar Items

Table 3 shows the comparison.

Product Code	FG-100E-BDL-950-12	FG-200E-BDL-950-36	FG-300E-BDL-950-36
Firewall	7.4 Gbps	20 Gbps	32 Gbps
IPS	500 Mbps	2.2 Gbps	5 Gbps
NGFW	360 Mbps	1.8 Gbps	3.5 Gbps
Threat Protection	250 Mbps	1.2 Gbps	3 Gbps
Interfaces	2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 14x GE RJ45 Ports 2x GE RJ45/SFP Shared Media Pairs	2x GE RJ45 Management/HA Ports 2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots	16 x GE SFP slots 16 x GE RJ45 ports 2x GE RJ45 MGMT/HA Ports

Get More Information

Do you have any question about the FG-100E-BDL-950-12?

FG-100E-BDL-950-12 Specification

FG-100E-BDL-950-12 Specification
Interfaces and Modules
GE RJ45 Ports	14
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	\
GE RJ45 PoE/+ Ports	\
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	2
USB Port	1
Console Port	1
Internal Storage	\
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput	2,500 Mbps
NGFW Throughput	2,4360 Mbps
Threat Protection Throughput	2,5250 Mbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte, UDP)	3 μs
Firewall Throughput (Packet per Second)	6.6 Mpps
Concurrent Sessions (TCP)	2 Million
New Sessions/Second (TCP)	30,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	10,000
SSL-VPN Throughput	250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	130
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	3125,000
Application Control Throughput (HTTP 64K)	1 Gbps
CAPWAP Throughput (1444 byte, UDP)	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel)	64 / 32
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions and Environment
Height x Width x Length	1.75 x 17.0 x 10.0 inches 44.45 x 432 x 254 mm
Form Factor	Rack Mount, 1 RU
Power Required	100–240V AC, 60–50 Hz
Maximum Current	100V / 0.52A, 240V / 0.22A
Total Available PoE Power Budget*	\
Power Consumption (Average / Maximum)	23.0 W / 28.6 W; 51.9 VA
Heat Dissipation	97.6 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;IPv6
