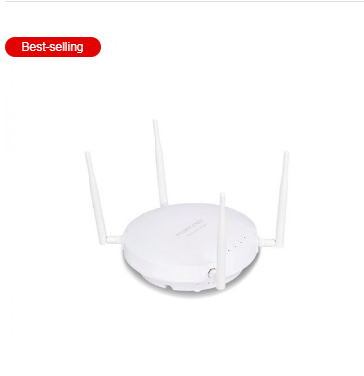

Fortinet

FAP-223E

Sale
Regular price $344.00

Tax included.

FAP-223E Overview

Connect the Internet More Convenient with Wireless Products.

Choose various wireless products to build a WiFi network, including access points, controllers, etc.

• WiFi 6 AP • 802.11ac Wave 2 AP • Outdoor AP • WLAN Controllers

Check Now

FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

Quick Spec

Table 1 shows the quick spec.

Product Code	FAP-223E
Hardware Type	Indoor AP
Number of Radios	2 + 1 BLE
Number of Antennas	4 Internal + 1 Internal BLE
Antenna Type and Peak Gain	Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities	2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities	5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate	Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power

Product Details

Fortinet FAP-223E provides these highlights:

* 802.11ac Wave 2

* Dual Radio 2.4 and 5 GHz

* 4 Internal/External Antennas

* 2x2 MU-MIMO

* Up to 400 + 867 Mbps

Get more information

Do you have any question about the FAP-223E?

FAP-223E Specification

FAP-223E Specification
Hardware
Hardware Type	Indoor AP
Number of Radios	2 + 1 BLE
Number of Antennas	4 Internal + 1 Internal BLE
Antenna Type and Peak Gain	Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)*	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities	2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities	5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate	Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces	1x 10/100/1000 Base-T RJ45
Power over Ethernet (PoE)	IEEE 802.3af
Simultaneous SSIDs	16 (14 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power	2.4 GHz: 23 dBm / 200 mW (2 chains combined) 5 GHz: 24 dBm / 251 mW (2 chains combined)
Kensington Lock	Yes
IEEE Standards	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3az
SSID Types Supported	Local-Bridge, Tunnel, Mesh
Per Radio Client Capacity	Up to 512
Cellular Co-existence	Yes
LED Off Mode Yes	Yes
Advanced 802.11 Features
802.11ac Wave 2 MU-MIMO	Yes
Transmit Beam Forming (TxBF)	Yes
Low-Density Parity Check (LDPC) Encoding	Yes
Maximum Likelihood Demodulation (MLD)	Yes
Maximum Ratio Combining (MRC)	Yes
Wireless Monitoring Capabilities
Rogue Scan Radio	Background, Full-time
WIPS / WIDS Radio Modes	Background, Full-time
Packet Sniffer Mode	Yes
Spectrum Analyzer	Yes Yes
Dimensions
Length x Width x Height	6.3 x 6.3 x 1.85 inches (160 x 160 x 47 mm)
Weight	1.1 lbs (0.5 kg)
Package (shipping) Weight	5.3 lbs (2.4 kg)
Mounting Options	Ceiling, T-Rail and Wall
Included Accessories	Mount kits for Ceiling, T-Rail, and Wall, 4 dipole antennas
Environment
Power Supply	SP-FAP200-PA-XX, GPI-115, or GPI-130
Power Consumption (Max.)	12.36 W
Humidity	5–90% non-condensing
Operating / Storage Temperature	-4–113°F (-20–45°C) / -40–158°F (-40–70°C) -4–113°F (-20–45°C) / -40–158°F (-40–70°C)
Directives	Low Voltage Directive • RoHS
UL2043 Plenum Material	Yes
Mean Time Between Failures	>30 Years
IP Rating	—
Surge Protection Built In	—
Hit-less PoE Failover	No
Certifications
Wi-Fi Alliance Certified	Yes
DFS	FCC, IC, CE, Japan, Taiwan, Korea
Warranty
Limited Lifetime Warranty Yes	Yes
* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.
