Key Features
- 24.2MP APS-C CMOS Sensor
- Dual Pixel CMOS AF II
- 4K30 Video, 4K60 with Crop; HDR-PQ
- 23 fps E. Shutter, 15 fps Mech. Shutter
- 2.36m-Dot OLED EVF
- 1.04m-Dot Vari-Angle Touchscreen LCD
- Multi-Function Shoe, Wi-Fi and Bluetooth
- RF-S 18-150mm f/3.5-6.3 IS STM Lens
Overview
Emphasizing portability without sacrificing on capability, the Canon EOS R10 is a sleek mirrorless camera with a hybrid ethos. Adept in both photo and video worlds, the R10 brings an APS-C sensor to the R system, along with high-speed shooting, intelligent AF, and impressive 4K video recording to complement a multimedia workflow.
24.2MP APS-C CMOS Sensor and DIGIC X Processing
APS-C Comes to EOS R
Sitting at a sweet-spot in terms of resolution, the 24.2MP APS-C CMOS sensor strikes a fine balance between resolution, file size, speed, and low-light performance. This sensor is suitable for general photo tasks along with UHD 4K recording, as the file sizes are manageable enough to allow for quick continuous burst shooting and extended video recording.
DIGIC X PXrocessor
Borrowed from the R3, the R10 sports a DIGIC X image processor to perform a variety of high-speed tasks, ranging from continuous shooting to high-resolution video recording. In terms of high-speed shooting, the R10 supports up to 23 fps continuous shooting with a silent electronic shutter or 15 fps with a mechanical shutter, with AF and AE readings before each frame. The processor also helps to realize a broad sensitivity range from ISO 100-32000, which is expandable up to ISO 51200 for working in difficult lighting conditions.
UHD 4K Video Recording
Beyond stills, the R10's sensor also offers high-res UHD 4K 8-bit recording, with the ability to record at up to 60p using a cropped portion of the sensor or at 30p when using an oversampled 6K recording area for improved sharpness, reduced moiré, and lower noise. And, for slow-motion playback, 120p recording is supported at up to Full HD resolution.
HDR-PQ recording is possible, too, for in-camera HDR production in 10-bit and external recording, via the micro-HDMI port, which supports a clean 4K output. Also, unlimited recording times are possible, too, and the R10 features an external microphone port as well as a multi-function shoe for wide accessories compatibility.
HDR-PQ recording is possible, too, for in-camera HDR production in 10-bit and external recording, via the micro-HDMI port, which supports a clean 4K output. Also, unlimited recording times are possible, too, and the R10 features an external microphone port as well as a multi-function shoe for wide accessories compatibility.
Dual Pixel CMOS AF II
Carried over from the EOS R3, the advanced Dual Pixel CMOS AF II system features 651 automatic AF points that covers the entire sensor area, for faster, more responsive, and more precise focusing performance. This phase-detection focusing system also has enhanced subject detection and tracking, with the ability to intelligently recognize people, animals, and vehicles and tracking will automatically lock onto these subjects and maintain sharp focus throughout burst captures. Dual Pixel AF II's low-luminance limit focuses down to an impressive -4 EV for accurate focusing even in nighttime conditions.
Body Design
Intuitive Construction
- Bright, clear 2.36m-dot OLED electronic viewfinder is featured for high-resolution eye-level viewing. This 0.95x-magnification finder is benefitted by the fast processing for virtually no lag and a quick 120-fps refresh rate can be used for vivid, realistic motion portrayal.

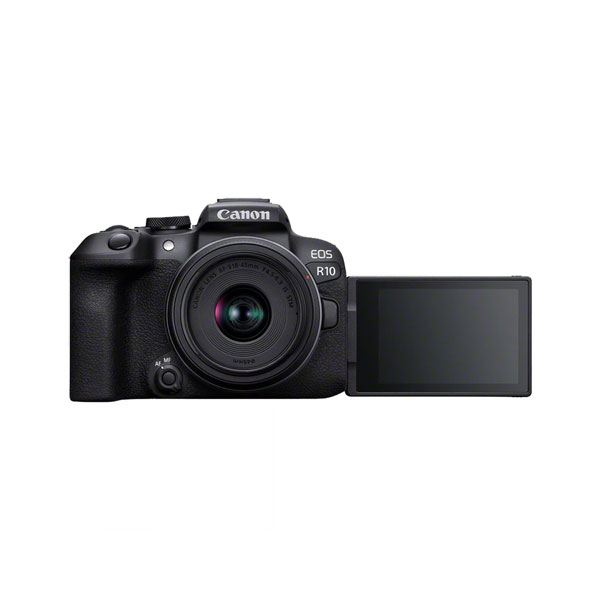

- A 3.0" vari-angle LCD is also available and benefits working high, low, and front-facing angles. The flexible position is complemented by a touchscreen interface and the clear 1.04m-dot resolution allows for vivid playback and live view monitoring.
- Single SD memory card slot is rated for UHS-II card speeds to support fluent 4K video recording and high-speed continuous shooting.
Flexible Connectivity

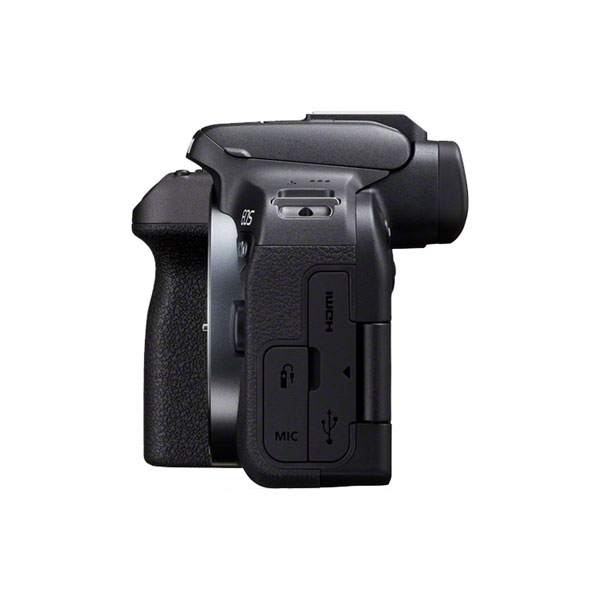

Wired and wireless connectivity options are available, allowing for multiple methods of transferring photos and videos, as well as for remotely controlling the camera. Physically, the camera features a USB Type-C port along and a micro-HDMI port, as well as a 3.5mm microphone port to benefit video recording. In terms of wireless, 2.4GHz Wi-Fi and Bluetooth is available for transferring and remote camera control.
Next-Generation Multi-Function Shoe
An update to a conventional hot shoe, the Multi-Function Shoe adds a row of pins at the front of the design to permit greater accessory functionality as well as provide power to select accessory types that traditionally rely on separate batteries. This updated shoe is compatible with select accessories, including the ST-E10 Speedlite Transmitter, DM-E1D Stereo Microphone, and AD-P1 Smartphone Link Adapter, as well as the AD-E1 Multi-Function Shoe Adapter to provide compatibility with legacy shoe-mounted accessories.
Canon RF-S 18-150mm f/3.5-6.3 IS STM Lens
Cover all your needs with one lightweight optic with the Canon RF-S 18-150mm f/4.5-6.3 IS STM Lens. Designed to be an all-around lens for Canon's APS-C R Series mirrorless cameras, it will offer an equivalent zoom range of 29-240mm which covers wide-angle to telephoto perspectives. The 18-150mm uses an UD elements along with two aspherical elements to create aberration-free imagery. A Super Spectra Coating further helps by minimizing ghosting and flaring.
Users will be able to make use of a customizable Control Ring for either manual focus or a programmable setting. Autofocus is smooth and quiet, great for stills and video, thanks to a lead screw-type STM stepping AF motor. Additionally, the lens has an Optical Image Stabilizer that will compensate for up to 4.5 stops of camera shake, or up to 6.5 stops with Coordinated IS when paired with a compatible camera.
Canon LP-E17 Lithium-Ion Battery Pack
The LP-E17 Lithium-Ion Battery Pack from Canon is designed for select EOS DSLR cameras and storage devices. It is compatible with the LC-E17 Charger, offers a capacity of 1040mAh, and has an output voltage of 7.2V. The battery is supplied with select cameras and is offered here as a spare or replacement.
Canon EOS R10 Mirrorless Camera Specs
Imaging
| Lens Mount | Canon RF |
| Sensor Resolution | Actual: 25.5 Megapixel Effective: 24.2 Megapixel |
| Image Sensor | 22.3 x 14.9 mm (APS-C) CMOS |
| Crop Factor | 1.6x |
| Image Stabilization | Digital (Video Only) |
| Built-In ND Filter | None |
| Capture Type | Stills & Video |
Exposure Control
| Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed | Mechanical Shutter 1/4000 to 30 Seconds Electronic Shutter 1/4000 to 30 Seconds |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity | Photo 100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200) |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting | Electronic Shutter Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 21 Frames (Raw) Mechanical Shutter Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 29 Frames (Raw) |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
Still Image Capture
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | C-RAW, HEIF, JPEG, Raw |
Video Capture
| Internal Recording Modes | H.264/MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps H.265/MP4 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps |
| Gamma Curve | HDR-PQ |
| Broadcast Output | NTSC/PAL |
| IP Streaming | Yes |
| Built-In Microphone Type | Stereo |
| Audio Recording | MP4: 2-Channel AAC Audio |
Interface
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1 x Micro-HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Other I/O | 1 x USB-C (USB 2.0) Input/Output 1 x 2.5 mm Sub-Mini Control |
| Wireless | 2.4 GHz Wi-Fi (802.11b/g) Bluetooth |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 3.0" |
| Resolution | 1,040,000 Dot |
| Display Type | Free-Angle Tilting Touchscreen LCD |
Viewfinder
| Type | Built-In Electronic (OLED) |
| Resolution | 2,360,000 Dot |
| Eye Point | 22 mm |
| Coverage | 100% |
| Magnification | Approx. 0.95x |
| Diopter Adjustment | -3 to +1 |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Photo, Video Phase Detection: 651 |
| Autofocus Sensitivity | -4 to +20 EV |
Flash
| Built-In Flash | Yes |
| Guide Number | 19.7' / 6 m at ISO 100 |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Hot Shoe |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
General
| Battery Type | 1 x LP-E17 Rechargeable Lithium-Ion |
| Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
| Dimensions (W x H x D) | 4.8 x 3.5 x 3.3" / 122.5 x 87.8 x 83.4 mm |
| Weight | 13.5 oz / 382.2 g (Body Only) 15.1 oz / 429.2 g (With Battery, Recording Media) |
Packaging Info
| Package Weight | 2.12 lb |
| Box Dimensions (LxWxH) | 11.5 x 8.2 x 6" |
Canon RF-S 18-150mm F/3.5-6.3 IS STM Lens Specs
| Focal Length | 18 to 150mm (35mm Equivalent Focal Length: 29 to 240mm) |
| Maximum Aperture | f/3.5 to 6.3 |
| Minimum Aperture | f/40 |
| Lens Mount | Canon RF |
| Lens Format Coverage | APS-C |
| Angle of View | 74° 20' to 10° 25' |
| Minimum Focus Distance | 6.7" / 17 cm |
| Maximum Magnification | 0.44x |
| Optical Design | 17 Elements in 13 Groups |
| Diaphragm Blades | 7, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | Yes |
| Filter Size | 55 mm (Front) |
| Dimensions (ø x L) | 2.7 x 5" / 69 x 126.7 mm |
| Weight | 10.9 oz / 310 g |
Packaging Info
| Package Weight | 0.975 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.4 x 4.2" |
Canon LP-E17 Lithium-Ion Battery Pack Specs
Battery
| Battery Series | Canon LP-E17 |
| Battery Capacity | 1040 mAh |
| Output Voltage | 7.2 VDC |
| Battery Chemistry | Lithium-Ion |
| Weight | 1.6 oz / 45.4 g |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 7.15 x 2.8 x 0.9" |
