Key Features EOS 90D 18-135
- 32.5MP APS-C CMOS Sensor
- DIGIC 8 Image Processor
- UHD 4K30p & Full HD 120p Video Recording
- 3" 1.04m-Dot Vari-Angle Touchscreen LCD
- 45-Point All Cross-Type AF System
- Dual Pixel CMOS AF with 5481 AF Points
- Up to 10-fps Shooting, ISO 100-25600
- Built-In Wi-Fi and Bluetooth
- EOS iTR AF, Electronic Shutter Function
- EF-S 18-135mm f/3.5-5.6 IS USM Lens
Situated as a versatile camera with capable photo and video traits, the Canon EOS 90D is a sleek DSLR also characterized by its high-resolution 32.5MP APS-C CMOS sensor. This updated sensor design achieves enhanced image clarity, resolution, and dynamic range, along with adept sensitivity to ISO 25600 and low noise to suit working in a variety of situations. Combined with advanced image processing, this sensor is also capable of outputting UHD 4K30p and Full HD 120p video, as well as supporting continuous stills shooting rates up to 10 fps. When working with the optical viewfinder, an apt 45-point all cross-type AF system affords fast performance in a range of lighting conditions for tracking moving subjects and working in low light, while the 5481-point Dual Pixel CMOS AF system benefits live-view shooting and movie recording by providing a smooth, natural focusing quality akin to the way a camcorder acquires focus. Complementing the imaging capabilities, the 90D sports a vari-angle touchscreen LCD for intuitive control and compositional freedom, and an optical pentaprism viewfinder provides a bright, clear, and realistic viewing means characteristic of the DSLR shooting experience. Additionally, built-in Wi-Fi and Bluetooth connectivity allow you to pair mobile devices with the camera to wirelessly transfer files for sharing your photos and movies online.
Canon EOS 90D DSLR Camera (Body Only)
Situated as a versatile camera with capable photo and video traits, the Canon EOS 90D is a sleek DSLR also characterized by its high-resolution 32.5MP APS-C CMOS sensor. This updated sensor design achieves enhanced image clarity, resolution, and dynamic range, along with adept sensitivity to ISO 25600 and low noise to suit working in a variety of situations. Combined with advanced image processing, this sensor is also capable of outputting UHD 4K30p and Full HD 120p video, as well as supporting continuous stills shooting rates up to 10 fps. When working with the optical viewfinder, an apt 45-point all cross-type AF system affords fast performance in a range of lighting conditions for tracking moving subjects and working in low light, while the 5481-point Dual Pixel CMOS AF system benefits live-view shooting and movie recording by providing a smooth, natural focusing quality akin to the way a camcorder acquires focus. Complementing the imaging capabilities, the 90D sports a vari-angle touchscreen LCD for intuitive control and compositional freedom, and an optical pentaprism viewfinder provides a bright, clear, and realistic viewing means characteristic of the DSLR shooting experience. Additionally, built-in Wi-Fi and Bluetooth connectivity allow you to pair mobile devices with the camera to wirelessly transfer files for sharing your photos and movies online.
32.5MP APS-C CMOS Sensor
When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that features 5481 selectable autofocus points. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. Dual Pixel CMOS AF integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

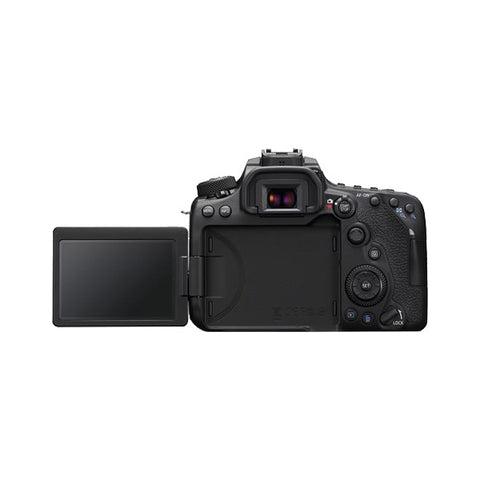

- Touchscreen 3.0" 1.04m-dot LCD monitor features a vari-angle design to permit working from high and low angles and the touchscreen design facilitates intuitive control over menu navigation and touch-to-focus operation.

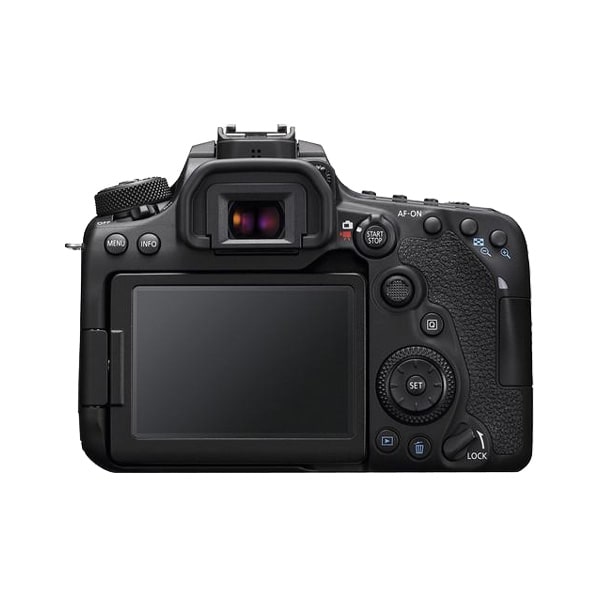

- The pentaprism type optical viewfinder offers 100% frame coverage for high compositional accuracy when shooting at eye-level. Additionally, further aiding shooting with the viewfinder, AF points and mode, compositional grids, a horizontal electronic level, and other assistive features can be displayed during use.
- Included LP-E6N battery provides approximately 1300 shots per charge.
- Built-in Wi-Fi allows for easy wireless sharing of both photos and movies to a linked mobile device and Bluetooth connectivity permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities when using the Canon Camera Connect app. This app also enables a mobile raw-editing workflow for greater post-production freedom.
Other Camera Features
- In-camera 4K time-lapses can be produced, along with 4K frame grabs for effectively shooting 8MP stills at up to 30 fps.
- A revised 220000-pixel AE metering sensor benefits both autofocus and exposure metering precision and enables Color Tracking for more accurately detecting skin colors.
- EOS iTR autofocus provides face detection for refined focus control when shooting portraits.
- Electronic shutter function permits working with shutter speeds up to 1/16000 of a second.
A versatile zoom optimized for both stills and video, the EF-S 18-135mm f/3.5-5.6 IS USM from Canon is a 28.8-216mm equivalent lens designed for APS-C-format DSLRs. Incorporating NANO USM technology, this lens is characterized by its combination of a fast, stills-optimized ring-type Ultrasonic Motor and smooth, silent video-optimized stepping motor for all-around focusing performance to benefit multimedia image-makers. This dual-purpose AF motor also offers notably quicker performance throughout the zoom range for more responsive shooting from near to far. Additionally, also aiding both photo and movie recording, an Image Stabilizer system compensates for up to four stops of camera shake for sharper handheld shooting. The lens is also compatible with the optional PZ-E1 Power Zoom Adapter for more natural and controllable zooming performance. Updated to suit the increasing presence of video in a photographer's workflow, this zoom is versatile in regard to both focus handling as well as with its wide-angle to telephoto reach.
In regard to the optical design, one ultra-low dispersion element is featured, along with one aspherical element, to reduce chromatic aberrations throughout the zoom range as well as limit spherical aberrations and distortions for increased clarity and sharpness.
- A standard zoom designed for APS-C-format Canon DSLRs, this 18-135mm lens provides a 28.8-216mm equivalent focal length range that covers wide-angle to telephoto perspectives.
- The optical design incorporates one UD element and one aspherical element to minimize chromatic and spherical aberrations throughout the zoom range for increased clarity.
- Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
- NANO USM system utilizes both a ring type USM and an STM mechanism to realize quick and accurate focusing that is also smooth and near-silent to suit both photography and video applications. This focusing system also affords full-time manual focus control when working in the one-shot AF mode.
- An Image Stabilizer compensates for up to four stops of camera shake for sharper handheld shooting when working in difficult lighting conditions and with slower shutter speeds.
- A rounded seven-blade diaphragm contributes to a pleasing bokeh quality when working with selective focus and shallow depth of field techniques.
- The optional PZ-E1 Power Zoom Adapter can be used for smoother, more natural and silent zooming control when recording video.
Canon EOS 90D DSLR Camera (Body Only) Specs
Imaging
Lens Mount | Canon EF-S |
Sensor Resolution | Actual: 34.4 Megapixel Effective: 32.5 Megapixel (6960 x 4640) |
Image Sensor | 22.3 x 14.8 mm (APS-C) CMOS |
Crop Factor | 1.6x |
Image Stabilization | Digital (Video Only) |
Mirror Lock-Up | Yes |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed | Mechanical Shutter 1/8000 to 30 Seconds Electronic Shutter 1/16000 to 30 Seconds |
Bulb/Time Mode | Bulb Mode |
ISO Sensitivity | Photo/Video 100 to 25,600 in Auto Mode (Extended: 100 to 51,200) |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) |
Metering Range | 1 to 20 EV |
White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Up to 10 fps at 32.5 MP for up to 25 Frames (Raw) / 58 Frames (JPEG) Up to 11 fps at 32.5 MP Up to 7 fps at 32.5 MP |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Still Image Capture
Image Sizes | 16:9 Raw 6960 x 3904 4:3 Raw 6160 x 4640 3:2 Raw 6960 x 4640 1:1 Raw 4640 x 4640 16:9 JPEG 6960 x 3904 4800 x 2688 3472 x 2952 2400 x 1344 4:3 JPEG 6160 x 4640 4256 x 3200 3072 x 2320 2112 x 1600 3:2 JPEG 6960 x 4640 4800 x 3200 3472 x 2320 2400 x 1600 1:1 JPEG 4640 x 4640 3200 x 3200 2300 x 2300 1600 x 1600 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | JPEG, Raw |
Bit Depth | 14-Bit |
Video Capture
Internal Recording Modes | H.264/MP4 UHD 4K (3840 x 2160) at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps 1280 x 720 at 50/59.94 fps |
External Recording Modes | 4:2:2 8-Bit via HDMI UHD 4K (3840 x 2160) up to 25/29.97 fps |
Recording Limit | Up to 30 Minutes |
Broadcast Output | NTSC |
IP Streaming | None |
Built-In Microphone Type | Stereo |
Audio Recording | AAC Audio |
Interface
Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1 x Mini-HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
Power I/O | None |
Other I/O | 1 x Micro-USB (USB 2.0) Data Output 1 x Canon E3 (2.5 mm Sub-Mini) Input |
Wireless | Wi-Fi, Bluetooth |
Mobile App Compatible | Yes *As of August, 2019: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 3.0" |
Resolution | 1,040,000 Dot |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Top: Status Display |
Viewfinder
Type | Optical (Pentaprism) |
Eye Point | 22 mm |
Coverage | 100% |
Magnification | Approx. 0.95x |
Diopter Adjustment | -3 to +1 |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Phase Detection: 45 (45 Cross-Type) Phase Detection: 5481 |
Autofocus Sensitivity | -3 to +18 EV |
Flash
Built-In Flash | Yes |
Flash Modes | Auto, Manual |
Guide Number | 39.37' / 12 m at ISO 100 |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe |
Operating Temperature | 32.0 to 104.0°F / 0.0 to 40.0°C |
Operating Humidity | 0 to 85% |
General
Battery Type | 1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh (Approx. 1300 Shots) |
Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
Accessory Mount | 1 x Hot Shoe Mount |
Material of Construction | Magnesium Alloy, Polycarbonate |
Dimensions (W x H x D) | 5.54 x 4.13 x 3.02" / 140.7 x 104.8 x 76.8 mm |
Weight | 1.54 lb / 701 g (Body Only) |
Packaging Info
Package Weight | 3.155 lb |
Box Dimensions (LxWxH) | 12.4 x 8.8 x 4.6" |
Canon EF-S 18-135mm F/3.5-5.6 IS USM Lens Specs
Focal Length | 18 to 135mm (35mm Equivalent Focal Length: 28.8 to 216mm) |
Maximum Aperture | f/3.5 to 5.6 |
Minimum Aperture | f/22 to 38 |
Lens Mount | Canon EF-S |
Lens Format Coverage | APS-C |
Angle of View | 74° 20' to 11° 30' |
Minimum Focus Distance | 1.28' / 39 cm |
Maximum Magnification | 0.28x |
Optical Design | 16 Elements in 12 Groups |
Diaphragm Blades | 7, Rounded |
Focus Type | Autofocus |
Image Stabilization | Yes |
Filter Size | 67 mm (Front) |
Dimensions (ø x L) | 3.05 x 3.78" / 77.4 x 96 mm |
Length at Maximum Extension | 5.67" / 144 mm |
Weight | 1.13 lb / 515 g |
