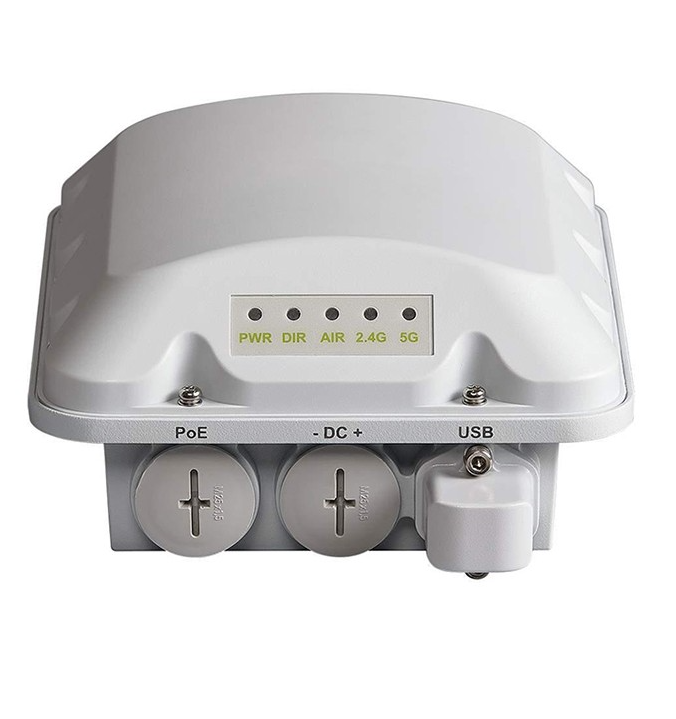

901-T310-WW51 Overview
RUCKUS T310 802.11ac Wave 2 series is designed with more variety than any other outdoor AP in the market today. The T310 Series uses patented RUCKUS antenna optimization and interference mitigation technologies to improve throughput, connection reliability, and deliver industry-leading 802.11ac Wave 2 performance to every connected client.
Quick Specs
Table1 shows the Quick Specs.
|
SKU |
901-T310-WW51 |
|
Concurrent Users |
512 |
|
Ethernet Ports |
1 x 1GbE |
|
Fiber Interface |
No |
|
USB |
1 USB 2.0 port, Type A |
|
PHY Rate at 2.4 GHz, maximum |
300 Mb/s |
|
PHY Rate at 5 GHz, maximum |
867 Mb/s |
|
Radio Chains and Streams |
2x2:2 |
Product Details
RUCKUS -901-T310-WW51 has these key features:
①Variety
One size does NOT fit all. The T310 series offers the broadest variety of APs in the market today with options of power, antenna design, and/or IoT support. All these enable customers to meet specific use case needs that may not be possible with standard APs.
②Simplicity
Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™.
③Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
④Great Outdoor Wi-Fi
Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.
⑤Multiple Management Options
Manage the T310 Series with physical or virtual controller appliances.
⑥Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
⑦Get Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
⑧More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
901-T310-WW51 |
|||
|
Ethernet |
1 x 1GbE port, RJ-45 |
1 x 1GbE port, RJ-45 |
1 x 1GbE port, RJ-45 |
1 x 1GbE port, RJ-45 |
|
USB |
1 USB 2.0 port, Type A |
No |
1 USB 2.0 port, Type A |
1 USB 2.0 port, Type A |
|
DC Power |
12V DC Terminal Block (8V - 20V) |
No |
12V DC Terminal Block (8V - 20V) |
12V DC Terminal Block (8V - 20V) |
|
Physical Size |
26(L) x 20.9(W) x 10.3(H) cm
|
18.1(L) x 15.1(W) x 7.9 (H) cm |
18.1(L) x 15.1(W) x 7.9 (H) cm |
26(L) x 20.9(W) x 10.3(H) cm
|
|
Ingress Protection |
IP-67 |
IP-67 |
IP-67 |
IP-67 |
Get More Information
Do you have any question about the 901-T310-WW51?
Contact us now via Live Chat or info@falcon-atlantic.net
901-T310-WW51 Specification
901-T310-WW51 Specification |
|
|
WI-FI |
|
|
Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac Wave 2 |
|
Supported Rates |
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS=1to2 for VHT20/40/80 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps |
|
Supported Channels |
2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165 |
|
MIMO |
2x2 SU-MIMO 2x2 MU-MIMO |
|
Spatial Streams |
2 SU-MIMO 2 MU-MIMO |
|
Radio Chains and Streams |
2x2:2 |
|
Channelization |
20, 40, 80MHz |
|
Security |
WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK WIPS/WIDS |
|
Other Wi-Fi Features |
WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v Hotspot, Hotspot 2.0 Captive Portal WISPr |
|
Antenna Type |
BeamFlex+ adaptive antennas with polarization diversity |
|
BeamFlex+ SINR Transmit Power Gain |
Up to 6 dB |
|
Ruckus Radio Management |
|
|
Antenna Optimization |
BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
|
Wi-Fi Channel Management |
ChannelFly Background Scan Based |
|
Client Density Management |
Adaptive Band Balancing Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization |
|
SmartCast Quality of Service |
QoS-based scheduling Directed Multicast L2/L3/L4 ACLs |
|
Mobility |
SmartRoam |
|
Diagnostic Tools |
Spectrum Analysis SpeedFlex |
|
Networking |
|
|
Controller Platform Support |
SmartZone ZoneDirector Unleashed Cloud Standalone |
|
Mesh |
SmartMesh™ wireless meshing technology. Self-healing Mesh |
|
IP |
IPv4, IPv6 |
|
VLAN |
802.1Q (1 per BSSID or dynamic per use based on RADIUS) VLAN Pooling Port-based |
|
802.1x |
Authenticator & Supplicant |
|
Tunnel |
L2TP, GRE, soft-GRE |
|
Policy Management Tools |
Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting |
|
IoT Capbale |
Yes |
|
Physical Interfaces |
|
|
Ethernet |
1 x 1GbE port, RJ-45 |
|
USB |
1 USB 2.0 port, Type A |
|
Ingress Protection |
IP-67 |
|
Physical Characteristics |
|
|
Physical Size |
18.1(L) x 15.1(W) x 7.9 (H) cm 7.1(L) x 5.9(W) x 3.1(H) in. |
|
Ingress Protection |
IP-67 |
|
Mounting |
Wall, Drop ceiling, Desk Pole Mount Diameter 1" to 2.5" |
|
Operating Temperature |
-20ºC -(4ºF) to 65ºC (149ºF) |
|
Operating Humidity |
Up to 95%, non-condensing |
|
Performance And Capacity |
|
|
Peak PHY Rates |
2.4GHz: 300Mbps 5GHz: 867Mbps |
|
Client Capacity |
Up to 512 clients per AP |
|
SSID |
Up to 31 per AP |
