901-T300-WW01 Overview

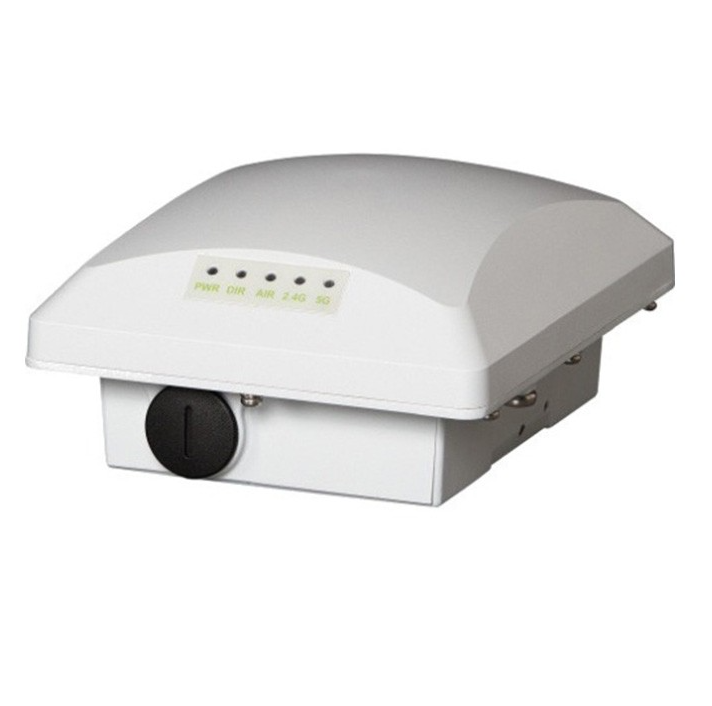

The RUCKUS T300, a dual-band 802.11ac outdoor access point (AP), is designed explicitly for high density public venues such as airports, conventions centers, plazas & malls, and other dense urban environments. Designed for easy installation within an ultra-lightweight and low profile enclosure, the T300 is ideal for venue owners and enterprises looking to quickly and economically deploy Wi-Fi in high-capacity environments.
Quick Specs
Table1 shows the Quick Specs.
|
SKU |
901-T300-WW01 |
|
Ethernet Ports |
1 x 1GbE |
|
WiFi Standards |
5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n |
|
Mounting Options |
Wall Mount Pole Mount Diameter 1” to 2.5” |
|
Power |
802.3af PoE Input (Class 3 PD) |
|
Physical Size |
18 cm (L) x 15 cm (W) x 8.6 cm (H) |
|
Maximum Tx Power1 |
26 dBm for 2.4GHz 25 dBm for 5.0GHz |
|
RF Connections |
N female qty 2 |
Product Details
RUCKUS -901-T300-WW01 has these key features:
①High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity.
②Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation.
③Highly Scalable
The ability to cost effectively scale high density networks
④Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels.
⑤Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors.
⑥Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation
⑦Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
901-T300-WW01 |
|
|
Physical Size |
18 cm (L) x 15 cm (W) x 8.6 cm (H) in |
125(L) x 949(W) x 37(H) in |
|
Wi-Fi Standards |
5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n |
IEEE 80211a/b/g/n/ac Wave 2 |
|
Operating Temperature |
-20°C to +65° C |
-40°C (-40°F) to 65°C (145°F) |
Get More Information
Do you have any question about the 901-T300-WW01?
Contact us now via Live Chat or info@falcon-atlantic.net
901-T300-WW01 Specification
RUCKUS T300 Specification |
|
|
Wi-Fi |
|
|
Standards |
5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n |
|
Frequency Bands |
IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US) IEEE 802.11ac 5GHz U-NII-1 5.15-5.25 GHz U-NII-2 5.25-5.35 (DFS) U-NII-2B 5.37-5.47† U-NII-2C 5.47-5.725 (DFS) U-NII-3 5.725-5.825 ISM 5.725 – 5.875 U-NII-4 5.85-5.925† |
|
WLAN Radio Configuration |
Dual band concurrent 2 x 2:2 stream radios |
|
Maximum Tx Power1 |
26 dBm for 2.4GHz 25 dBm for 5.0GHz |
|
Channelization |
2.4GHz 802.11b/g/n 20/40 MHz 5GHz 802.11a/n/ac 20/40/80 MHz |
|
BSSID |
Up to 32 (27 configurable) on 2.4 GHz Up to 16 (13 configurable) on 5 GHz |
|
Physical Characteristics |
|
|
Power |
802.3af PoE Input (Class 3 PD) |
|
Physical Size |
18 cm (L) x 15 cm (W) x 8.6 cm (H) 7 in (L) x 5.9 in (W) x 3.4 in (H) |
|
Ethernet Ports |
10/100/1000Base-T 802.3,802.3 u,802.3ab 802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU) |
|
RF Connections |
N female qty 2 |
|
Mounting Options |
Wall Mount Pole Mount Diameter 1” to 2.5” |
|
Environmental Conditions |
Operating temperature range: -20°C to +65° C Weather protection: IP67 per IEC 60529 |
|
Power Draw |
PoE Input Idle: 6.5W Typical: 7.5W Peak: 11W |
|
Performance and Capacity |
|
|
Physical Layer Modulation Data Rate |
2.4GHz 802.11b/g/n 300Mbps 5GHz 802.11a/n/ac 867Mbps |
|
Concurrent Stations |
Up to 500 capable per AP |
|
Simultaneous VoIP Clients |
Up to 30 |
