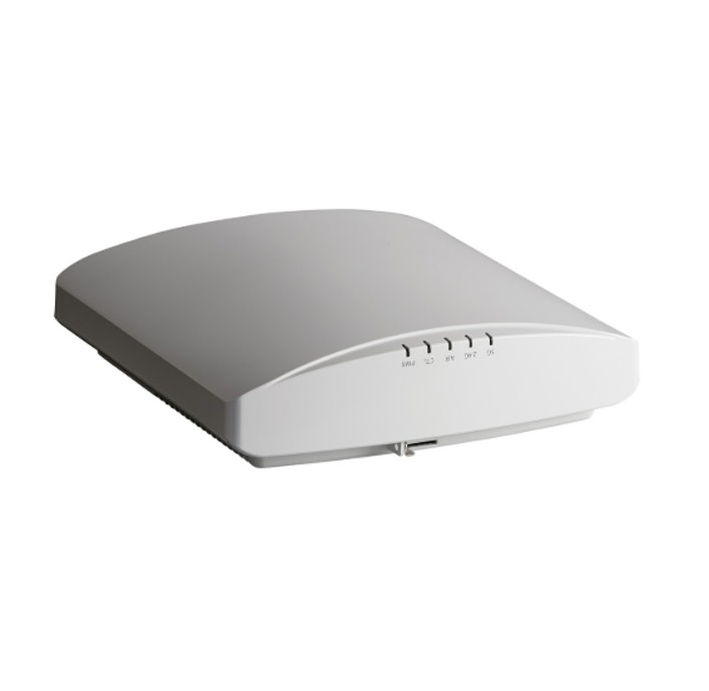

901-R850-WW00 Overview
Ruckus 901-R550-WW00 is a ZoneFlex R850 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, Ultra-High Density performance, 12 spatial streams, adaptive antennas, PoE support. Includes adjustable acoustic drop ceiling bracket. Two Ethernet ports with 1GbE and 5Gbe. Does not include power adaptor.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R850-WW00 |
|
Antenna Gain |
Up to 2 dBi |
|
Antenna Patterns, per band |
4000+ |
|
BeamFlex |
Yes |
|
ChannelFly |
Yes |
|
Concurrent Users |
1024 |
|
Controller Support |
Cloud | SmartZone | Standalone | ZD |
Product Details
Ruckus ZoneFlex R850 AP provides these features:
Connect More Devices Simultaneously
Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
Ultra High Density Performance
Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms with the Ruckus Ultra-High-Density Technology Suite.
Converged Access Point
Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies through the USB port.
Multigigabit Access Speeds
Optimized multi-gigabit Wi-Fi performance delivered using the built-in 2.5GbE port to connect to multigigabit switches.
Better Mesh Networking
Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks.
Multiple Management Options
Manage the R850 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
Enhanced Security
Enhanced securityThe latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.
More Than Wi-Fi
Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R850-WW00 |
||
|
Maximum PHY rate |
2400 Mbps (5GHz) 574 (2.4GHz) |
2400 Mb/s (5GHz) 1148 Mb/s (2.4GHz) |
1200 Mb/s (5GHz) 574 Mb/s (2.4GHz) |
|
Concurrent users |
512 |
1024 |
512 |
|
Radio chains: streams |
5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO |
8x8:8 SU-MIMO & MU-MIMO |
2x2:2 (5 GHz/2.4 GHz) |
|
Antenna patterns (per band) |
128 |
4000+ |
64 |
|
Antenna gain |
Up to 3dBi |
Up to 2 dBi |
Up to 3 dBi |
|
Ethernet ports |
1 x 1 GbE 1 x 2.5 GbE |
1 x 1 GbE | 1x 1/2.5/5 Gb/s |
2 x 1GbE |
Get More Information
Do you have any question about the WS-C4503-S2+48?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R850-WW00 Specification
901-R850-WW00 Specification |
|
|
Antenna Gain |
Up to 2 dBi |
|
Antenna Patterns, per band |
4000+ |
|
BeamFlex |
Yes |
|
ChannelFly |
Yes |
|
Concurrent Users |
1024 |
|
Controller Support |
Cloud | SmartZone | Standalone | ZD |
|
Ethernet Ports |
1 x 1 GbE | 1x 1/2.5/5 Gb/s |
|
IoT Ready |
Yes |
|
PD-MRC |
Yes |
|
PHY Rate at 2.4 GHz, maximum |
1148 Mb/s |
|
PHY Rate at 5 GHz, maximum |
2400 Mb/s |
|
Radio Chains: Streams |
8x8:8 SU-MIMO & MU-MIMO |
|
Rx Sensitivity at 2.4 GHz |
-91 dBm |
|
Rx Sensitivity at 5 GHz |
-91 dBm |
|
SmartMesh |
Yes |
|
USB |
USB 2.0 |
|
Venue Type |
Education | Hospitality | Public Venue | Transportation |
|
Venue Sub-Type |
Convention Floor | Lecture Hall | Library | Transit Stations | Venue Common Places |
|
Wi-Fi Interface Standard |
IEEE 802.11a/b/g/n/ac/ax |
|
Wi-Fi Interface Standard at 2.4 GHz |
802.11ax |
|
Wi-Fi Interface Standard at 5 GHz |
802.11ax |
