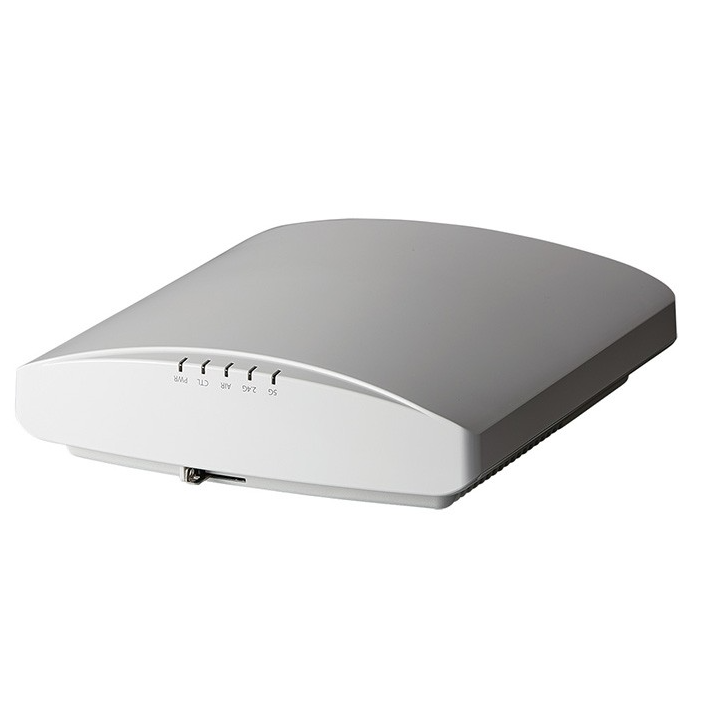

901-R730-WW00 Overview
Ruckus 901-R730-WW00 is a ZoneFlex R730 802.11 abgn/ac/ax indoor AP, supporting 2.4GHz (4x4:4) and 5GHz (8X8:8), OFDMA, MU-MIMO, multi-rate Gigabit interface 1X2.5G/5Gbps Ethernet interface, 1X10/100 /1000Mbps Ethernet port, PoH/uPoE/802.3at POE. Does not include power adapter and POE module.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R730-WW00 |
|
Feature/Description |
High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
|
Maximum PHY rate |
4800 Mbps (5GHz) 1148 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4 GHz, 5GHz) |
|
Concurrent users |
1024 |
|
Radio chains: streams |
8x8:8 |
|
Antenna patterns (per band) |
4,000+ |
Product Details
Ruckus ZoneFlex R730 AP provides these features:
Connect More Devices Simultaneously
Improve device performance, by enabling more simultaneous device connections with built-in 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
Ultra-High-Density Performance
Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the Ruckus Ultra-High-Density Technology Suite.
Enhanced Security
Upgrade to the latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.
Multi-Gigabit Access Speeds
Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches.
Better Mesh Networking
Minimize complexity by reducing expensive cabling with SmartMesh™ that dynamically creates self-forming, self-healing mesh networks.
Automate Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
More Than Wi-Fi
Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locating engine, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R730-WW00 |
|||
|
Feature/Description |
High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
|
Maximum PHY rate |
2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
4800 Mbps (5GHz) 1148 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ax (2.4 GHz, 5GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
1024 |
1024 |
512 |
512 |
|
Radio chains: streams |
4x4:4 |
8x8:8 |
4x4:4 |
4x4:4 SU-MIMO 4x4:3 MU-MIMO |
|
Antenna patterns (per band) |
4,000+ |
4,000+ |
4,000+ |
4,000+ |
Get More Information
Do you have any question about the 901-R730-WW00?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R730-WW00 Specification
901-R730-WW00 Specification |
|
|
Feature/Description |
High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
|
Maximum PHY rate |
4800 Mbps (5GHz) 1148 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4 GHz, 5GHz) |
|
Concurrent users |
1024 |
|
Radio chains: streams |
8x8:8 |
|
Antenna patterns (per band) |
4,000+ |
|
Antenna gain |
Up to 2dBi |
|
PD-MRC |
Yes |
|
Rx sensitivity (2.4/5GHz) |
-103/-101dBm |
|
ChannelFly |
Yes |
|
SmartMesh |
Yes |
|
USB (IoT Ready) |
Yes |
|
Ethernet ports |
1x 1/2.5/5 Gbps 1x 10/100/1000 Mbps |
|
Integrated BLE/ZigBee |
Yes |
|
WLAN Control and Management |
· ZoneDirector · SmartZone · RUCKUS Cloud |
