901-R710-WW00 Overview

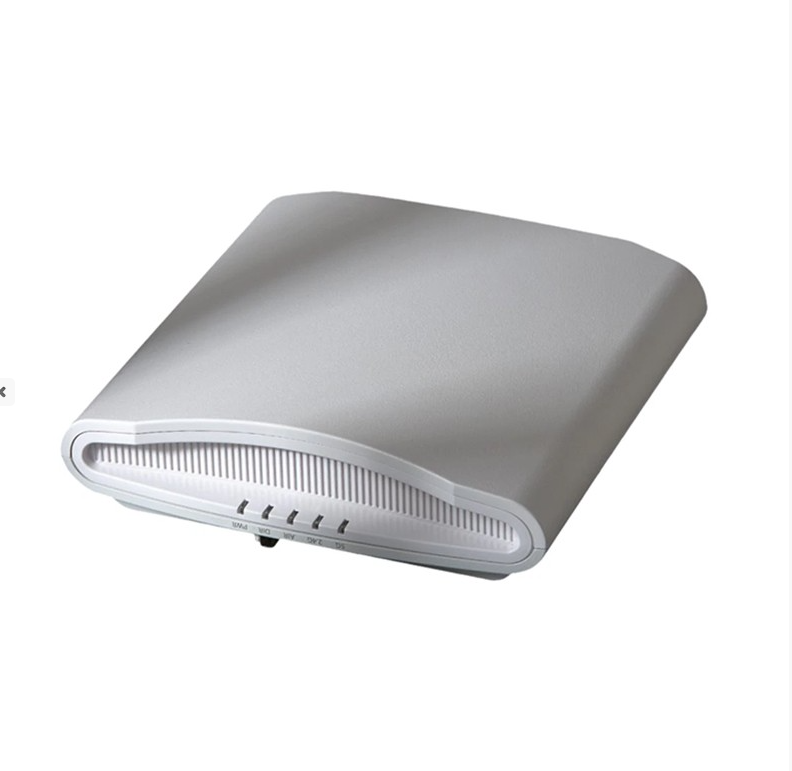

Ruckus 901-R710-WW00 is a ZoneFlex R710 802.11AC indoor AP, supporting 2.4GHz and 5GHz dual-band, 4X4:4, MU-MIMO, 2x10/100/1000Mbps Ethernet port, 802.3af/at POE, excluding power adapter and POE module.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R710-WW00 |
|
Feature/Description |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
|
Maximum PHY rate |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
512 |
|
Radio chains: streams |
4x4:4 SU-MIMO 4x4:3 MU-MIMO |
|
Antenna patterns (per band) |
4,000+ |
Product Details
Figure 1 shows the dimension of R710 AP.
Figure 2 shows the bottom of R710 AP.
Note:
|
① |
Integrated key holes for wall or ceiling mount (adjustable acoustic drop ceiling bracket included) |
|
② |
Pad-lock security latch |
|
③ |
Kensington Lock Eye |
|
④ |
Two 10/100/1000 Ethernet ports with 802.3af/at PoE |
|
⑤ |
Hidden Cables |
|
⑥ |
USB Port for BLE |
Figure 3 shows inside view of R710 AP.
Note:
|
① |
BeamFlex+ Adaptive Antenna Technology |
Ruckus ZoneFlex R710 AP provides these benefits:
Industry's Highest Performing 802.11ac Wave 2 Access Point
Transmit to multiple clients at the same time with MU-MIMO
More efficient use of the RF spectrum
Improve network efficiency & throughput even for non-Wave 2 clients
Better Reception and More Consistent Performance
Adaptive polarization diversity
Dual-polarized antennas
Enhanced DFS and Spectrum analysis capability
Reduced Wi-Fi Interference
Up to 15 dB of interference mitigation
Up to 50 percent reduction in co-channel interference to neighboring APs
Statistical, real-time capacity analysis of all channels to automatically select best performing channels
Ideal High-Performance Indoor Access Point
Fast and easy mounting to walls or ceilings
Smart Mesh to eliminate cost and time associated with cumbersome Ethernet drops
Power Efficient
Support for standard 802.3af (PoE) allows enterprises to use existing PoE switches without costly upgrades
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R710-WW00 |
|||
|
Feature/Description |
High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
|
Maximum PHY rate |
2400 Mbps (5GHz) 1148 Mbps (2.4GHz) |
4800 Mbps (5GHz) 1148 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ax (2.4 GHz, 5GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
1024 |
1024 |
512 |
512 |
|
Radio chains: streams |
4x4:4 |
8x8:8 |
4x4:4 |
4x4:4 SU-MIMO 4x4:3 MU-MIMO |
|
Antenna patterns (per band) |
4,000+ |
4,000+ |
4,000+ |
4,000+ |
Get More Information
Do you have any question about the 901-R710-WW00?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R710-WW00 Specification
901-R710-WW00 Specification |
|
|
Feature/Description |
High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
|
Maximum PHY rate |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
512 |
|
Radio chains: streams |
4x4:4 SU-MIMO 4x4:3 MU-MIMO |
|
Antenna patterns (per band) |
4,000+ |
|
Antenna gain |
Up to 3dBi |
|
PD-MRC |
Yes |
|
Rx sensitivity (2.4/5GHz) |
-104dBm |
|
ChannelFly |
Yes |
|
SmartMesh |
Yes |
|
USB (IoT Ready) |
Yes |
|
Ethernet ports |
2 x 1GbE |
|
Integrated BLE/ZigBee |
— |
|
WLAN Control and Management |
· ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
