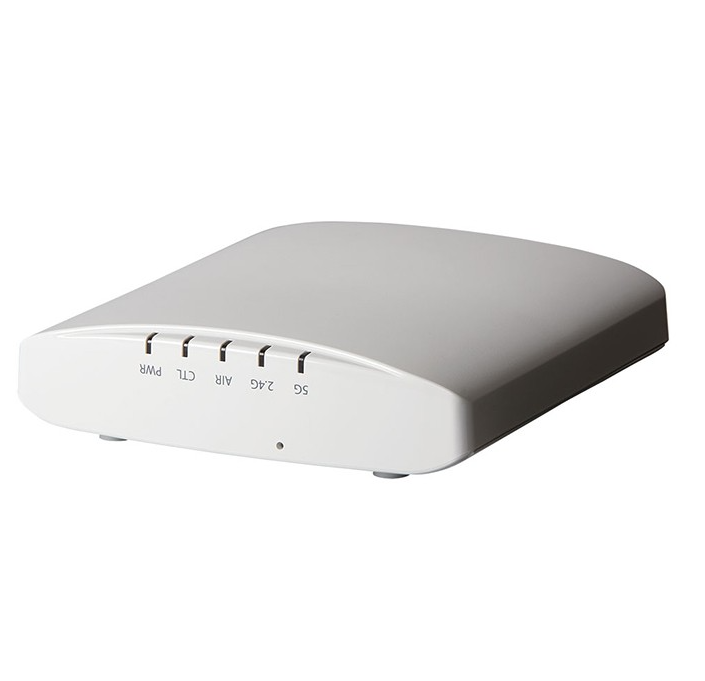

901-R320-WW02 Overview
Ruckus 901-R320-WW02 is a ZoneFlex R320 802.11AC Wave2 MU-MIMO indoor AP, 2*2:2, supports 2.4GHz and 5GHz dual carrier frequency, 1 Ethernet port, 802.3af/at POE power input and 12VDC power supply, without 12VDC power module.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R320-WW02 |
|
Feature/Description |
Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
256 |
|
Radio chains: streams |
2x2:2 |
|
Antenna patterns (per band) |
64 |
Product Details
Ruckus ZoneFlex R320 AP provides these features:
Affordable Enterprise Performance
The R320 provides great performance with extended range at an affordable price.
Keep Existing Switches and Cables
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly upgrades.
Multiple Management Options
Manage the R320 from the cloud, with on-premises physical/virtual appliances, or without a controller.
Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex adaptive antenna technology while mitigating interference by utilizing 64 directional antenna patterns.
Get Optimal Throughput
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R320-WW02 |
||||
|
Feature/Description |
Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ |
Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ |
Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ |
Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex |
Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
2400 Mbps (5GHz) 574 (2.4GHz) |
1300 Mbps (5GHz) 450 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
512 |
512 |
512 |
256 |
100 |
|
Radio chains: streams |
5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO |
3x3:3 |
2x2:2 |
2x2:2 |
2x2:2 |
|
Antenna patterns (per band) |
128 |
512 |
64 |
64 |
64 |
|
Antenna gain |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
|
Ethernet ports |
1 x 1 GbE 1 x 2.5 GbE |
2 x 1GbE |
2 x 1GbE |
1 x 1GbE |
1 x 1GbE |
Get More Information
Do you have any question about the 901-R320-WW02?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R320-WW02 Specification
901-R320-WW02 Specification |
|
|
Feature/Description |
Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
256 |
|
Radio chains: streams |
2x2:2 |
|
Antenna patterns (per band) |
64 |
|
Antenna gain |
Up to 3dBi |
|
PD-MRC |
— |
|
Rx sensitivity (2.4/5GHz) |
-101dBm |
|
ChannelFly |
Yes |
|
SmartMesh |
— |
|
USB (IoT Ready) |
— |
|
Ethernet ports |
1 x 1 GbE |
|
Integrated BLE/ZigBee |
— |
|
WLAN Control and Management |
· ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
