901-R310-WW02 Overview

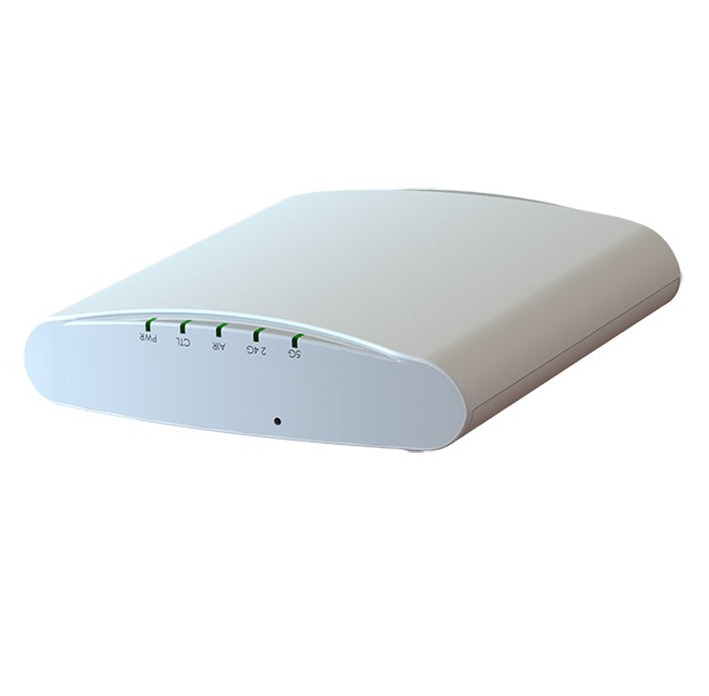

Ruckus 901-R310-WW02 is a ZoneFlex R310 802.11ac indoor AP, support 2.4GHz and 5GHz dual carrier frequency, 1x10/100/1000Mbps Ethernet port, 802.3af POE, 2*2:2, up to 867Mbps+300Mbps, BeamFlex, without 12VDC power supply and POE module.
Quick Spec
Table 1 shows the quick spec.
|
Model |
901-R310-WW02 |
|
Feature/Description |
Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
100 |
|
Radio chains: streams |
2x2:2 |
|
Antenna patterns (per band) |
64 |
Product Details
Ruckus ZoneFlex R310 AP provides these features:
Industry’s lowest cost enterprise class 802.11ac solution
Unprecedented performance with extended range at the industry’s most affordable price point
Extended range requires fewer APs
Adaptive antenna technology delivers a 2x to 4x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area
Sleek, low profile enclosure for ease-of-deployment
Aesthetically-pleasing design fits almost anywhere. Powerful 802.11ac technology that literally fits in the palm of your hand for easy deployment
Channel selection optimizes throughput
ChannelFly dynamically chooses the best channel, giving users the highest possible throughput even in highly congested environments
Intuitive configuration and management
The industry’s simplest configuration and management through a Web-based wizard and automated deployment capabilities
Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
901-R310-WW02 |
||||
|
Feature/Description |
Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ |
Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ |
Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ |
Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex |
Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
2400 Mbps (5GHz) 574 (2.4GHz) |
1300 Mbps (5GHz) 450 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
512 |
512 |
512 |
256 |
100 |
|
Radio chains: streams |
5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO |
3x3:3 |
2x2:2 |
2x2:2 |
2x2:2 |
|
Antenna patterns (per band) |
128 |
512 |
64 |
64 |
64 |
|
Antenna gain |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
Up to 3dBi |
|
Ethernet ports |
1 x 1 GbE 1 x 2.5 GbE |
2 x 1GbE |
2 x 1GbE |
1 x 1GbE |
1 x 1GbE |
Get More Information
Do you have any question about the 901-R310-WW02?
Contact us now via Live Chat or info@falcon-atlantic.net
901-R310-WW02 Specification
901-R310-WW02 Specification |
|
|
Feature/Description |
Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex |
|
Maximum PHY rate |
867 Mbps (5GHz) 300 Mbps (2.4GHz) |
|
Wi-Fi technology |
802.11ac (5GHz) 802.11n (2.4GHz) |
|
Concurrent users |
100 |
|
Radio chains: streams |
2x2:2 |
|
Antenna patterns (per band) |
64 |
|
Antenna gain |
Up to 3dBi |
|
PD-MRC |
— |
|
Rx sensitivity (2.4/5GHz) |
-99dBm |
|
ChannelFly |
Yes |
|
SmartMesh |
— |
|
USB (IoT Ready) |
— |
|
Ethernet ports |
1 x 1 GbE |
|
Integrated BLE/ZigBee |
— |
|
WLAN Control and Management |
· ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
