901-P300-WW02 Overview

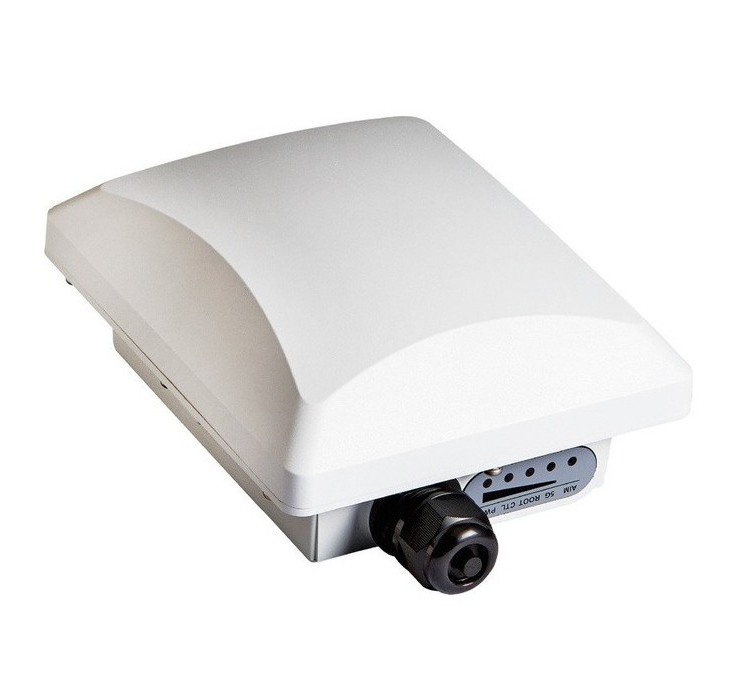

The Ruckus P300 is an outdoor point-to-point and point-to-multi point bridge that unleashes the promise of 5GHz 802.11ac, delivering unparalleled throughput. Backhaul throughput of over 500 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.
Quick Specs
Table1 shows the Quick Specs.
|
SKU |
901-P300-WW02 |
|
PHY Rate at 5 GHz, maximum |
867 Mb/s |
|
Radio Chains and Streams |
2x2:2 |
|
Rx Sensitivity at 5 GHz |
-96 dBm |
|
SmartMesh |
No |
|
Wi-Fi Interface Standard |
IEEE 802.11a/n/ac |
|
Wi-Fi Interface Standard at 5 GHz |
802.11ac |
|
PHY Rate at 5 GHz, maximum |
867 Mb/s |
Product Details
RUCKUS -901-P300-WW02 has these key features:
①Wire-like throughput over the air
Based on the 802.11ac standard, the ZoneFlex P300 supports RF capacity up to 867 Mbps. With Ruckus purpose-built directional antenna, the ZoneFlex P300 supports throughputs up to 500 Mbps and offers performance up to 100 Mbps at 8 km (LoS).
②Easy installation and pairing
ZoneFlex P300 enables installers to deploy wireless bridges effortlessly. Lightweight and designed with simple and flexible mounting options.
③Simple positioning and aiming
Precision aiming and optimized performance with 30-degree beam width antenna and sophisticated LED-based aiming software. ZoneFlex P300 proactively finds and selects the best performing channel automatically using Ruckus’ patented ChannelFly channel selection algorithms.
④Secure and scalable
The wireless bridge link is AES secure and can scale to support multiple networks segmented by VLANs.
⑤10X scalability with wireless multi-node bridging
Each root bridge capable of supporting up to 10 receiving bridges.
⑥Unmatched ROI
The wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The ZoneFlex P300 is also an ideal option for backhauling small cell cellular networks.
⑦Environmentally-friendly design
The internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
901-P300-WW02 |
|
|
Antenna Gain (max) |
- |
Omni: Up to 3dBi 120 Sector: Up to 8dBi |
|
Ethernet Ports |
1 x 1GbE |
2 x 1GbE |
|
867 Mbps (5GHz) |
867 Mbps (5GHz) |
1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
|
Rx sensitivity (2.4/5GHz) |
-96dBm |
-104dBm |
|
USB (IoT Ready) |
Yes |
- |
Get More Information
Do you have any question about the 901-P300-WW02?
Contact us now via Live Chat or info@falcon-atlantic.net
901-P300-WW02 Specification
Ruckus P300 Specification |
|
|
WI-FI |
|
|
Wi-Fi Standards |
IEEE 802.11a/n/ac 5GHz operation |
|
Supported Rates |
802.11ac: 6.5 to 1167Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS15) 802.11a: 54, 48, 36, 24, 18, 12, 9, 6Mbps |
|
Modulation |
OFDM |
|
Radio Chains |
2x2 |
|
Spatial Streams |
2 |
|
Radio Chains and Streams |
2x2:2 |
|
RF Power Output |
22 dBm |
|
Channelization |
20, 40, 80MHz |
|
Frequency Band |
IEEE 802.11ac: 5.15 – 5.875GHz |
|
Security |
WPA2 AES |
|
Certifications |
U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, and Taiwan WEEE/RoHS compliance |
|
RF |
|
|
Maximum EIRP |
Up to 36dBm |
|
Physical Antenna Gain |
Up to 14dBi |
|
Minimum RX Sensitivity |
Up to -96dBm |
|
PERFORMANCE AND CAPACITY |
|
|
Peak PHY Rates |
5GHz: 867Mbps |
|
Target UDP Throughput |
Up to 500Mbps Up to 250Mbps at 2.6 km/1.6 mi |
|
Maximum Link Distance |
12 kilometers |
|
Point-to-Multipoint |
30 degrees of coverage from the one root bridge with internal antenna to many receiving bridges 120 degrees of coverage when used with optional external antenna |
|
Client Capacity |
1-8 Client Bridges |
|
PHYSICAL CHARACTERISTICS |
|
|
Power |
802.3af Power over Ethernet |
|
Physical Size |
18 cm (L), 15 cm (W), 8.6 cm (H) 7” (L), 5.9” (W), 3.4” (H) |
|
Ethernet Ports |
1 port, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45 Power over Ethernet (802.3af) |
|
Antenna |
14 dBi internal directional antenna 30 degree 3dB beamwidth Two external N-Type antenna connectors |
|
Lock Options |
Pad-Eye for locking devices |
|
Environmental Conditions |
IP-67 rated |
|
Operating Temperature |
-40°C to 65°C (-40°F to 149°F) |
|
Power Draw |
Quiescent 6.5W Typical 7.5W Peak 11W |
